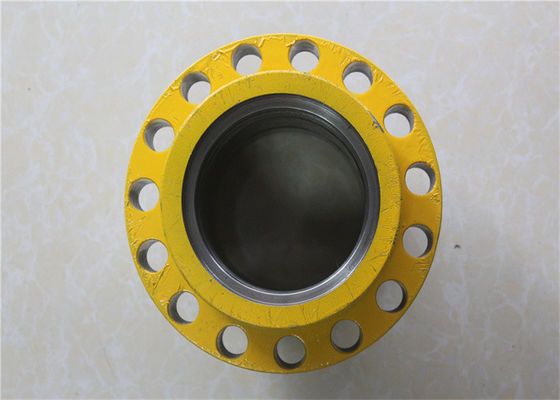

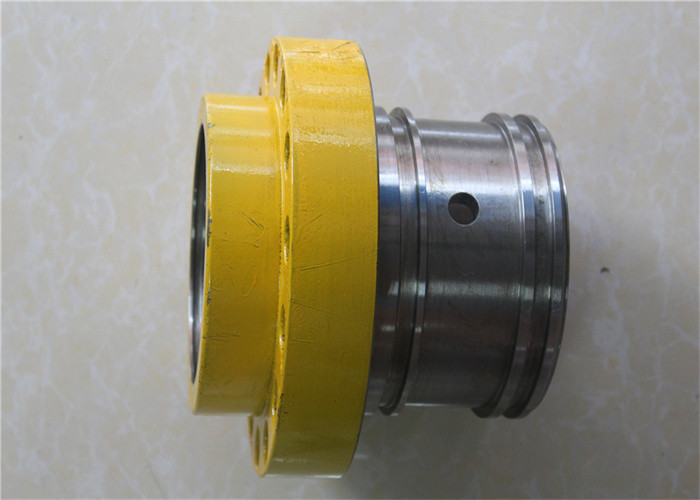

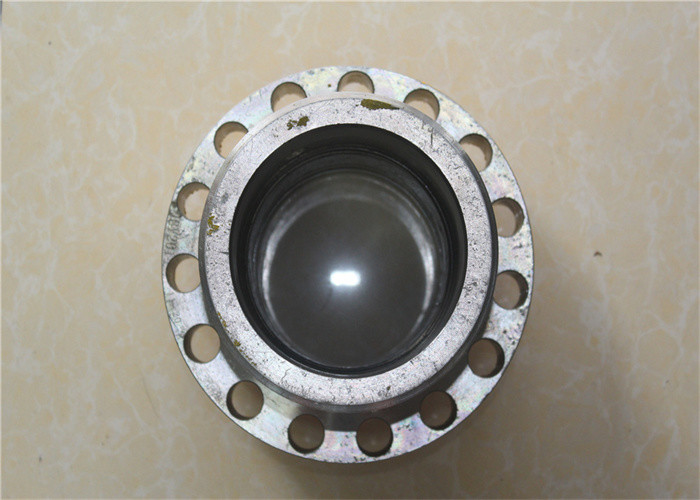

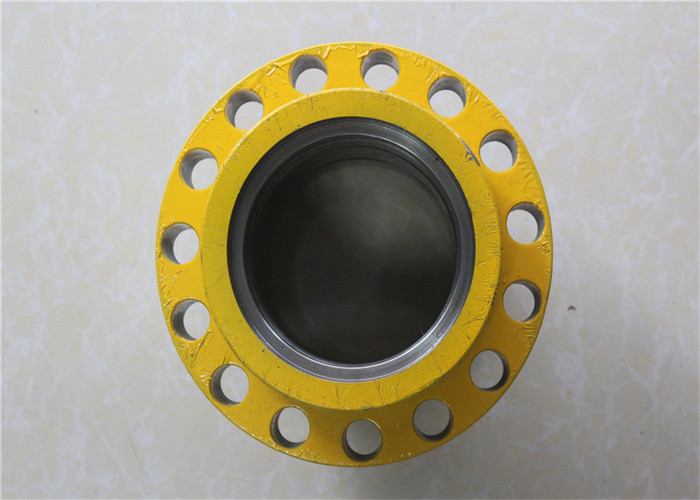

Belparts R305LC-7 31Y1-27170 Bucket Cylinder Piston Excavator Spare Parts
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Part Name | Bucket Cylinder Pistion | Model | R305LC-7 |
|---|---|---|---|
| Part Number | 31Y1-27170 | Packing | Carbon |
| Type | Crawler Excavator | Warranty | 6 Months |
| Highlight | 31Y1-27170 Bucket Cylinder Piston,R305LC-7 Bucket Cylinder Piston |
||
Product Description
Belparts R305LC-7 31Y1-27170 Bucket Cylinder Piston Excavator Spare Parts
Specifiion
R305LC-7 31Y1-27170 Bucket Cylinder Piston for Excavator
| Name | Bucket Cylinder Piston |
| Type | Crawler Excavator |
| Model | R305LC-7 |
| Part Number | 31Y1-27170 |
| Color | Yellow |
| Packing | Carbon |
| Package | As Required |
| After-sales service | Negotiable |
| Condition | 100% New |
| Stock Condition | In Stock |
| egory Group | Hydraulic Spare Parts |
| Features |
The cylinder liners are made of cold drawn seamless steel tubes with strong honing technique. The cylinder length can reach up to 7m with diameters from φ40 to φ500. The piston rods are made of chrome steel with special heat treatment. The surface which makes it high in smooth finish with tough inside and hard outside. The quality of our cylinders is guaranteed by the test of high-pressure. |
| Related Products |
1.boom cylinder 2.boom cylinder seal kit 3.arm cylinder 4.arm cylinder seal kit 5.bucket cylinder seal kit …… |
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | 31N8-60115 | CYLINDER ASS'Y | 1 | |
| *-1 | 31Y1-15405 | BUCKET CYL SUB ASSY WITHOUT PIPE |
1 | |
| 1 | 31Y1-15415 | TUBE ASSY | 1 | |
| 2 | 31Y1-15465 | ROD ASSY | 1 | |
| 3 | 31Y1-15495 | GLAND | 1 | |
| 4 | S732-095040 | BUSHING-DD2 | 1 | |
| 5 | Y191-102000 | RING-SNAP | 1 | |
| K6 | Y220-095011 | SEAL-ROD | 1 | |
| K7 | Y180-095020 | RING-BACK UP | 1 | |
| K8 | Y240-095013 | RING-BUFFER | 1 | |
| K9 | Y110-095011 | WIPER-DUST | 1 | |
| 10 | Y190-109000 | RING-SNAP | 1 | |
| K11 | S631-130004 | O-RING | 1 | |
| K12 | 31YC-BP130 | RING-BACK UP | 1 | |
| 13 | 31YC-26080 | RING-CUSHION | 1 | |
| 14 | 31Y1-27170 | PISTOM | 1 | |
| K15 | Y420-140000 | SEAL-PISTON | 1 | |
| K16 | Y310-140000 | RING-WEAR | 2 | |
| K17 | Y440-140000 | RING-DUST | 2 | |
| K18 | S632-070004 | O-RING | 1 | |
| K19 | S642-070003 | RING-BACK UP | 2 | |
| 20 | 31YC-64050 | NUT-LOCK | 1 | |
| 21 | S114-100164 | SCREW-SET,HEX SOC HDLESS | 1 | |
| 22 | S109-180904 | BOLT-SOCKET | 12 | |
| 23 | 31YC-11140 | BUSHING-PIN | 1 | |
| 24 | 31YC-11150 | BUSHING-PIN | 1 | |
| 25 | Y000-080200 | SEAL-DUST | 2 | |
| 26 | Y000-090000 | SEAL-DUST | 2 | |
| 27 | 31Y1-15505 | BAND ASSY | 2 | |
| 27-1 | 31Y1-15515 | BAND SUB ASSY | 1 | |
| 27-2 | 31YC-31210 | BAND | 1 | |
| 27-3 | S015-120452 | BOLT-HEX | 2 | |
| 27-4 | S411-120002 | WASHER-SPRING | 2 | |
| 27-5 | S071-023430 | U-BOLT | 1 | |
| 27-6 | S201-101002 | NUT-HEXAGON HEAD | 2 | |
| 27-7 | S411-100002 | WASHER-SPRING | 2 | |
| 28 | 31Y1-15525 | PIPE ASSY-R | 1 | |
| 29 | 31Y1-15535 | PIPE ASSY-B | 1 | |
| K30 | Y171-024004 | O-RING(AN ??) | 2 | |
| 31 | S107-120554 | BOLT-SOCKET | 4 | |
| K | 31Y1-15545 | SEAL KIT SEE ILLUST |
1 |
Advantages
Strong part number database.
If you can provide the right model and part number, we can supply the right product.
Professional and experienced salesperson.
Our founder has been into this field for more than 6 years, with rich experiences.
Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
Good management system.
No matter how big or small order, as long as customers place the order, we will provide exporting services free of charge.
Good service attitude.
As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.
FAQ
What is the warranty time of the products?
The warranty time is 3/6 months based on the item details; we don't provide warranty time for original and used products.
What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, the delivery time will becommunied in advance, usually 3-7 days.
What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel motor, swing motor, travel gearbox, swing gearbox, gear parts, hydraulic pump, hydraulic parts, etc. If you need other excavator parts, we also can supply as your requirements.
How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
How do I pay?
You can pay by T/T, PayPal (for small amount) and trade assurance.
