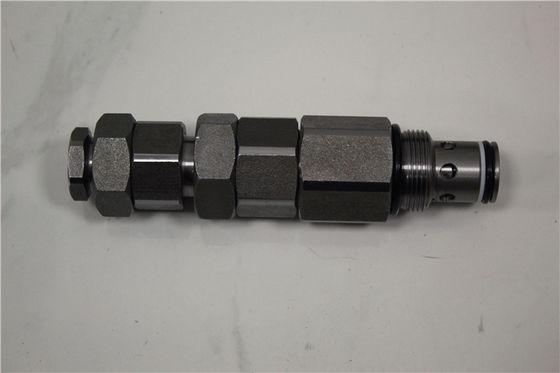

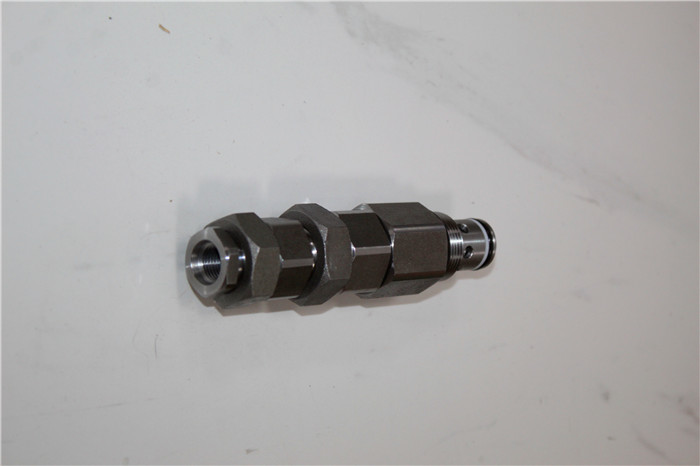

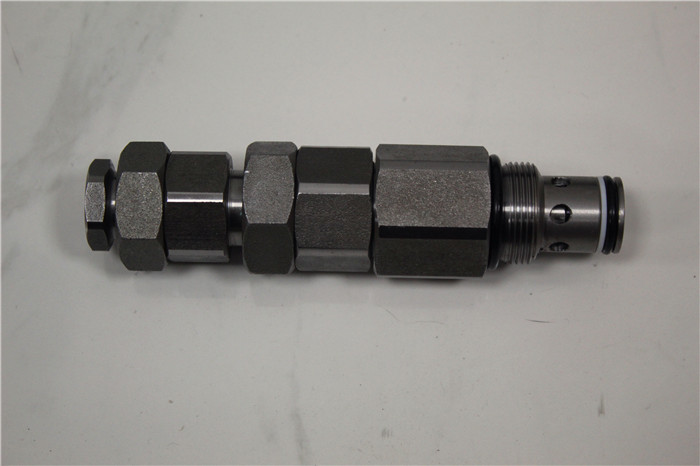

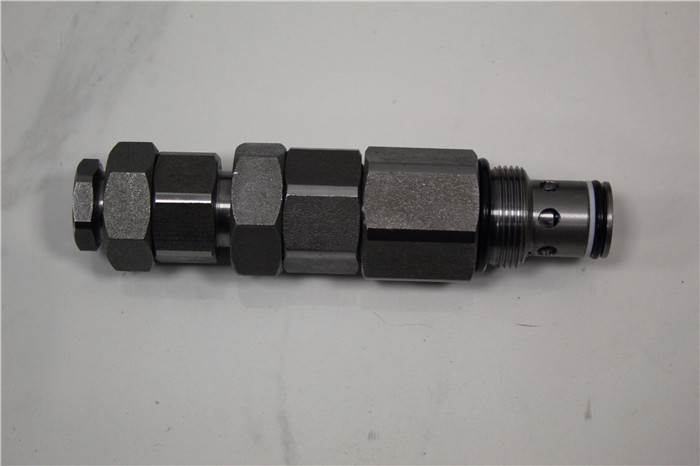

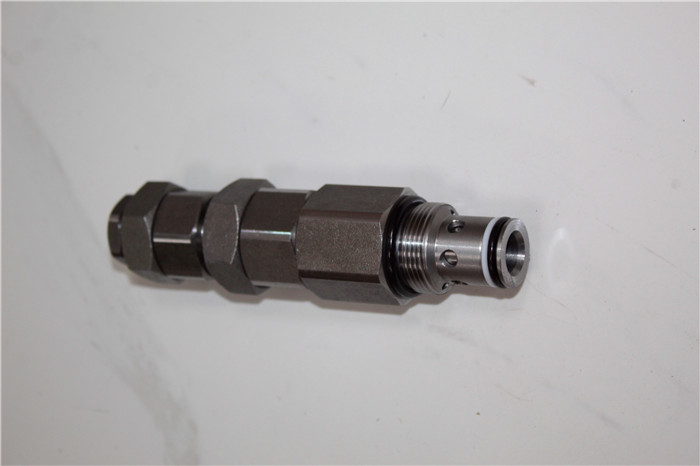

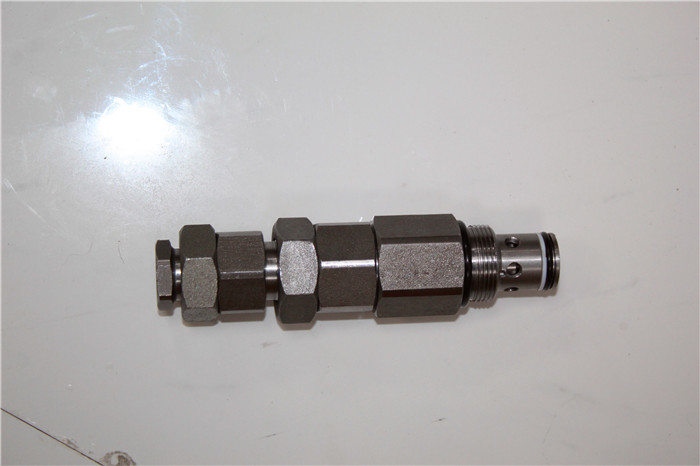

EC200B EC210B EC240B EC290B EC290C MCV 14543998 Hydraulic Excavator Relief Valve
Product description
| Appliion | Crawler excavator |
| Part name | Main relief valve |
| Part number | 14543998 |
| Machine model | EC200B EC210B EC240B EC290B EC290C |
| Quality | Chinese quality |
| Warranty | 3 months |
| MOQ | 1 PCS |
| Condition | New |
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14540314 | [1] | Control valve | ||
| 1. | SA7270-11161 | [1] | Valve | |
| 2. | SA7273-10621 | [1] | Spring | |
| 3. | SA7273-10050 | [1] | Plunger | |
| 4. | SA7273-10090 | [1] | Poppet | |
| 5. | SA7273-10170 | [1] | Poppet | |
| 6. | SA7273-10210 | [1] | Sleeve | |
| 7. | SA7273-10240 | [1] | Sleeve | |
| 8. | SA7273-10490 | [1] | Spring | |
| 9. | SA7273-10580 | [1] | Spring | |
| 10. | SA7273-10030 | [1] | Control plunger | |
| 11. | SA7273-10780 | [2] | Ring | |
| 12. | VOE983525 | [1] | O-ring | |
| 13. | VOE990740 | [2] | O-ring | |
| 14. | VOE990545 | [1] | O-ring | |
| 15. | SA7270-30160 | [2] | Valve | |
| 16. | VOE993323 | [1] | O-ring | |
| 17. | VOE14880816 | [1] | Back-up ring | |
| 18. | VOE983507 | [1] | O-ring | |
| 19. | SA7273-30540 | [1] | Ring | |
| 20. | VOE983542 | [1] | O-ring | |
| 21. | SA7273-30620 | [1] | Spring | |
| 22. | VOE983543 | [1] | O-ring | |
| 23. | SA7273-30610 | [1] | Spring | |
| 24. | VOE983540 | [1] | O-ring | |
| 25. | SA9023-10803 | [1] | Set screw | |
| 26. | VOE983303 | [1] | Hexagon nut | |
| 27. | SA7270-11060 | [1] | Valve | |
| 28. | SA7273-10560 | [1] | Spring | |
| 29. | SA7273-10380 | [1] | Cap | |
| 30. | SA7273-10140 | [1] | Valve | |
| 31. | VOE14880815 | [1] | Back-up ring | |
| 32. | VOE983503 | [1] | O-ring | |
| 33. | VOE14514691 | [1] | Valve | |
| 34. | SA7273-10400 | [1] | Cap | |
| 35. | SA7273-10450 | [1] | Cap | |
| 36. | SA7273-10510 | [1] | Spring | |
| 37. | VOE14514674 | [1] | Piston | |
| 38. | SA7273-10030 | [1] | Control plunger | |
| 39. | SA7273-10130 | [1] | Peg | |
| 40. | SA7273-10630 | [1] | Spring | |
| 41. | VOE983510 | [1] | O-ring | |
| 42. | VOE990557 | [1] | O-ring | |
| 43. | VOE14513267 | [1] | Relief valve | |
| 44. | VOE990736 | [1] | O-ring | |
| 45. | SA7273-30490 | [1] | Spring | |
| 46. | SA7273-30500 | [1] | Spring | |
| 47. | SA9114-32000 | [1] | Lock nut | |
| 48. | VOE993322 | [1] | O-ring | |
| 49. | VOE983510 | [1] | O-ring | |
| 50. | VOE983502 | [1] | O-ring | |
| 51. | VOE14543998 | [1] | Relief valve | |
| 52. | VOE993323 | [1] | O-ring | |
| 53. | VOE14880816 | [1] | Back-up ring | |
| 54. | VOE983507 | [1] | O-ring | |
| 55. | SA7273-30540 | [1] | Ring | |
| 56. | VOE983542 | [1] | O-ring | |
| 57. | VOE983543 | [1] | O-ring | |
| 58. | VOE990556 | [1] | O-ring | |
| 59. | VOE983540 | [2] | O-ring | |
| 60. | VOE984778 | [1] | O-ring | |
| 61. | SA7273-10751 | [1] | Cap | |
| 62. | VOE983502 | [1] | O-ring | |
| 100. | VOE14560528 | [1] | Sealing Kit |
