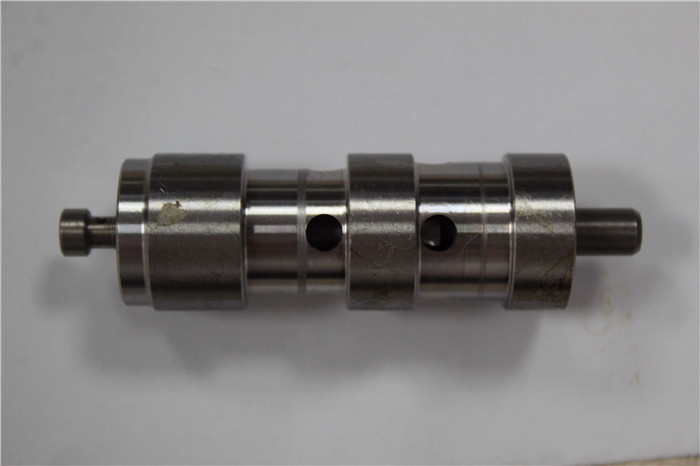

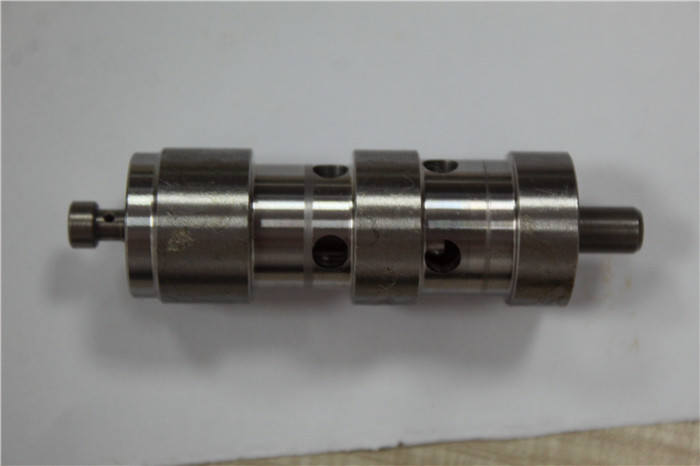

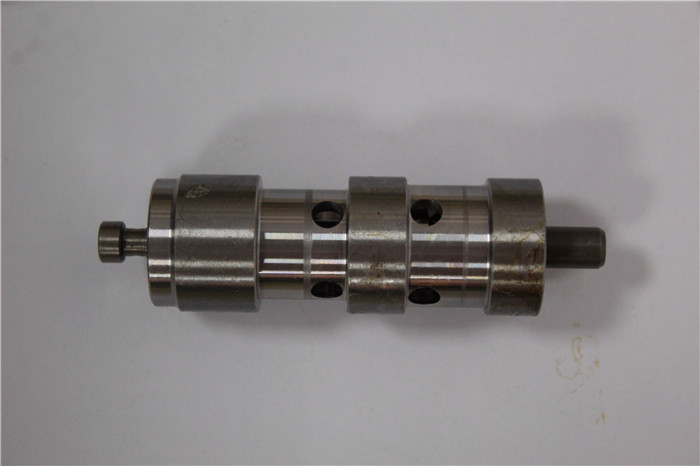

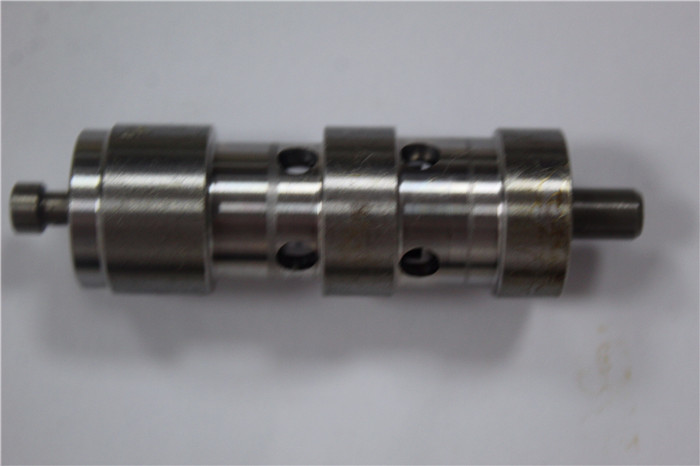

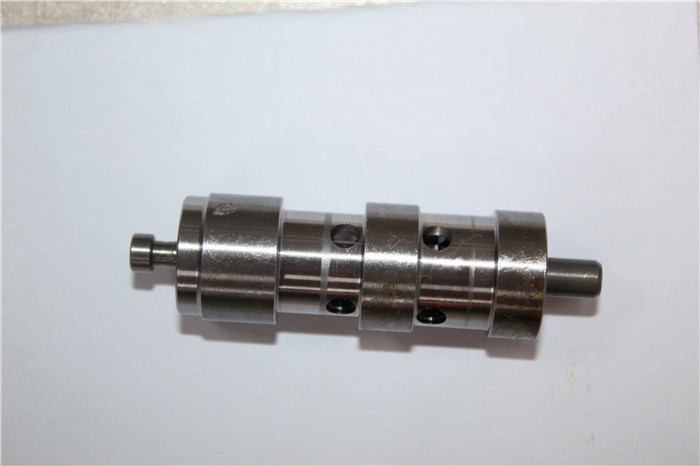

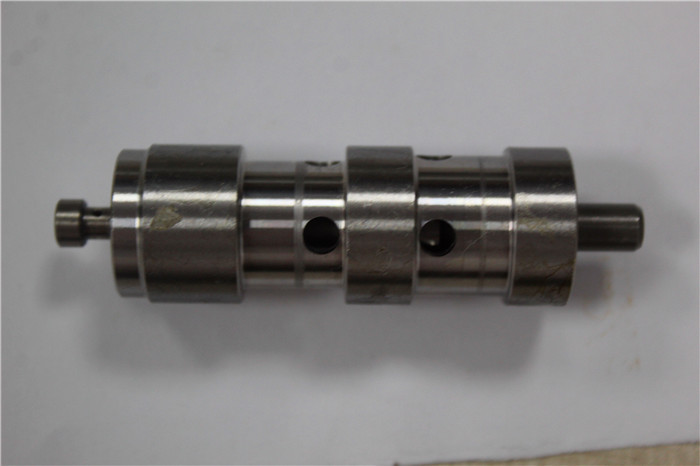

EX200-2 EX220-2 Main Control Valve 4335200 Spool Excavator Relief Valve
Product description
| Appliion | Crawler excavator |
| Part name | Main relief valve |
| Part number | 4335200 |
| Machine model | EX200-2 EX220-2 |
| Quality | Chinese quality |
| Warranty | 3 months |
| MOQ | 1 PCS |
| Condition | New |
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 4322812 | [1] | VALVE;CONTROL (1/6) | ||
| 2. | +++++++ | [1] | SPOOL ASS'Y | |
| 2A. | 0413501 | [1] | END | |
| 2B. | 0353204 | [2] | SEAT;SPRING | |
| 2C. | 0413502 | [1] | SPRING | |
| 2D. | 0413503 | [1] | SPRING | |
| 3. | +++++++ | [1] | SPOOL ASS'Y | |
| 3A. | 0413501 | [1] | END | |
| 3B. | 0353204 | [2] | SEAT;SPRING | |
| 3C. | 0413502 | [1] | SPRING | |
| 3D. | 0413503 | [1] | SPRING | |
| 4. | +++++++ | [1] | SPOOL ASS'Y | |
| 4A. | 0413501 | [1] | END | |
| 4B. | 0353204 | [2] | SEAT;SPRING | |
| 4C. | 0413502 | [1] | SPRING | |
| 4D. | 0413503 | [1] | SPRING | |
| 10. | 0413504 | [1] | PLUG ASS'Y | |
| 10A. | 4506408 | [1] | O-RING | |
| 11. | 0413505 | [4] | SPACER | |
| 16. | 4289602 | [1] | VALVE;RELIEF ASS'Y | |
| 16A. | 0111809 | [1] | O-RING | |
| 50. | 0413506 | [1] | POPPET | |
| 51. | 0413507 | [1] | SPRING | |
| 52. | 0413508 | [1] | PISTON | |
| 53. | +++++++ | [1] | SLEEVE | |
| 54. | +++++++ | [1] | SPOOL | |
| 55. | 0413509 | [1] | SEAT;SPRING | |
| 56. | 0413510 | [1] | SPRING | |
| 57. | +++++++ | [1] | SPOOL ASS'Y | |
| 57A. | 0413504 | [1] | PLUG ASS'Y | |
| 57A1. | 4506408 | [1] | O-RING | |
| 57B. | 0413501 | [1] | END | |
| 57C. | 0353204 | [2] | SEAT;SPRING | |
| 57D. | 0413502 | [1] | SPRING | |
| 57E. | 0413503 | [1] | SPRING | |
| 62. | 0413511 | [11] | BOLT;SOCKET | |
| 65. | 4335200 | [1] | SPOOL ASS'Y | |
| 101. | 0413512 | [1] | CAP | |
| 102. | 0413513 | [1] | PLUG | |
| 103. | 4506429 | [1] | O-RING | |
| 104. | 0413514 | [1] | ADJUSTER | |
| 105. | 4509180 | [1] | O-RING | |
| 106. | 0413515 | [1] | NUT | |
| 107. | 0413516 | [1] | CAP | |
| 108. | 94-2010 | [1] | PLUG | |
| 109. | A810050 | [4] | O-RING | |
| 110. | 4506420 | [2] | O-RING | |
| 111. | 0413517 | [1] | CAP | |
| 112. | 0413513 | [1] | PLUG | |
| 113. | 4506429 | [1] | O-RING | |
| 114. | 0413514 | [1] | ADJUSTER | |
| 115. | 4509180 | [1] | O-RING | |
| 116. | 0413515 | [1] | NUT | |
| 117. | 0413516 | [1] | CAP | |
| 118. | A810040 | [4] | O-RING | |
| 125. | 0413518 | [2] | PLUG ASS'Y | |
| 125A. | 4509180 | [1] | O-RING |
