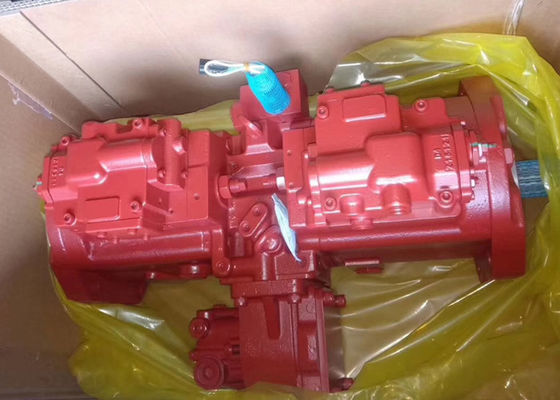

hydraulic pump k3v180dt K3V180 31N9-10010-11 31NA-10020 R375-7 K3V180 31N9-10010-11 31NA-10020 hydraulic pump
Product Description
| Part name | Crawler Excavator Parts |
| Brand | Belparts |
| Condition | New/RENEW/OEM |
| Packaging | Standard exporting wooden box/Carton |
| Shippping | By sea,air,express(DHL,Fedex,TNT,UPS,EMS) |
| Payment | T/T,Western Union |
| MOQ | 1 Pieces |
Buy Hyundai HCE MAIN PUMP 31NA-10020 genuine, new aftermarket tractor parts with delivery
7-SERIES CRAWLER EXCAVATOR R370LC7 Hyundai
Hyundai HCE parts alog
R370LC-7
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. |
31NA-10020 |
[1] |
MAIN PUMP |
TYPE 1 |
|
*. |
31NA-10021 |
[1] |
MAIN PUMP |
TYPE 2 |
|
*-1. |
@ |
[1] |
MAIN PUMP UNIT |
|
|
111. |
XJBN-00998 |
[1] |
SHAFT(F)-DRIVE |
|
|
113. |
XJBN-00999 |
[1] |
SHAFT(R)-DRIVE |
|
|
114. |
XJBN-01000 |
[1] |
GEAR(1) |
|
|
123. |
XJBN-00571 |
[2] |
BEARING-ROLLER |
|
|
124. |
XJBN-00978 |
[2] |
BEARING-NEEDLE |
|
|
127. |
XJBN-00019 |
[3] |
SPACER-BEARING |
|
|
NS141. |
XJBN-00567 |
[2] |
BLOCK-CYLINDER |
|
|
NS151. |
XJBN-00566 |
[18] |
PISTON |
|
|
NS151. |
XJBN-00681 |
[18] |
PISTON |
TYPE 2 |
|
NS152. |
XJBN-00005 |
[18] |
SHOE |
|
|
NS152. |
XJBN-01385 |
[18] |
SHOE |
TYPE 2 |
|
153. |
XJBN-00020 |
[2] |
PLATE-SET |
|
|
156. |
XJBN-00564 |
[2] |
BUSHING-SPHERICAL |
|
|
157. |
XJBN-00541 |
[18] |
SPRING-CYLINDER |
|
|
211. |
XJBN-00023 |
[2] |
PLATE-SHOE |
|
|
S212. |
XJBN-00012 |
[2] |
PLATE-SWASH |
|
|
S214. |
XJBN-00013 |
[2] |
BUSHING-TILTING |
|
|
251. |
XJBN-00560 |
[2] |
SUPPORT-S.P. |
|
|
261. |
XJBN-00025 |
[1] |
COVER(FR)-SEAL |
|
|
263. |
XJBN-00979 |
[1] |
COVER(RR)-SEAL |
|
|
271. |
XJBN-00026 |
[2] |
CASING-PUMP |
|
|
271. |
XJBN-01386 |
[2] |
CASING-PUMP |
TYPE 2 |
|
312. |
XJBN-01001 |
[1] |
BLOCK-VALVE |
|
|
S313. |
XJBN-00557 |
[1] |
PLATE-VALVE(R) |
|
|
S314. |
XJBN-00556 |
[1] |
PLATE-VALVE(L) |
|
|
401. |
XJBN-00028 |
[8] |
SCREW |
|
|
406. |
XJBN-00355 |
[8] |
SCREW |
|
|
466. |
XJBN-00356 |
[2] |
PLUG |
|
|
468. |
XJBN-00357 |
[4] |
PLUG |
|
|
490. |
XJBN-00032 |
[27] |
PLUG |
|
|
492. |
XJBN-00234 |
[12] |
PLUG |
|
|
NS531. |
XJBN-00369 |
[2] |
PIN-TILTING |
|
|
532. |
XJBN-00033 |
[2] |
PISTON-SERVO |
|
|
534. |
XJBN-00034 |
[2] |
STOPPER(L) |
|
|
535. |
XJBN-00035 |
[2] |
STOPPER(S) |
|
|
NS541. |
XJBN-00859 |
[4] |
SEAT |
|
|
NS543. |
XJBN-00860 |
[2] |
STOPPER |
|
|
NS544. |
XJBN-01002 |
[2] |
STOPPER(2) |
|
|
S545. |
XJBN-00359 |
[4] |
BALL-STEEL |
|
|
NS548. |
XJBN-00360 |
[2] |
PIN-FEED BACK |
|
|
702. |
XJBN-00040 |
[2] |
O-RING |
|
|
710. |
XJBN-00041 |
[2] |
O-RING |
|
|
714. |
XJBN-01003 |
[1] |
O-RING |
|
|
717. |
XJBN-00042 |
[2] |
O-RING |
|
|
719. |
XJBN-00043 |
[2] |
O-RING |
|
|
724. |
XJBN-00361 |
[16] |
O-RING |
|
|
725. |
XJBN-00362 |
[6] |
O-RING |
|
|
728. |
XJBN-00363 |
[4] |
O-RING |
|
|
732. |
XJBN-00047 |
[2] |
O-RING |
|
|
774. |
XJBN-00906 |
[1] |
SEAL-OIL |
|
|
774. |
XJBN-01595 |
[1] |
SEAL-OIL |
TYPE 2 |
|
789. |
XJBN-00049 |
[2] |
RING-BACK UP |
|
|
792. |
XJBN-00050 |
[2] |
RING-BACK UP |
|
|
808. |
XJBN-00364 |
[4] |
NUT |
|
|
824. |
XJBN-00052 |
[2] |
RING-SNAP |
|
|
885. |
XJBN-00053 |
[2] |
PIN-2 |
|
|
886. |
XJBN-00365 |
[4] |
PIN-SPRING |
|
|
901. |
XJBN-00055 |
[2] |
BOLT-EYE |
|
|
953. |
XJBN-00056 |
[2] |
SCREW-SET |
|
|
954. |
XJBN-00057 |
[2] |
SCREW-SET |
|
|
981. |
XJBN-00156 |
[1] |
NAME PLATE |
|
|
983. |
XJBN-00341 |
[2] |
PIN |
|
|
*-2. |
XJBN-01004 |
[2] |
REGULATOR |
SEE 4020 |
|
*-3. |
XJBN-01005 |
[1] |
GEAR PUMP |
SEE 4030 |
|
*-4. |
XJBN-00014 |
[1] |
EPPR VALVE ASSY |
SEE 4040 |
|
*-5. |
XJBN-01006 |
[1] |
PTO UNIT |
|
|
5-1. |
XJBN-01007 |
[8] |
SCREW-HEX |
|
|
5-2. |
XJBN-00031 |
[1] |
PLUG |
|
|
5-3. |
XJBN-01008 |
[1] |
O-RING |
|
|
5-4. |
XJBN-00046 |
[1] |
O-RING |
|
|
S011. |
XJBN-00563 |
[2] |
PISTON ASSY |
SEE ILLUST |
|
S011. |
XJBN-01382 |
[2] |
PISTON ASSY |
TYPE 2 |
|
S013. |
XJBN-00562 |
[1] |
CYLINDER ASSY-RH |
SEE ILLUST |
|
S014. |
XJBN-00561 |
[1] |
CYLINDER ASSY-LH |
SEE ILLUST |
|
S030. |
XJBN-00011 |
[2] |
SWASH PLATE ASSY |
SEE ILLUST |
|
S041. |
XJBN-00072 |
[2] |
CHECK VALVE ASSY 1 |
SEE ILLUST |
|
S042. |
XJBN-01009 |
[2] |
CHECK VALVE ASSY 3 |
SEE ILLUST |
|
S530. |
XJBN-00371 |
[2] |
TILTING PIN SUB ASSY |
SEE ILLUST |
