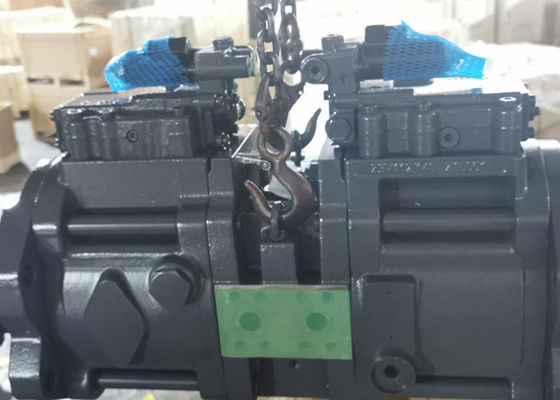

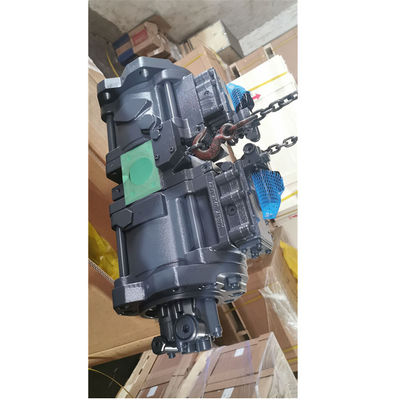

VOE14571141 14531300 EC210 EC210B EC210BLC EC210C EC240B EC240 Hydraulic Main Pump K3V112DT K3V112DT-1XER-9N24 Hydraulic Pump
Product Description
VOE14571141 Pump .Heavy parts EC200B, EC210B Pump
Pro entire list:
CE parts alog
EC210B
EC200B
Parts on group Hydraulic pump:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14571141 | [1] | Pump | ||
| 1. | VOE14600771 | [2] | Piston | |
| 2. | VOE14550188 | [1] | Cylinder | |
| 3. | VOE14550189 | [1] | Cylinder | |
| 4. | SA8230-09800 | [2] | Plate | |
| 5. | SA7223-00450 | [2] | Non-return valve | |
| 6. | SA7223-00460 | [2] | Non-return valve | |
| 7. | SA8230-09790 | [1] | Pin | |
| 8. | VOE14604266 | [1] | Non-return valve | |
| 9. | VOE14533608 | [1] | O-ring | |
| 10. | VOE14533606 | [4] | O-ring | |
| 11. | VOE14560637 | [3] | Plug | |
| 12. | VOE14883837 | [1] | Plug | |
| 13. | SA8230-25880 | [3] | Hex. socket screw | |
| 14. | VOE14574269 | [1] | Valve | |
| 15. | VOE990547 | [1] | O-ring | |
| 16. | VOE990738 | [1] | O-ring | |
| 17. | VOE990546 | [1] | O-ring | |
| 18. | SA8230-09100 | [1] | Main shaft | |
| 19. | SA8230-09070 | [1] | Shaft | |
| 20. | SA8230-09660 | [1] | Coupling | |
| 21. | VOE14535425 | [2] | Bearing | |
| 22. | VOE14535447 | [2] | Bearing | |
| 23. | SA8230-14530 | [4] | Spacer | |
| 24. | VOE14541865 | [2] | Plate | |
| 25. | VOE14535448 | [2] | Bushing | |
| 26. | SA8230-09710 | [18] | Spring | |
| 27. | SA8230-21920 | [2] | Plate | |
| 28. | SA8230-08940 | [2] | Support | |
| 29. | SA8230-09350 | [1] | Flange connection | |
| 30. | VOE14541860 | [2] | Casing | |
| 31. | SA8230-08980 | [1] | Valve block | |
| 32. | SA8230-09690 | [8] | Hex. socket screw | |
| 33. | VOE967630 | [4] | Hex. socket screw | |
| 34. | VOE14883837 | [3] | Plug | |
| 35. | SA9415-11051 | [4] | Plug | |
| 36. | VOE14560637 | [21] | Plug | |
| 37. | VOE14540778 | [2] | Piston | |
| 38. | VOE14600770 | [2] | Plate | |
| 39. | SA8230-09650 | [2] | Plate | |
| 40. | VOE14533615 | [2] | O-ring | |
| 41. | VOE14535450 | [1] | O-ring | |
| 42. | VOE14535451 | [4] | O-ring | |
| 43. | VOE14533604 | [16] | O-ring | |
| 44. | VOE14533606 | [4] | O-ring | |
| 45. | VOE14533612 | [4] | O-ring | |
| 46. | VOE14533609 | [2] | O-ring | |
| 47. | VOE14600711 | [1] | Seal | |
| 48. | VOE14625246 | [2] | Ring | |
| 49. | SA9566-20350 | [2] | Back-up ring | |
| 50. | SA8230-25620 | [2] | Nut | |
| 51. | VOE979022 | [2] | Hexagon nut | |
| 52. | VOE13914468 | [2] | Snap ring | |
| 53. | SA8230-26430 | [2] | Plate | |
| 54. | SA7223-00660 | [4] | Spring pin | |
| 55. | VOE14623509 | [2] | Eye bolt | |
| 56. | SA8230-26780 | [2] | Bolt | |
| 57. | SA8230-09700 | [2] | Bolt | |
| 100. | VOE14555298 | [1] | Sealing kit |
