| MOQ: | 1PCS |
| Price: | Negotiated price |
| Standard Packaging: | Standard shipping package |
| Delivery Period: | Within 2 working days |
| Payment Method: | T/T, paypal, credit card |
| Supply Capacity: | 1000 PCS/month |

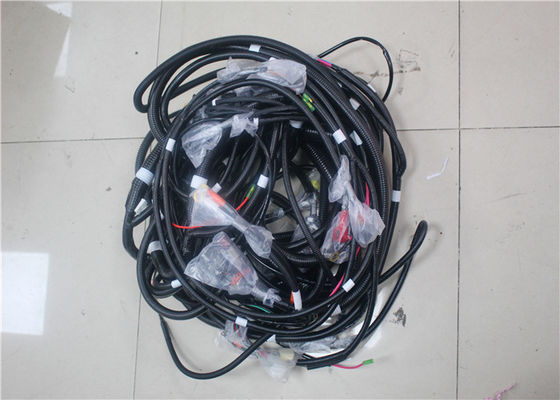

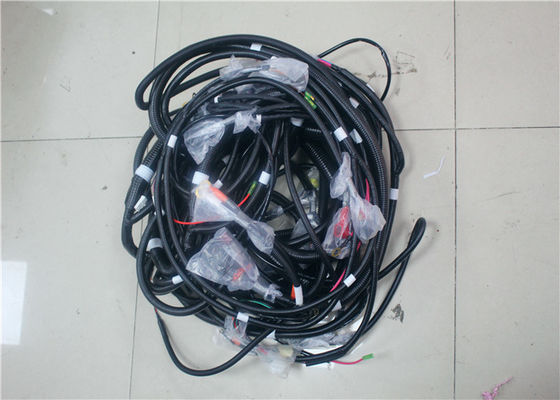

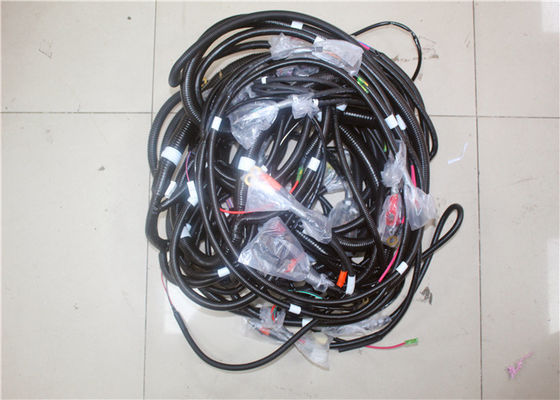

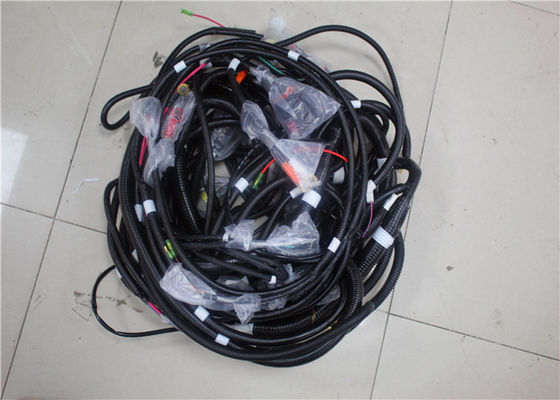

0003778 Harness Wire EX200-5 EX210-5 Aftermarket Excavator Spare Parts
Product description:
| Appliion | Excavator |
| Part name | Wire harness |
| Part number | 0003778 |
| Condition | Brand new |
| Machine model | EX200-5 EX210-5 |
| Warranty | 3 months |
| MOQ | 1pcs |
| Quality | Aftermarket |
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 01. | 0001931 | [1] | HARNESS;WIRE | I 0003778 <200,SS,LV,H> |
| 01. | 0003778 | [1] | HARNESS;WIRE | <200,SS,LV,H> |
| 01. | 4371401 | [1] | HARNESS;WIRE | <HG,X> |
| 01. | 0002104 | [1] | HARNESS;WIRE | I 0003779 <E> |
| 01. | 0003779 | [1] | HARNESS;WIRE | <E> |
| 01. | 0002656 | [1] | HARNESS;WIRE | <Z> |
| 01. | 0002206 | [1] | HARNESS;WIRE | I 0003778 <K> |
| 01. | 0003778 | [1] | HARNESS;WIRE | <K> |
| 01A. | 4270554 | [1] | FUSIBLE-LINK (40A) | |
| 01B. | 4287670 | [1] | FUSIBLE-LINK (60A) | |
| 01C. | 4377491 | [1] | HARNESS;WIRE | |
| 02. | J950010 | [5] | NUT | |
| 03. | A590910 | [5] | WASHER;SPRING | |
| 04. | A590110 | [5] | WASHER;PLANE | |
| 05. | 4055311 | [14] | CLIP;BAND | <200> |
| 05. | 4055311 | [14] | CLIP;BAND | <K> |
| 05. | 4055311 | [14] | CLIP;BAND | <H> |
| 05. | 4055311 | [14] | CLIP;BAND | <Z> |
| 05. | 4055311 | [14] | CLIP;BAND | <E> |
| 05. | 4055311 | [14] | CLIP;BAND | <SS,HG> |
| 05. | 4055311 | [13] | CLIP;BAND (L=140) | Y 4055311 <K> |
| 05. | 4055311 | [13] | CLIP;BAND (L=140) | Y 4055311 <H> |
| 05. | 4055311 | [13] | CLIP;BAND (L=140) | Y 4055311 <Z> |
| 05. | 4055311 | [13] | CLIP;BAND (L=140) | Y 4055311 <E> |
| 05. | 4055311 | [13] | CLIP;BAND (L=140) | Y 4055311 <LV,X> |
| 05. | 4055311 | [13] | CLIP;BAND (L=140) | Y 4055311 <SS,HG> |
| 05. | 4055311 | [13] | CLIP;BAND (L=140) | Y 4055311 <200> |
| 05. | 4055311 | [14] | CLIP;BAND | X<LV,X> |
| 06. | 4055312 | [4] | CLIP;BAND (L=250) | |
| 07. | 4343690 | [3] | CLIP | |
| 08. | 4207239 | [1] | CAP | <200,SS,HG,LV,X,E,H,K> |
| 09. | 4055312 | [1] | CLIP;BAND | ﾞ<200,SS,HG,LV,X,E,H,K> |
| 10. | J011020 | [26] | BOLT;SEMS (M10X20) | |
| 11. | J011220 | [1] | BOLT;SEMS (M12X20) | |
| 13. | 4190282 | [2] | CLIP (18X2) | |
| 15. | 4190261 | [4] | CLIP (10) | |
| 16. | 4190272 | [1] | CLIP (12) | |
| 17. | 4190275 | [5] | CLIP (14) | |
| 18. | 4190273 | [6] | CLIP (18) | |
| 19. | 4190274 | [5] | CLIP (20) | |
| 20. | 4190277 | [4] | CLIP (22) | |
| 21. | 4190263 | [7] | CLIP (25) | |
| 22. | 4190264 | [5] | CLIP (35) | |
| 23. | 4190291 | [5] | CLIP (40) | |
| 28. | 4000860 | [1] | CLIP;PIPE | |
| 29. | J010616 | [1] | BOLT;SEMS | |
| 30. | 4279835 | [1] | RELAY;SAFETY | |
| 31. | J010816 | [2] | BOLT;SEMS | |
| 50. | 1022145 | [1] | HARNESS;WIRE | <HG> |
| 50. | 1021441 | [1] | HARNESS;WIRE | <X> |
| 60. | 4417248 | [1] | HARNESS;WIRE |
