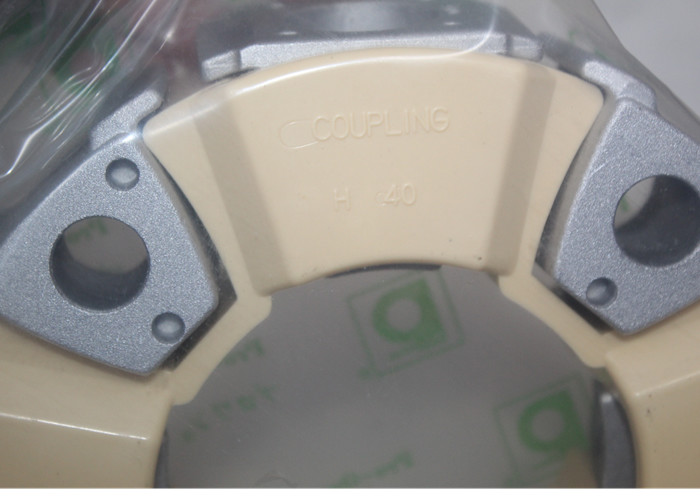

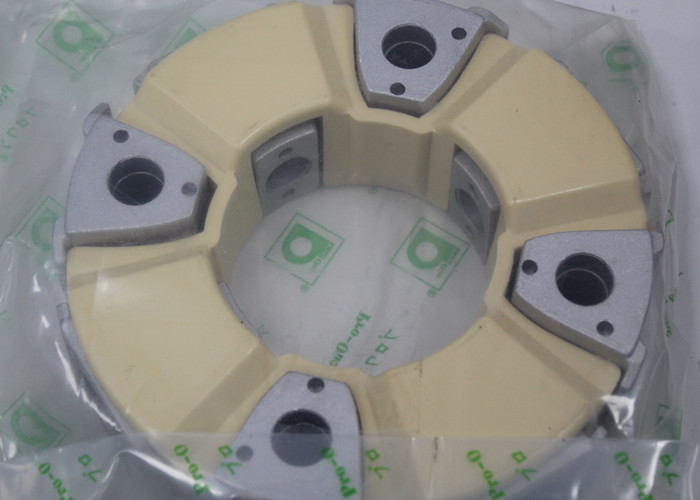

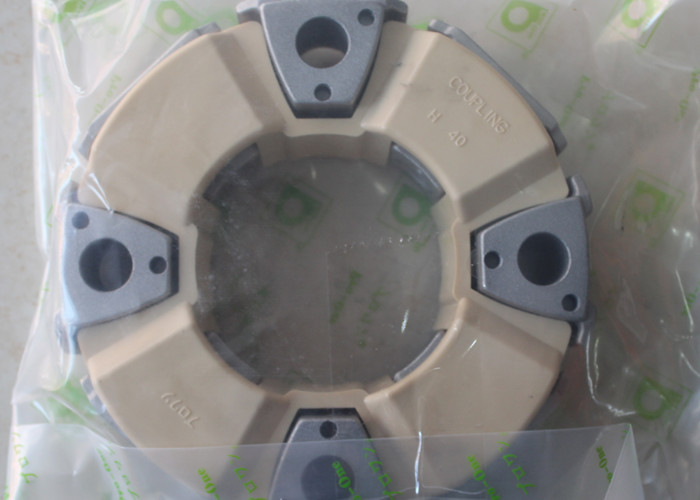

High quality 4654760 4463993 4671573 hydraulic Coupling 45H Coupling assy
Product Description
Sanse can offer following more coupling for you:
4A 4AS 8A 8AS 16A 16AS 22A 22AS 25A 25AS S29S 28A 28AS 30A 30AS 140A 140AS E300B16T SH160 E200B14T 50AC 50AM E200B12T E330C 25H 30H 35H 40H 45H 50H 90H 110H 140H 160H
EXCAVATOR 180 200CLC 210
LOGGER 2054 Deere
John Deere parts alog
180 - EXCAVATOR
MAIN HYDRAULIC PUMP ASSEMBLY » Coupling 4654760
200CLC - EXCAVATOR
MAIN HYDRAULIC PUMP » Coupling 4654760
210 - EXCAVATOR
MAIN HYDRAULIC PUMP ASSEMBLY » Coupling 4654760
2054 - EXCAVATOR LOGGER
MAIN HYDRAULIC PUMP COUPLER AND DRIVE GEARS » Coupling 4654760
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 0. | 9236929 | [1] | Hydraulic Pump | |
| 1. | 1030682 | [1] | ||
| 2. | 9218033 | [1] | Pump | GEAR SUB FOR 4278696 |
| 3. | 3100991 | [1] | Gear | |
| 4. | 3055594 | [1] | Shaft | |
| 5. | 19M8337 | [2] | Cap Screw | SUB FOR M341030 |
| 6. | 12M7135 | [2] | Lock Washer | 10 MM SUB FOR 984054 |
| 7. | 4114402 | [2] | Washer | |
| 8. | 6008X | [2] | Ball Bearing | SUB FOR 958740 |
| 9. | 962002 | [1] | Snap Ring | |
| 10. | 40M7090 | [1] | Snap Ring | SUB FOR 991725 |
| 11. | ........ | [1] | Plate | NAME |
| 12. | 4369148 | [1] | Oil Line | |
| 13. | ........ | [1] | Hydraulic Pump | SEE SEPARATE PAGE FOR DETAIL |
| 14. | 37H99 | [2] | Screw | 0.100" X 1/4" SUB FOR M492564 |
| 15. | 4293950 | [2] | Fitting | |
| 16. | M800650 | [1] | Packing | (A) SUB FOR 957366 |
| 17. | FYB00000114 | [1] | Coupling | SUB FOR 4416605 |
| 17A. | 4702172 | [1] | Hub | SUB FOR 4463992 OR 4687331, ALSO ORDER (2) 4702173 |
| 17B. | ........ | [2] | Set Screw | USE WITH 4463992 OR 4687331, SUB 4702173, ALSO ORDER 4702172, 4334899 NLA |
| 17B. | 4702173 | [2] | Set Screw | USE WITH 4702172 |
| 17C. | 34M7117 | [4] | Spring Pin | 5 X 10 MM SUB FOR 4101345 |
| 17D. | 4463993 | [4] | Insert | |
| 17E. | 4334894 | [4] | Bolt | |
| 17F. | 4654760 | [1] | Coupling | SUB FOR 4463994 |
| 24. | 8058352 | [1] | Gasket | (A) |
| 25. | 19M7489 | [6] | Cap Screw | SUB FOR J901645 |
| 26. | 12H294 | [6] | Lock Washer | 5/8" SUB FOR A590916 |
| 27. | 4613307 | [1] | Hose | |
| 28. | A852133 | [1] | Adapter Fitting | |
| 29. | 4444381 | [1] | Pipe Plug | |
| 30. | 3100993 | [1] | Gear | |
| 31. | 3100994 | [1] | Gear | |
| 32. | AT152406 | [2] | Snap Ring | SUB FOR 4274552 |
| 34. | 34M7061 | [2] | Spring Pin | 8 X 20 MM SUB FOR 4099290 |
| 43. | 4310055 | [1] | Seal | (A) |
| 44. | 40M7090 | [1] | Snap Ring | SUB FOR 991725 |
| 61. | 4438059 | [1] | Dipstick | |
| 62. | 9743977 | [1] | Dipstick Tube | |
| 63. | 9742779 | [1] | Gasket | (A) |
| 64. | 19M7647 | [2] | Screw | M8 X 16 SUB FOR M340816 |
| 68. | 4265372 | [1] | Sensor | |
| 69. | 4306888 | [1] | O-Ring | (A) |
| 70. | 24M7054 | [1] | Washer | 6.400 X 12 X 1.600 MM SUB FOR A590106 |
| 71. | 19M8553 | [1] | Cap Screw | SUB FOR M340616 |
| 86. | 4234782 | [1] | Plug | |
| 87. | 0309805 | [1] | Pipe Plug | SUB FOR 4092534 |
| 87A. | CH11570 | [1] | O-Ring | (A) SUB FOR 4509180 |
| 88. | 4451036 | [1] | Seal Kit | INCLUDES PARTS MARKED (A) |
Our Service
1.Professional Supplier.
2.Good Service and Fast Reply.
3.Short Delivery Time.
4.Reasonable Price with High Quality
5.Long Warranty Time and Permanent
6.Technical Support.
7.Best After-Sales Service.
FAQ
| 1Q: | What's the brand of your coupling? |
| 1A: | It is BELPARTS brand |
| 2Q: | What's the guarantee? |
| 2A: | Our coupling have six month guarantee. |
| 3Q: | This couplings are produced by your own factory or from other supplier ? |
| 3A: | We have our own factory and we are major in this area for more than 10 years. |
| 4Q: | How long is the delivery time? |
| 4A: | Hot sell items are always in stock |
