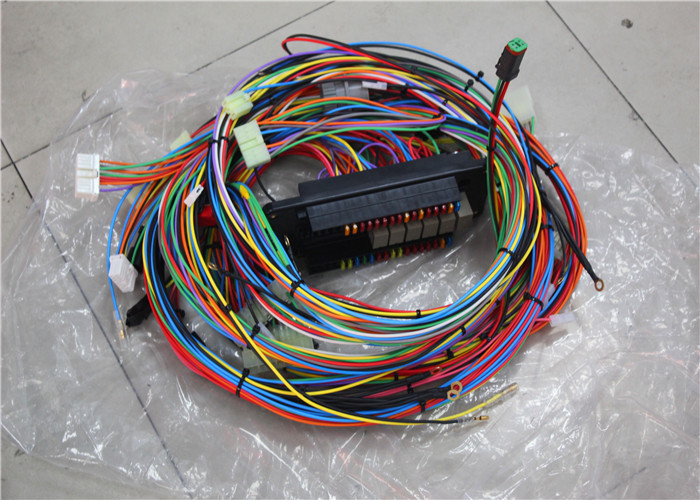

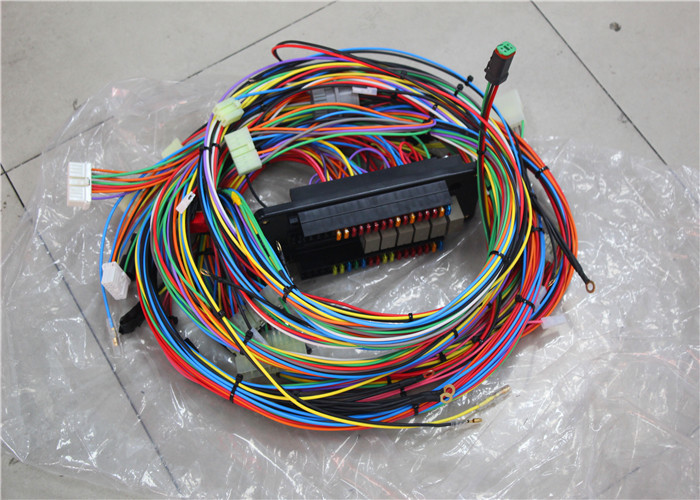

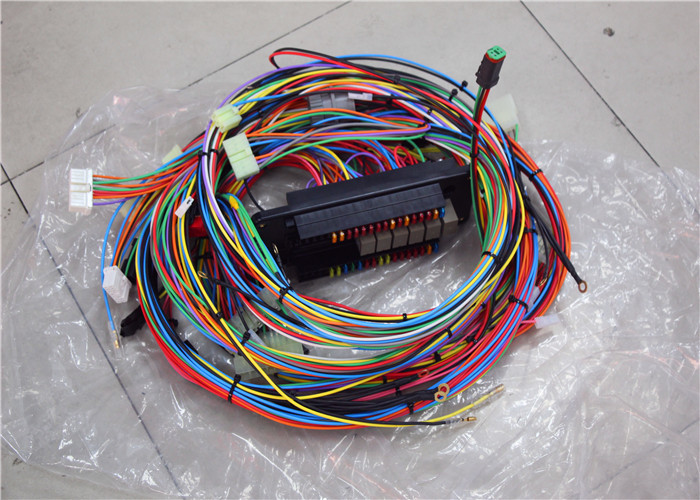

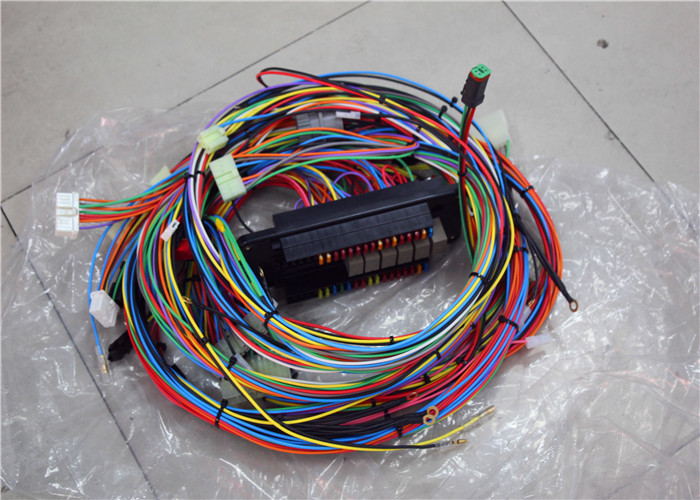

E320D 259-5223 Fuse Box Wire Harness Cable Excavator Spare Parts
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Model | E320 E320D | Part Number | 259-5223 |
|---|---|---|---|
| Part Name | Fuse Box Wire Harness | Appliion | Excavator |
| Warranty | 3 Months | Quality | 1PCS |
| Highlight | E320D Excavator Spare Parts,Wire Harness Excavator Spare Parts,259-5223 Fuse Box Wire Harness |
||
Product Description
E320D 259-5223 Fuse Box Wire Harness Cable Excavator Spare Parts
Product description
| Part name | Fuse box wire harness |
| Appliion | Crawler excavator |
| Machine model | E320D E320 |
| Part number | 259-5223 |
| Warranty | 3 months |
| Condition | Brand new |
| Quality | Made in China |
| MOQ | 1 PCS |
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 3S2093 | STRAP-CABLE-TO TIE HARNESSES TOGETHER | 11 | |
| 2 | 7Y5505 | SPEAKER ASSEM. | 2 | |
| 7Y3951 | TERMINAL-BLADE (14-GA) | 2 | ||
| 7Y3954 | CONNECTOR-PLUG | 1 | ||
| 3 | 9W0335 | LIGHTER AS (CIGAR, 24-VOLT) | 1 | |
| 6T6505 | HOUSING-RECEPTACLE (BLADE, POSITIVE LOCK)(14-18 GA) | 1 | ||
| 6T6506 | TERMINAL (BLADE, POSITIVE LOCK)(18-14 GAUGE) | 1 | ||
| 4 | 0942080 | SWITCH-MAGNETIC (24-VOLT)(START RELAY) | 1 | |
| 5 | 0997127 | SCREW-MACHINE (M4X0.7X12-MM) | 8 | |
| 6 | 1028016 | RESISTOR AS (BACKUP) | 1 | |
| 7 | 1138490 | FUSE (10 AMP) | 22 | |
| 8 | 1138491 | FUSE (15-AMPERE) | 4 | |
| 9 | 1138493 | FUSE (25-AMPERE) | 9 | |
| 10 | 1160210 | BRACKET ASSEM. | 4 | |
| 11 | 1243548 | FUSE-MINIATURE (30 AMP) | 2 | |
| 12 | 1321829 | ALARM GROUP -OVERLOAD WARNING | 1 | |
| 13 | 1412759 | FUSE (5-AMPERE) | 9 | |
| 14 | 1613128 | RELAY (24-VOLT)(QUICK CPLR LEVER, ON POSITION) | 6 | |
| 15 | 1613932 | METER GROUP-SERVICE | 1 | |
| 5C8312 | NUT (M4X0.7 THD) | 2 | ||
| 9B7233 | LOCKWASHER (INT'L TOOTH) | 2 | ||
| 0966166 | WASHER (HARD) (4.5X9X1mm THK) | 2 | ||
| 16 | 1636703 | TIMER AS | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 4 | ||
| 1028804 | KIT-RECEPTACLE (4-PIN)(START SWITCH) | 1 | ||
| (INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 17 | 1636758 | WIRE AS | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN)(ENGINE SENSOR WIRING HARNESS) | 1 | ||
| (INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 3E3365 | WEDGE (RECEPTACLE LOCK) (2 PIN) | 1 | ||
| 18 | 1636795 | STRAP (CABLE) | 14 | |
| 19 | 1673593 | STRAP | 1 | |
| 20 | 1706888 | PULLER-FUSE | 1 | |
| 21 | 1974330 | CONTROLLER-AIR (HEATER) | 1 | |
| 22 | 2130772 | SWITCH AS-MAGNETIC (24-VOLT)(REFUELING POWER RELAY) | 1 | |
| 23 | 2277575 | PANEL AS-CONTROL (SWITCH) | 1 | |
| 24 | 2341097 | BRACKET | 1 | |
| 25 | 2382212 | SWITCH AS-ROCKER (FINE SWING) | 1 | |
| 1673542 | CONNECTOR (RECEPTACLE) | 1 | ||
| 1673543 | TERMINAL (MALE) | 5 | ||
| 26 | 2382318 | LIGHTER AS-CIGAR (24-VOLT) | 1 | |
| 27 | 2382390 | CABLE AS | 1 | |
| 28 | 2382391 | CABLE AS | 1 | |
| 29 | 2457760 | INSULATION | 8 | |
| 30 | 2510637 | INSULATION | 1 | |
| 31 | 2594883 | ANTENNA AS | 1 | |
| 2595081 | ROD | 1 | ||
| 2595082 | CABLE AS | 1 | ||
| 32 | 2595223 | HARNESS AS-CAB (AUXILIARY, CHASSIS) | 1 | |
| 1028803 | KIT (RECEPTACLE) (3-PIN) (INCLUDES RECEPTACLE AS & WEDGE) | 3 | ||
| (EACH INCLUDES RECEPTACLE AS & WEDGE) | ||||
| 3S2093 | STRAP-CABLE-TO TIE HARNESSES TOGETHER | 114 | ||
| 1552260 | KIT-CONNECTING PLUG (3-PIN)(ENGINE SENSOR WIRING HARNESS) | 1 | ||
| 1552270 | KIT-CONNECTING PLUG (2-PIN)(ENGINE SENSOR WIRING HARNESS) | 2 | ||
| (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) | ||||
| 1552272 | PLUG AS-CONNECTOR (4-PIN) | 1 | ||
| 1743016 | PLUG AS-CONNECTOR (3-PIN) | 2 | ||
| 2304009 | PLUG AS-CONNECTOR (12-PIN) | 1 | ||
| 2304011 | PLUG AS-CONNECTOR (2-PIN) | 1 | ||
| 2304013 | PLUG AS-CONNECTOR (3-PIN) | 1 | ||
| 33 | 2595290 | BRACKET AS | 1 | |
| 34 | 2677639 | SWITCH AS-ROCKER (LEVELING) | 1 | |
| 1673542 | CONNECTOR (RECEPTACLE) | 1 | ||
| 1673543 | TERMINAL (MALE) | 5 | ||
| 35 | 0950723 | SCREW (M3X0.5X10-MM) | 3 | |
| 36 | 0965962 | WASHER (HARD) (3.4X7X0.8MM THK) | 3 | |
| 37 | 0966166 | WASHER (HARD) (4.5X9X1mm THK) | 2 | |
| 38 | 1325789 | CLIP (LADDER) | 8 | |
| 39 | 4P7581 | CLIP (FOR USE WITH 7.9MM WIDE TIE WRAP) | 1 | |
| 40 | 5C2890 | NUT (M6X1-THD)(AIR INLET HEATER) | 9 | |
| 41 | 6V5210 | SCREW (MACHINE) (M4X0.7X10mm) | 8 | |
| 42 | 6V9672 | SCREW-MACHINE (M4X0.7X16-MM) | 2 | |
| 43 | 8T0328 | WASHER (HARD) (5.5X10X1mm THK) | 3 | |
| 44 | 8T4127 | SCREW (MACHINE) (M5X0.8X20mm) | 2 | |
| 45 | 8T6693 | SCREW-MACHINE (M5X0.8X16-MM) | 1 | |
| 46 | 9X2042 | SCREW-TRUSS HEAD (M6X1.0X12MM) (M6X1.00X12MM) | 14 | |
| 47 | 9X2044 | SCREW-TRUSS HEAD (M6X1X16MM) (M6X1X16-MM) | 5 | |
| 48 | 9X8256 | WASHER (6.6X12X2-MM THK) | 9 | |
| 49 | 1012846 | GUARD (9.5-CM EACH) | ||
| 49A | 1012846 | GUARD (9.5-CM EACH) | ||
| ORDER BY THE CENTIMETER | ||||
| METRIC PART | ||||
| SEPARATE ILLUSTRATION |
About our company
FAQ:
Q. When will get the items after I place order?
A. Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock, we will inform you before placing the order.
Q. If I only know the excavator model, but can not offer parts No., what should I do ?
A. If possible, you can send us pictures of old products, nameplate or the size for reference.
Q. How can you guarantee the quality?
A. We will 100% test the goods before delivery. If you meet with quality problem, we promise to replace goods or return your funds.
Q. How long will it take to delivery to my address?
A. The normal delivery time is 3-5 days, depending on which country you are in.
Q. Do you accept sample order?
A. Yes, sample order can accept.
Q: What's package? Can you give me the package according my requirement?
A. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.
Q: What's brand you can offer in your company?
A. OEM, original, as per your need.
