Excavator Spare Parts 14576327 14576328 EC210 EC210B EC360

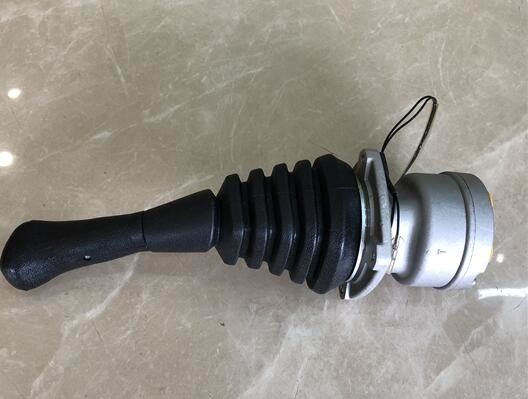

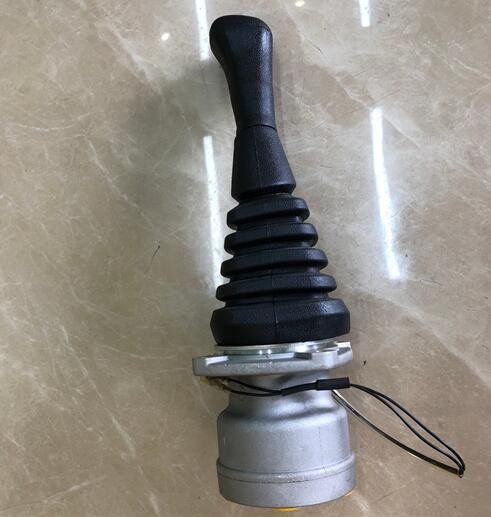

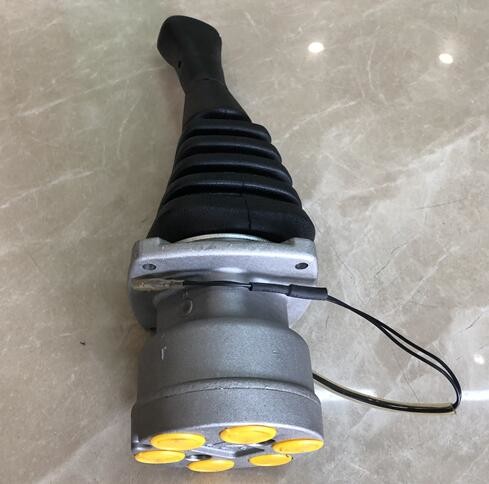

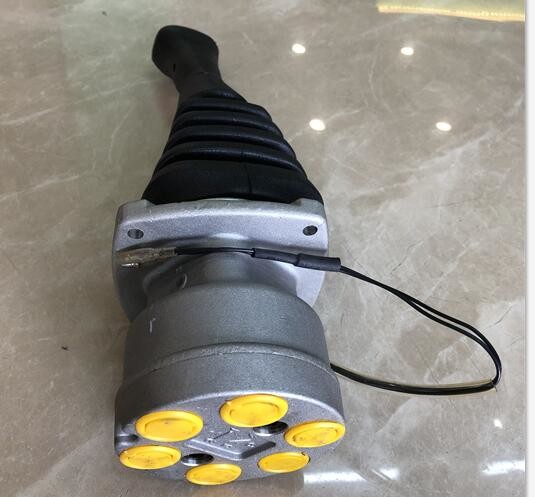

Pilot Handle Valve
Product description:
| Appliion | Excavator |
| Part name | Pilot handle valve |
| Part number | 14576327 14576328 |
| Machine model | EC210 EC210B EC360 |
| Warranty | 3 months |
| Quality | Aftermarket |
Machine model:EC140B,EC160B,EC180B,EC200B,EC210B,EC240B,EC290B,EC330B,EC360B,EC460B,EC700B
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | VOE14576327 | [1] | Remote control valve | LH |
| VOE14576328 | [1] | Remote control valve | RH | |
| 2. | SA8230-37150 | [1] | Plate | |
| 3. | SA8230-19731 | [2] | Washer | |
| 4. | SA8230-37060 | [1] | O-ring | |
| 5. | VOE11706967 | [2] | Screw | |
| 6. | SA8230-25940 | [1] | Spring pin | |
| 7. | SA8230-37100 | [1] | Bushing | |
| 8. | SA8230-37140 | [1] | Plate | |
| 9. | VOE14500116 | [4] | Control plunger | |
| 10. | VOE14588698 | [2] | Rod | PORT A,C |
| 11. | SA8230-28800 | [1] | Plug | |
| 12. | VOE14588459 | [1] | Seal | |
| 13. | VOE14533610 | [1] | O-ring | |
| 14. | SA8230-36650 | [2] | Valve seat | |
| 15. | SA8230-19690 | [4] | Washer | |
| 16. | SA8230-36640 | [2] | Valve seat | |
| 17. | VOE14588699 | [2] | Rod | PORT B,D |
| 18. | SA8230-28800 | [1] | Plug | |
| 19. | VOE14588459 | [1] | Seal | |
| 20. | VOE14533610 | [1] | O-ring | |
| 21. | VOE14541091 | [2] | Spring | |
| 22. | VOE14512873 | [2] | Spring | |
| 23. | SA8230-36770 | [2] | Spring | |
| 24. | SA8230-36780 | [2] | Spring | |
| 25. | SA8230-20040 | [1] | Joint | |
| 26. | SA8230-37120 | [1] | Plate | |
| 27. | SA8230-20140 | [1] | Nut | |
| 28. | SA8230-19950 | [1] | Lock nut | |
| 29. | SA8230-37090 | [1] | Knob | LH |
| VOE14500137 | [1] | Knob | RH | |
| 30. | SA8230-36940 | [1] | Switch | |
| 31. | SA8230-37080 | [1] | Handle | |
| 32. | SA8230-36320 | [1] | Bar | |
| 33. | SA8230-32090 | [1] | Screw | |
| 34. | SA8230-28020 | [2] | Screw | |
| 35. | SA8230-32100 | [1] | Tube | |
| 36. | SA8230-37110 | [1] | Bushing | |
| 37. | SA8230-20180 | [2] | Terminal | |
| 38. | SA8230-20190 | [1] | Terminal | |
| 39. | VOE14540764 | [1] | Sleeve | |
| 40. | VOE14540765 | [2] | Sleeve | |
| 41. | SA8230-27600 | [1] | Bellows | |
| 42. | SA8230-37050 | [1] | Casing | |
| 43. | VOE13946934 | [8] | Screw |
