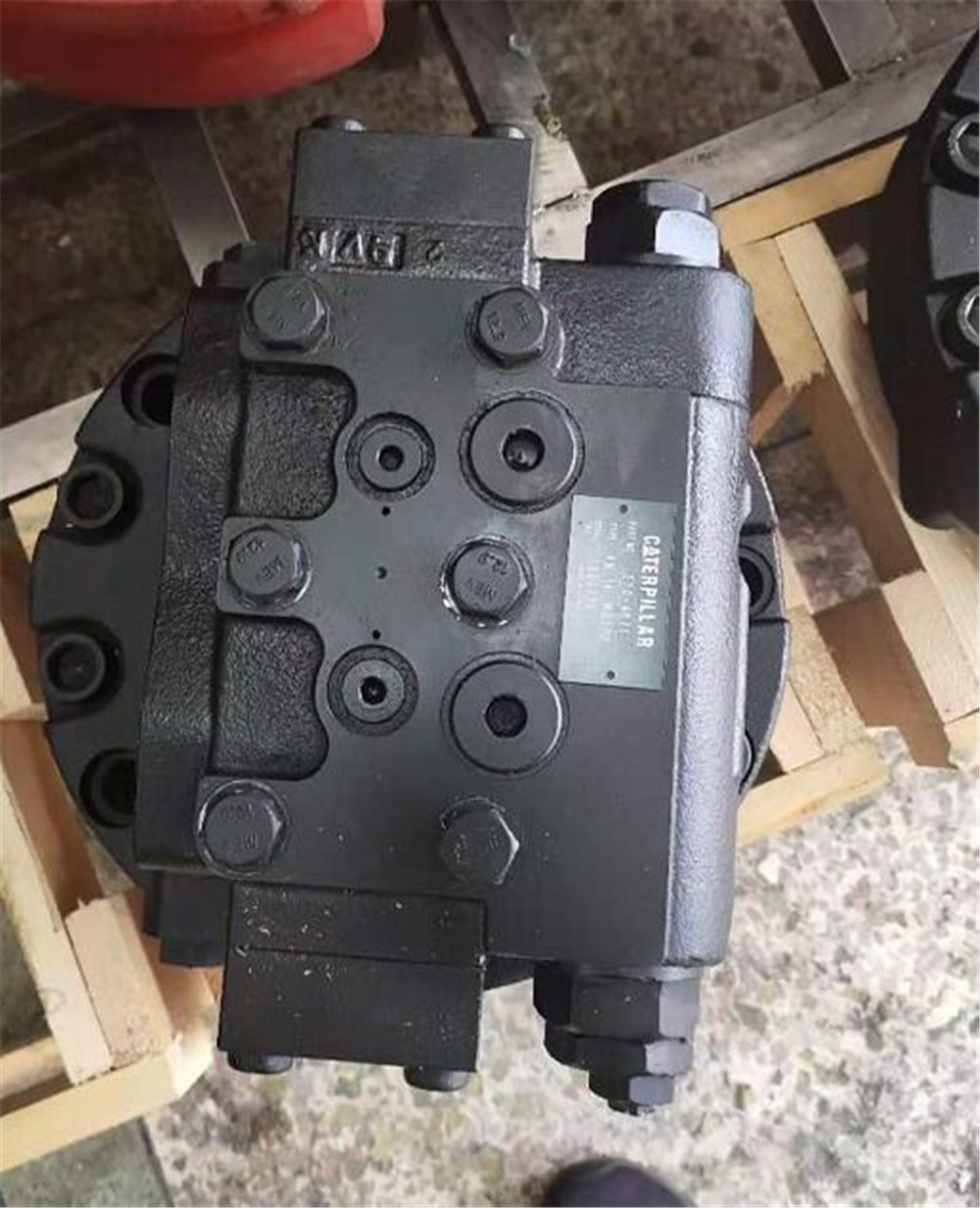

E330B Travel Motor 330B Excavator Complete Final Drive 114-1478
| Part No | 1141478 |
| Part Name | FINAL DRIVE GROUP |
| Modifiion |
3306;
330B; 330B L; 330B LN;
OEMS;
| Part No | Part Name | Part Info |
|---|---|---|
| 1141478 | FINAL DRIVE GROUP section: POWER TRAIN |
114-1478 FINAL DRIVE GP WITHOUT MOTOR PART OF 154-8936, 1C-7972 FINAL DRIVE GP FIELD REPLACEMENT ORDER 114-1453 FINAL DRIVE GP |
| 1141478 | FINAL DRIVE GROUP section: POWER TRAIN |
114-1478 FINAL DRIVE GP WITHOUT MOTOR PART OF 154-8936, 1C-7972 FINAL DRIVE GP FIELD REPLACEMENT ORDER 114-1453 FINAL DRIVE GP |
| 1141478 | FINAL DRIVE GROUP section: POWER TRAIN |
114-1478 FINAL DRIVE GP S/N 6DR1-4832 WITHOUT MOTOR PART OF 114-1453, 114-1477 DRIVE GP-FINAL FIELD REPLACEMENT ORDER 114-1453 FINAL DRIVE GP |
| 1141478 | FINAL DRIVE GROUP section: POWER TRAIN |
114-1478 DRIVE GP-FINAL S/N 3YR1-591; 5LR1-344 WITHOUT MOTOR PART OF 133-3658, 150-1011 DRIVE GP-FINAL FIELD REPLACEMENT ORDER 114-1453 FINAL DRIVE GP |
| 1141478 | FINAL DRIVE GROUP section: POWER TRAIN |
114-1478 DRIVE GP-FINAL S/N 4RS1-359; 5LS1-UP WITHOUT MOTOR PART OF 133-3658, 150-1011 DRIVE GP-FINAL FIELD REPLACEMENT ORDER 114-1453 FINAL DRIVE GP |
| 1141478 | FINAL DRIVE GROUP section: POWER TRAIN |
1141478 FINAL DRIVE GP-PART 1 OF 2 S/N 8SR 1-00241, 8TR 1-00244 PART OF 1141477-Page 177 |
| 1141478 | FINAL DRIVE GROUP section: POWER TRAIN |
1141478 FINAL DRIVE GP-PART 2 OF 2 S/N 8SR 1-00241, 8TR 1-00244 PART OF 1141477-Page 177 |
| 1141478 | FINAL DRIVE GROUP section: POWER TRAIN |
1141478 FINAL DRIVE GP-PART 1 OF 2 S/N 8SR 00242-00645, 8TR 00245-00943 PART OF 1141477, 1425541-Page 177 |
| 1141478 | FINAL DRIVE GROUP section: POWER TRAIN |
1141478 FINAL DRIVE GP-PART 2 OF 2 S/N 8SR 00242-00645, 8TR 00245-00943 PART OF 1141477, 1425541-Page 177 |
| 1141478 | FINAL DRIVE GROUP section: POWER TRAIN |
1141478 FINAL DRIVE GP -PART 1 OF 2 S/N 1JS 1-00538 PART OF 1441477, 1425541-Page 149 |
| 1141478 | FINAL DRIVE GROUP section: POWER TRAIN |
1141478 FINAL DRIVE GP -PART 2 OF 2 S/N 1JS 1-00538 PART OF 1141477, 1425541-Page 149 |
| Part No | Part Name | Part Info |
|---|---|---|
| 1C7972 | FINAL DRIVE GROUP section: POWER TRAIN |
1C-7972 FINAL DRIVE GP PART OF 9Q-5243, 9Q-5245, 9Q-5246, 9Q-5247, 9Q-5857 UNDERCARRIAGE AR |
| 1548936 | FINAL DRIVE GROUP section: POWER TRAIN |
154-8936 FINAL DRIVE GP PART OF 1C-9332, 9Q-5830 UNDERCARRIAGE AR |
| 1C7972 | FINAL DRIVE GROUP section: POWER TRAIN |
1C-7972 FINAL DRIVE GP PART OF 9Q-5243, 9Q-5245, 9Q-5246, 9Q-5247, 9Q-5857 UNDERCARRIAGE AR |
| 1548936 | FINAL DRIVE GROUP section: POWER TRAIN |
154-8936 FINAL DRIVE GP PART OF 1C-9332, 9Q-5830 UNDERCARRIAGE AR |
| 1141453 | FINAL DRIVE GROUP section: POWER TRAIN |
114-1453 FINAL DRIVE GP S/N 6DR1-UP WITHOUT MOTOR FIELD REPLACEMENT FOR 114-1478 FINAL DRIVE GP |
| 1141477 | FINAL DRIVE GROUP section: POWER TRAIN |
114-1477 FINAL DRIVE GP S/N 6DR1-1085 WITH MOTOR |
| 1141477 | FINAL DRIVE GROUP section: POWER TRAIN |
114-1477 FINAL DRIVE GP S/N 6DR1086-1750 WITH MOTOR |
| 1141477 | FINAL DRIVE GROUP section: POWER TRAIN |
114-1477 FINAL DRIVE GP S/N 6DR1751-4832 WITH MOTOR |
| 1141478 | FINAL DRIVE GROUP section: POWER TRAIN |
114-1478 DRIVE GP-FINAL S/N 3YR1-591; 5LR1-344 WITHOUT MOTOR PART OF 133-3658, 150-1011 DRIVE GP-FINAL FIELD REPLACEMENT ORDER 114-1453 FINAL DRIVE GP |
| 1333658 | FINAL DRIVE GROUP section: POWER TRAIN |
133-3658 FINAL DRIVE GP S/N 3YR1-400; 5LR1-261 PART OF 122-4844 POWER TRAIN AR |
| 1141478 | FINAL DRIVE GROUP section: POWER TRAIN |
114-1478 DRIVE GP-FINAL S/N 4RS1-359; 5LS1-UP WITHOUT MOTOR PART OF 133-3658, 150-1011 DRIVE GP-FINAL FIELD REPLACEMENT ORDER 114-1453 FINAL DRIVE GP |
| 1333658 | FINAL DRIVE GROUP section: POWER TRAIN |
133-3658 FINAL DRIVE GP S/N 4RS1-337; 5LS1-UP PART OF 122-4844, 136-7243 POWER TRAIN AR |
Aggregate
| Part No | Part Name | Price request |
|---|---|---|
| 1141478 | FINAL DRIVE GROUP |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 1141480 | HOUSING-MOTOR | 1 | |
| 2 | 1326141 | SEAL GROUP-DUO-CONE | 1 | |
| 9W5976 | RING-SEALING | 2 | ||
| 3 | 1688453 | BALL BEARING | 2 | |
| 4 | 7Y0644 | SPACER (163X190X8-MM THK) | 1 | |
| 5 | 7Y0595 | SPACER (58X79.6X6-MM THK) | 2 | |
| 6 | 1141541 | PIN (DOWEL) | 6 | |
| 7 | 1107234 | SHIM (T=0.15mm) | 1 | |
| 1107235 | SHIM (T=0.3mm) (T=0.30mm) | 1 | ||
| 1107236 | SHIM (0.4-MM) | 1 | ||
| 1107237 | SHIM (T=0.5mm) (T=0.50mm) | 1 | ||
| 1107238 | SHIM (T=0.6mm) (T=0.60mm) | 1 | ||
| 1107239 | SHIM (T=0.7mm) (T=0.70mm) | 1 | ||
| 1107240 | SHIM (T=0.8mm) (T=0.80mm) | 1 | ||
| 1107241 | SHIM (T=1.0mm) (T=1.00mm) | 1 | ||
| 1107242 | SHIM (T=1.6mm) (T=1.60mm) | 1 | ||
| 8 | 6V8133 | BOLT (M24X3.0X80MM) | 10 | |
| 9 | 0963216 | SETSCREW-SOCKET (M12X1.75X12-MM) | 2 | |
| 10 | 7Y0662 | SHAFT (PLANETARY) | 3 | |
| 11 | 7Y0663 | GEAR (PLANETARY) (20 TEETH) | 3 | |
| 12 | 0950891 | PIN - SPRING | 6 | |
| 13 | 7Y1094 | WASHER (66X102X1-MM THK) | 12 | |
| 14 | 7Y0659 | GEAR (PLANETARY) (22 TEETH) | 3 | |
| 15 | 7Y0661 | SHAFT (PLANETARY) | 3 | |
| 16 | 1107227 | COUPLING-GEAR | 1 | |
| 17 | 2P3628 | SEAL-O-RING (ID=412.34mm) | 1 | |
| 18 | 7Y0642 | GEAR (RING) (63 TEETH) | 1 | |
| 19 | 1107228 | CARRIER-PLANETARY | 1 | |
| 20 | 7Y0639 | GEAR (SUN) (21 TEETH) | 1 | |
| 21 | 7Y0645 | CARRIER | 1 | |
| 22 | 1107229 | GEAR (Z=73) | 1 | |
| 23 | 7M8485 | SEAL,ADAPTER,MOTOR PART OF KIT P/N 5R1429 | 2 | |
| 24 | 3E2338 | PLUG-PIPE | 2 | |
| 25 | 1107243 | CARRIER AS | 1 | |
| 7Y0656 | SHAFT (PLANETARY) | 3 | ||
| 26 | 7Y0667 | RING (RETAINING) | 1 | |
| 27 | 0931731 | RING - RETAINING | 1 | |
| 28 | 1107231 | GEAR (SUN) (18 TEETH) | 1 | |
| 29 | 1141479 | HOUSING-SPROCKET | 1 | |
| 30 | 0940577 | PLATE (7.0 mm THICK) | 1 | |
| 31 | 1107232 | GEAR-SUN (18-TEETH) | 1 | |
| 32 | 1107233 | GEAR-PLANETARY (26-TEETH) | 3 | |
| 33 | 0940584 | WASHER (40.3X72X1-MM THK) | 6 | |
| 34 | 8T4240 | RING - RETAINING | 3 | |
| 35 | 0941516 | BEARING-ROLLER AS | 3 | |
| 36 | 9X6032 | BOLT (HEX SOCKET HEAD) (M10X1.5X30mm) | 12 | |
| 37 | 7Y5235 | BOLT (M24X3X190-MM) | 20 | |
| 38 | 8T4167 | WASHER-HARD (26X44X4-MM THK) | 20 | |
| 39 | 7Y0646 | COVER | 1 | |
| 40 | 1U8846 | SEALANT (FOR LOIONS A) | 6 | |
| 41 | 7Y0664 | BEARING (ROLLER AS) | 9 | |
| USE AS REQUIRED | ||||
| METRIC PART |
|
