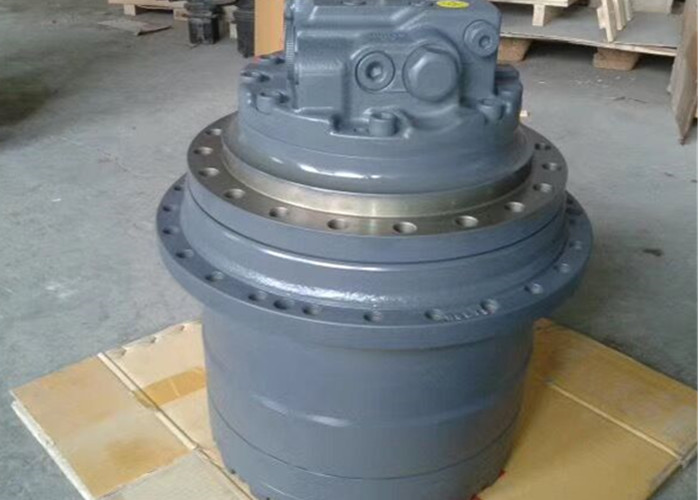

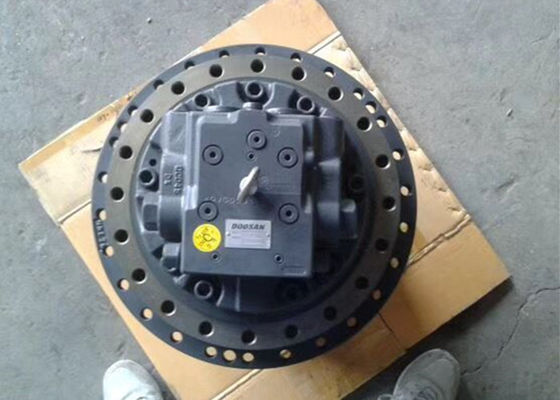

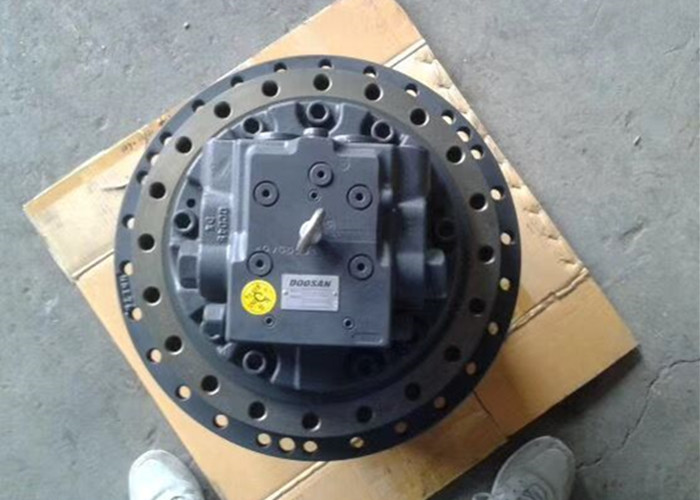

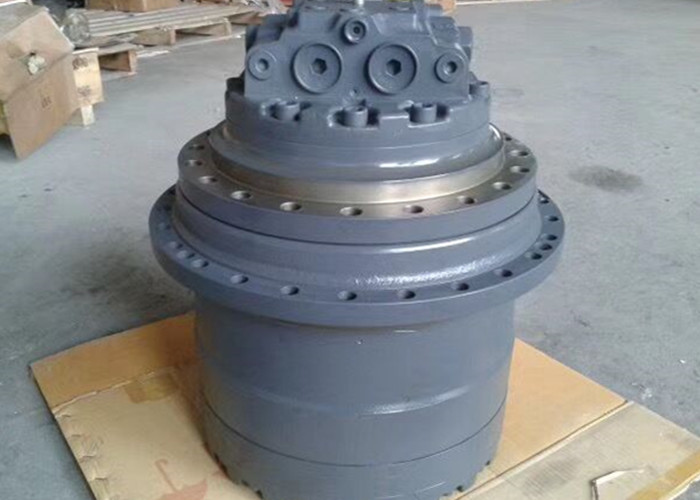

Belparts DX255 DX258 DH255 Excavator Travel Device K9005007 K1011403A Final Drive
Product Description
| Product name | Belparts DX255 DX258 DH255 Excavator Travel Device K9005007 K1011403A Final Drive |
| Place of Origin: | China(mainland) |
| Model: | DX255 DX258 DH255 |
| Part number: | K9005007 K1011403A Final Drive |
| MOQ: | 1 PCS |
| Payment term: | T/T & Western Union.... |
| Delivery time: | Within 2 days after receiving the payment |
| Packing: | Standard exporting packing or as required |
| Part No | K9005007 |
| Part Name | REDUCTION GEAR ASS'Y |
| Weight | 172 kg |
Number RG on the scheme, Qty 1
DX255LC; DX255LC (ERP);
TXC255LC-2;
| Model | Section node |
|---|---|
| DX255LC (ERP) | HYDRAULIC PARTS / TRAVEL REDUCTION GEAR |
| DX255LC | HYDRAULIC PARTS / TRAVEL REDUCTION GEAR |
| TXC255LC-2 | HYDRAULIC PARTS / TRAVEL REDUCTION GEAR |
List of spare parts
| # | Part No | Part Name | Comment | Qty. | Price request |
|---|---|---|---|---|---|
| 15 | 1.115-00138 | RING | 1 | ||
| 19 | 1.414-00009 | COUPLING | 1 | ||
| 20 | 1.412-00164 | PLATE, THRUST | 2 | ||
| 23 | 1.180-00355 | RING, SEAL | 5 kg | 1 | |
| 24 | 1.109-00146 | BEARING, ANGULAR BALL | 7 kg | 2 | |
| 26 | 1.180-00512 | SEAL, FLOATING | 2 kg | 1 SET | |
| 29 | S8010230 | O-RING | 1 | ||
| 30 | 2181-1116D4 | PLUG, RECHECK | 97123-04111 | 3 | |
| 32 | S0561471 | BOLT, HEX M12X1.75X85 | 20 | ||
| 33 | S5110701 | WASHER, SPRING | 1 kg | 20 | |
| 34 | 1.123-00026 | PIN, PARALLEL | 3 | ||
| 36 | S6250200 | BALL, STELL | 1 | ||
| 39 | S8000081 | O-RING | 2 | ||
| 40 | S8003401 | O-RING | 1 | ||
| - | K1011413A | DEVICE, TRAVEL | 321 kg | 2 | |
| RG | K9005007 | REDUCTION GEAR ASS'Y | 172 kg | 1 | |
| RG1 | K9005008 | HUB ASS'Y | 1 | ||
| 1 | *NA00546 | HUB | SIS | 1 | |
| 4 | *NA00495 | GEAR, RING A | 1 | ||
| 27 | 1.123-00107 | PIN, PARALLEL D12X63 | 10 | ||
| RG2 | K9005010 | SPINDLE ASS'Y | 67 kg | 1 | |
| 2 | *NA01154 | SPINDLE | 1 | ||
| 8 | 1.404-00002 | GEAR, COUPLING | 8 kg | 1 | |
| 35 | S2224471 | BOLT, SOCKET M8X2.5X40 | 10 | ||
| 17 | 1.123-00034 | PIN | 10 | ||
| RG3 | 1.230-00053 | CARRIER ASS'Y | 33 kg | 1 | |
| 3 | 1.230-00054 | CARRIER | 29 kg | 1 | |
| 6 | 1.404-00007 | GEAR, CLUSTER | 9 kg | 3 | |
| 9 | 1.405-00121 | SHAFT, CLUSTER | 3 kg | 3 | |
| 14 | 1.114-00541 | COLLAR, THRUST | 6 | ||
| 25 | 1.109-00145 | BEARING, NEEDLE | 6 | ||
| 5 | 1.104-00003 | GAER, RING B | 17 kg | 1 | |
| 7 | 1.403-00111 | GEAR, SUN | 1 kg | 1 | |
| 12 | 1.540-00004 | PIECE, DISTANCE | 1 | ||
| 13 | 1.430-00030 | COVER | 15 kg | 1 |
Advantages
v Strong part number database
If you can provide the right model and part number, we can supply the right product.
v Professional and experienced salesperson
Our founder has been into this field for more than 6 years, with rich experiences.
v Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
v Good management system
No matter how big or small order, as long as customers place the order, we will provide exporting services free of charge.
v Good service attitude
As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.
We are strict with the quality of products, We stick to provide high-quality products and good services to customers and attach great importance to the material and manufacturing technique of products to ensure the interests of our customers!
In the future, we will continue to learn more professional knowledge about the excavator parts and increase our procurement and sales experience, to provide customers with better products and services!
