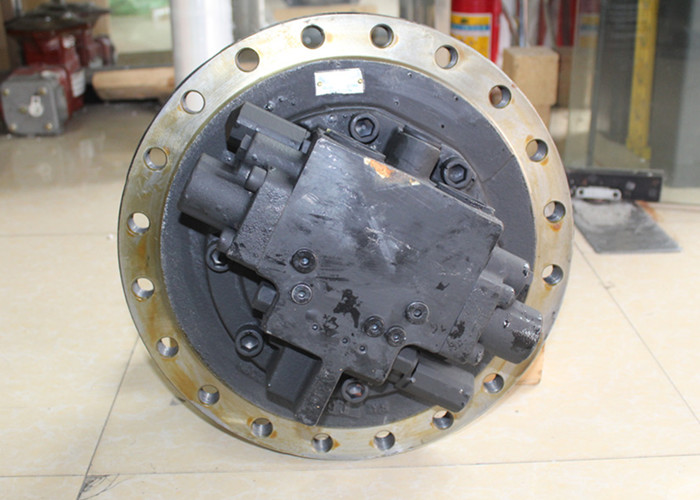

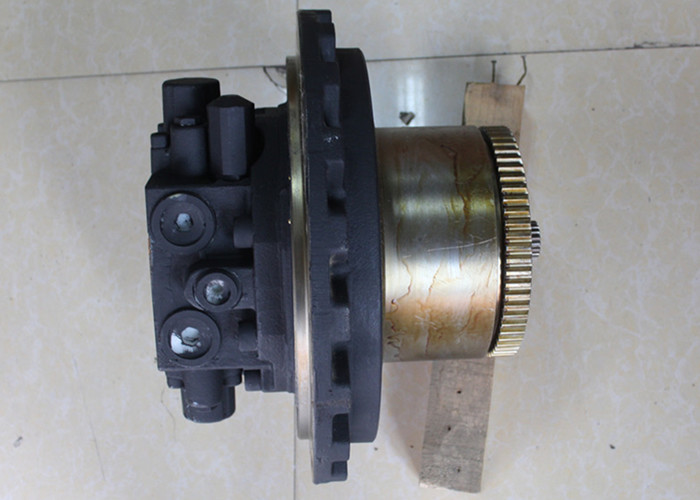

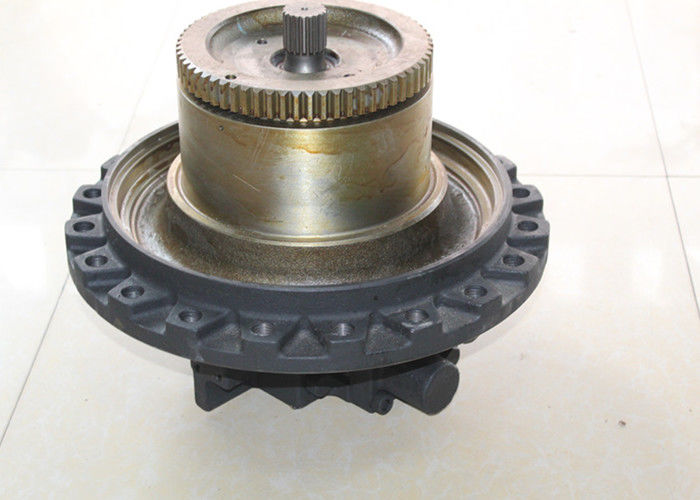

SOLAR 255LC-V 250LC-V Doosan final drive travel motor Daewoo K9000395
Product Description
Spare part K9000395 MOTOR, TRAVEL (Doosan)
|
Part No |
K9000395 |
|
Part Name |
MOTOR, TRAVEL |
| Part No | Part Name |
|---|---|
| 401-00092 | MOTOR, TRAVEL |
| 21622Z90685-01 | MOTOR, TRAVEL |
SOLAR 255LC-V; SOLAR 255LC-V; SOLAR 250LC-V;
| Model | Section node |
|---|---|
| SOLAR 255LC-V | HYDRAULIC PARTS / TRAVEL MOTOR |
| SOLAR 255LC-V | HYDRAULIC PARTS / TRAVEL MOTOR |
| SOLAR 250LC-V | HYDRAULIC PARTS / TRAVEL MOTOR |
| # | Part No | Part Name | Comment | Qty. | Price request |
|---|---|---|---|---|---|
| 61 | 181-00334 | PLUG | 10 | ||
| 62 | 181-00335 | PLUG | 1 | ||
| 63 | 181-00336 | PLUG | 3 | ||
| - | 401-00023A | TRAVEL DEVICE | 271 kg | 2 | |
| - | K9000395 | MOTOR, TRAVEL | 1 | ||
| 27 | K9000396 | CASING | 43 kg | 1 | |
| 28 | *NA00404 | COVER, REAR | 1 | ||
| 29 | 441-00007 | CYLINDER BLOCK | 5 kg | 1 | |
| * | 223-00017 | RETAINER KIT | 1 | ||
| 30 | *NA00924 | RETAINER, SHOE | 1 | ||
| 38 | *NA00567 | JOINT, BALL | 1 | ||
| 31 | 412-00009 | PLATE, FRICTION | 3 | ||
| 32 | 452-00019 | PISTON, BRAKE | 2 kg | 1 | |
| 33 | 352-00013 | PLATE, SEPARATING | 4 | ||
| 34 | K9000397 | PLATE, VALVE | 1 | ||
| 35 | 405-00012 | SHAFT | 2 kg | 1 | |
| 36 | K9000398 | COUPLING | 1 | ||
| * | K9000399 | SWASH PLATE KIT | 1 | ||
| 37 | *NA00836 | PLATE, SWASH | 1 | ||
| 48 | *NA00810 | PIVOT | 2 | ||
| 39 | 429-00008 | SPRING, HOLDER | 1 | ||
| 40 | 221-00005 | PISTON ASS'Y | 3 kg | 1 | |
| 41 | 180-00212 | RING D | 1 | ||
| 58 | K9000400 | SHIM KIT | 1 | ||
| 59 | S5710881 | PIN, PARALLEL | 1 | ||
| 60 | 181-00077 | PLUG | 1 | ||
| 69 | 420-00005 | VALVE, OVER LOAD RELIEF | 1 kg | 2 | |
| 70 | *NA01161 | SPOOL | C0121-55101 | 1 | |
| 71 | 181-00338 | PLUG | 1 | ||
| 79 | 429-00010 | HOLDER, SPRING | 2 | ||
| 80 | 426-00062 | VALVE, RESTRICTION | 2 | ||
| 81 | 129-00058 | SPRING | 2 | ||
| 85 | S2215371 | BOLT, SOCKET (M12X1.75X36) | 8 | ||
| 900 | 621-00592 | REAR COVER SET, T/MOTOR | 19 kg | 1 | |
| * | 401-00023KT | SEAL KIT, TRAVEL MOTOR | 1 | ||
| 55 | 109-00107 | BEARING, TAPER ROLLER | 1 | ||
| 56 | 109-00108 | BEARING, TAPER ROLLER | 1 | ||
| 57 | S2221571 | BOLT HEX SOCKET HD CL | 8 | ||
| 45 | 115-00045 | RING, RETAINING | 1 | ||
| 46 | 409-00017 | PISTON, SHIFTER | 1 | ||
| 47 | 148-00016 | BALL, STEEL | 1 | ||
| 42 | 180-00213 | RING D | 1 | ||
| 43 | 420-00103 | VALVE, CHECK | 3 | ||
| 44 | S6510320 | RING, RETAINER(C-TYPE) | 1 | ||
| 52 | 129-00053 | SPRING, CHECK VALVE | 3 | ||
| 53 | 129-00054 | SPRING, CYLINDER | 9 | ||
| 54 | 129-00055 | SPRING, BRAKE | 12 | ||
| 64 | 181-00337 | PLUG | 2 | ||
| 65 | S8000081 | O-RING | 5 | ||
| 66 | S8000111 | O-RING | 1BP11 | 4 | |
| 49 | 180-00214 | SEAL, PISTON | 1 | ||
| 50 | 426-00010 | VALVE, RESTRICTION | 2 | ||
| 51 | 180-00215 | SEAL, OIL | 1 | ||
| 72 | 429-00009 | HOLDER, SPRING | 1 | ||
| 74 | 129-00056 | SPRING | 1 | ||
| 75 | 181-00339 | CONNECTOR | 1 | ||
| 67 | S8000141 | O-RING | 1BP14 | 2 | |
| 68 | 180-00216 | O-RING | 1 | ||
| 76 | *NA01167 | SPOOL ASS'Y | 1 | ||
| 77 | 403-00002 | COVER | 2 | ||
| 78 | 129-00057 | SPRING | 2 | ||
| 82 | 181-00340 | PLUG | 2 | ||
| 83 | 2180-1217D67 | O-RING | 2 | ||
| 84 | S8000091 | O-RING | 1BP9 | 2 |
|
| EXCAVATOR MODEL NUMBER |
| PC56-7 PC60-8 PC70-8 PC110-7 PC130-7 PC160-7 PC200-8 PC200LC-8 PC210-8 PC210LC-8 PC220-8 PC240LC-8 HB205-1 HB215LC-1 PC270-7 PC300-7 PC360-7 PC400-8 PC450-8 OTHERS |
| 300 301 302 303 304 305 306 307 311 312 313 314 315 318 320 323 324 326 329 328 336 340 345 349 OTHERS |
| SK55SR-5 SK55SRX SK60-C SK60-8 SK70SR-2 SK75-8 SK130 SK130-8 SK135SR-2 SK140LC SK140LC-8 SK200-8 SK210LC-8 SK250-8 SK260LC-8 SK270D SK330-8 SK350LC-8 SK380D SK460-8 SK480 SK480-8 SK495D SK850LC OTHERS |
| ZAXIS60 ZAXIS70 ZAXIS120 ZAXIS130 ZAXIS200 ZAXIS200-3 ZAXIS210 ZAXIS210LC ZAXIS210LC-3 ZAXIS210H ZAXIS210H-3 ZAXIS240-3 ZAXIS250 ZAXIS250LC ZAXIS250LC-3 ZAXIS250H ZAXIS250H-3 ZAXIS260LCH-3 ZAXIS270 ZAXIS270-3 ZAXIS330 ZAXIS330-3 ZAXIS360 OTHERS |
| DH55 DX60 DH60-7 DX75 DX80 DX120 DX150LC DH150LC-7 DH215-9 DH215-9E DH220LC-9E DH225LC-9 DX260LC DX300LC DH300LC-7 DX345LC DH370LC-9 DX380LC DX420LC DH420LC-7 DX500LC DH500LC-7 DX700LC OTHERS |
| R55-7 R60 R80-7 R110-7 R150 R215 R225 R265 R275 R305 R335 R375 R385 OTHERS |
| EC55B EC60 EC80 EC140B EC200 EC210B EC220 EC240B EC250 EC300 EC350 EC360B EC380 EC460B EC480 EC700B OTHERS |
|
8052 8060 8061 JS85 JS130 JS145 JS200 JS210 JS220 JS230 JS240 JS240LC JZ255 JS290 JS360 JS370 OTHERS |
Product feature
1. Standard product design
2. High quality material selection
3. Advanced imported manufacture & testing equipment
4. Advanced manifacturing process and production technology
5. in the line with global standards
6. By long time testing, proved to be good condition
1. Good quality & cheap price
2. Suitable transport & fast delivery
3. Maintenance guidance & patiently resolved
FAQ
1.What is the warranty time of the products?
The warranty time is 6/12 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T, Western union, PayPal (for small amount) and Alibaba trade assurance
