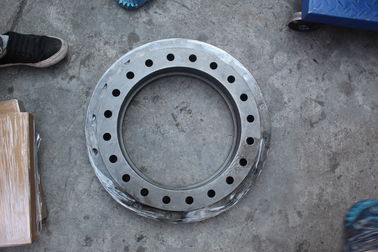

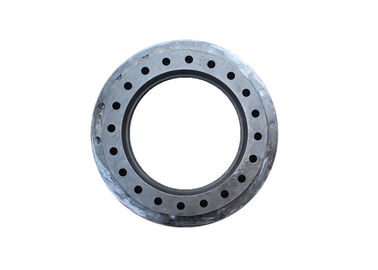

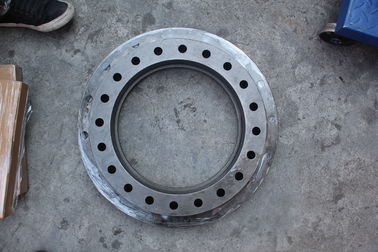

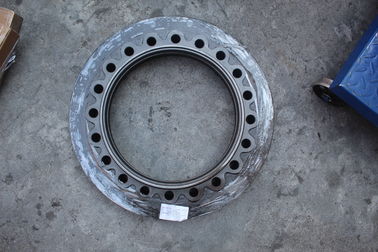

EC360 EC360B EC330B Travel Gearbox Planetary Gear Parts Hub SA7117-00540 Final Drive Housing
Product description:
| Appliion | Excavator |
| Part name | Travel gearbox housing |
| Excavator model | EC360 EC360B EC330B |
| Part number | SA7117-00540 |
| Quality | Aftermarket |
| Warranty | 3 months |
| Condition | Brand new |
| MOQ | 1 pieces |
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| SA7117-45060 | [1] | Travel Gearbox | ||
| 1. | SA7117-00540 | [1] | Housing | |
| 2. | SA1036-00320 | [2] | Absorbent | |
| 3. | SA1036-00050 | [1] | Gear | |
| 4. | VOE947695 | [20] | Hex. socket screw | |
| 5. | SA1036-00330 | [1] | Seal | |
| 6. | SA1036-00390 | [2] | Shim | T=0.8MM |
| SA1036-00400 | [2] | Shim | T=0.9MM | |
| SA1036-00410 | [2] | Shim | T=1.0MM | |
| SA1036-00420 | [2] | Shim | T=1.2MM | |
| SA1036-00430 | [1] | Shim | T=1.5MM | |
| SA1036-00440 | [1] | Shim | T=2.3MM | |
| 7. | SA7117-00570 | [1] | Retainer | |
| 8. | VOE997446 | [18] | Hexagon screw | |
| 9. | SA1036-00290 | [2] | Thrust ring | |
| 10. | SA1036-00260 | [1] | Sun gear | |
| 11. | VOE14517932 | [1] | Cover | |
| 12. | SA1036-00450 | [1] | Shim | T=0.5MM |
| SA1036-00460 | [1] | Shim | T=1.0MM | |
| 13. | SA9016-21007 | [20] | Hexagon screw | |
| 14. | SA9023-11006 | [2] | Set screw | |
| 15. | VOE14883847 | [3] | Plug | |
| 16. | SA7117-00530 | [1] | Planet carrier | |
| 17. | SA7117-00560 | [1] | Gear | |
| 18. | SA1036-00220 | [4] | Planetary Gear | |
| 19. | SA1036-00240 | [4] | Needle bearing | |
| 20. | SA1036-00180 | [8] | Washer | |
| 21. | SA1036-00230 | [4] | Pin | |
| 22. | VOE13951991 | [4] | Spring pin | |
| 23. | SA7117-00520 | [1] | Carrier | |
| 24. | SA7117-00550 | [1] | Carrier | |
| 25. | SA1036-00310 | [1] | Thrust ring | |
| 26. | SA1036-00280 | [1] | Sun gear | |
| 27. | SA1036-00300 | [1] | Ring | |
| 28. | SA1036-00200 | [1] | Ring | |
| 29. | SA1036-00160 | [3] | Planetary Gear | |
| 30. | SA1036-00190 | [3] | Needle bearing | |
| 31. | SA1036-00180 | [6] | Washer | |
| 32. | SA1036-00170 | [3] | Pin | |
| 33. | SA9325-06012 | [3] | Spring pin | |
| 34. | SA7117-00510 | [1] | Planet carrier | |
| 35. | SA1036-00080 | [1] | Planet carrier | |
| 36. | SA1036-00100 | [3] | Pin | |
| 37. | SA9325-06012 | [3] | Spring pin | |
| 38. | SA1036-00270 | [1] | Sun gear | |
| 39. | SA1036-00140 | [1] | Ring | |
| 40. | SA1036-00090 | [3] | Planetary Gear | |
| 41. | SA1036-00130 | [3] | Needle bearing | |
| 42. | SA1036-00110 | [3] | Washer | |
| 43. | SA1036-00120 | [3] | Thrust washer | |
| 44. | VOE914472 | [3] | Snap ring | |
| 45. | VOE990557 | [3] | O-ring |
