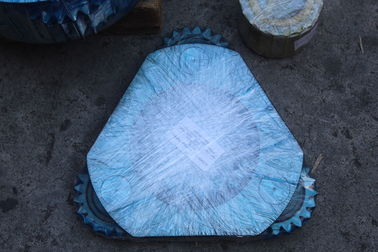

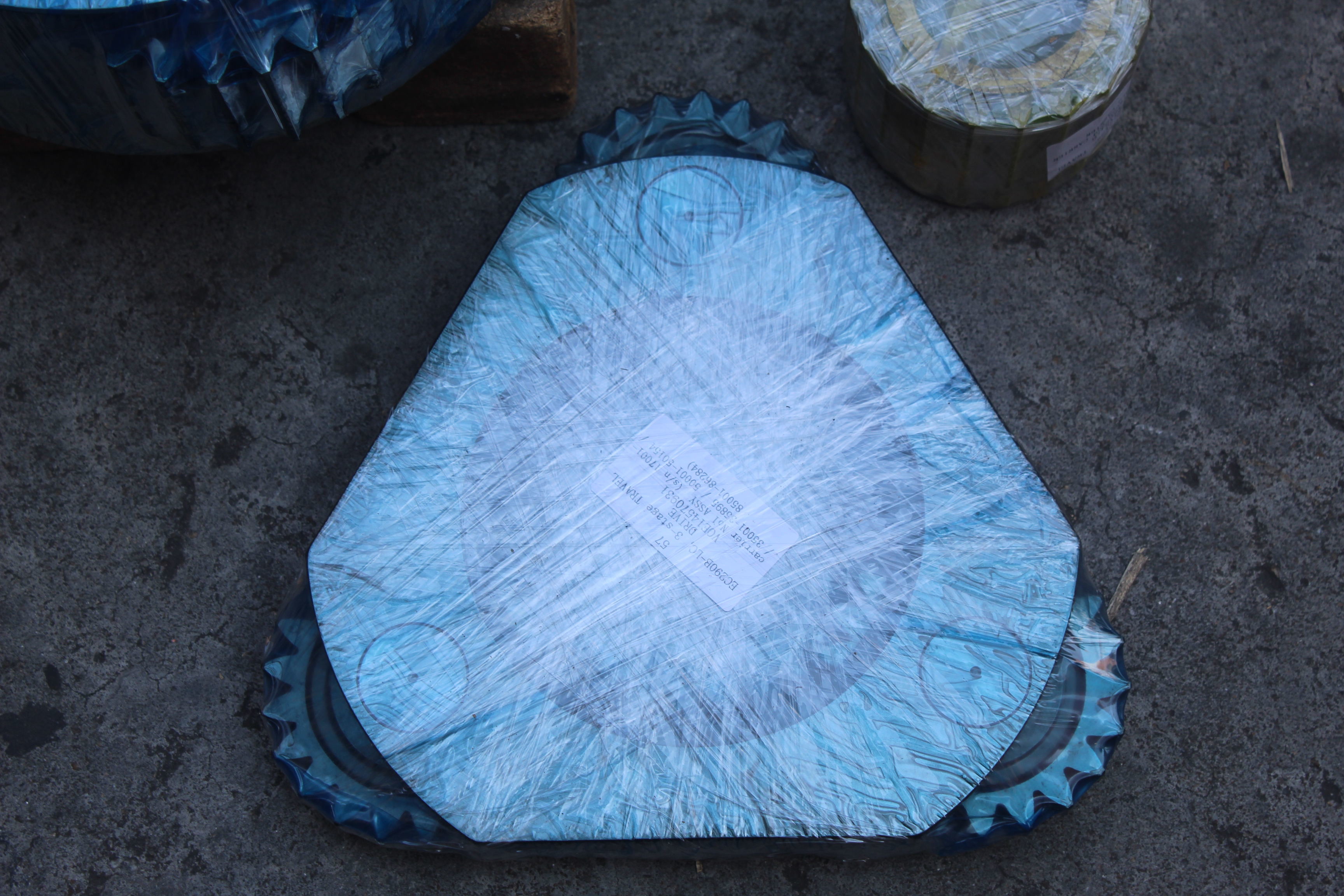

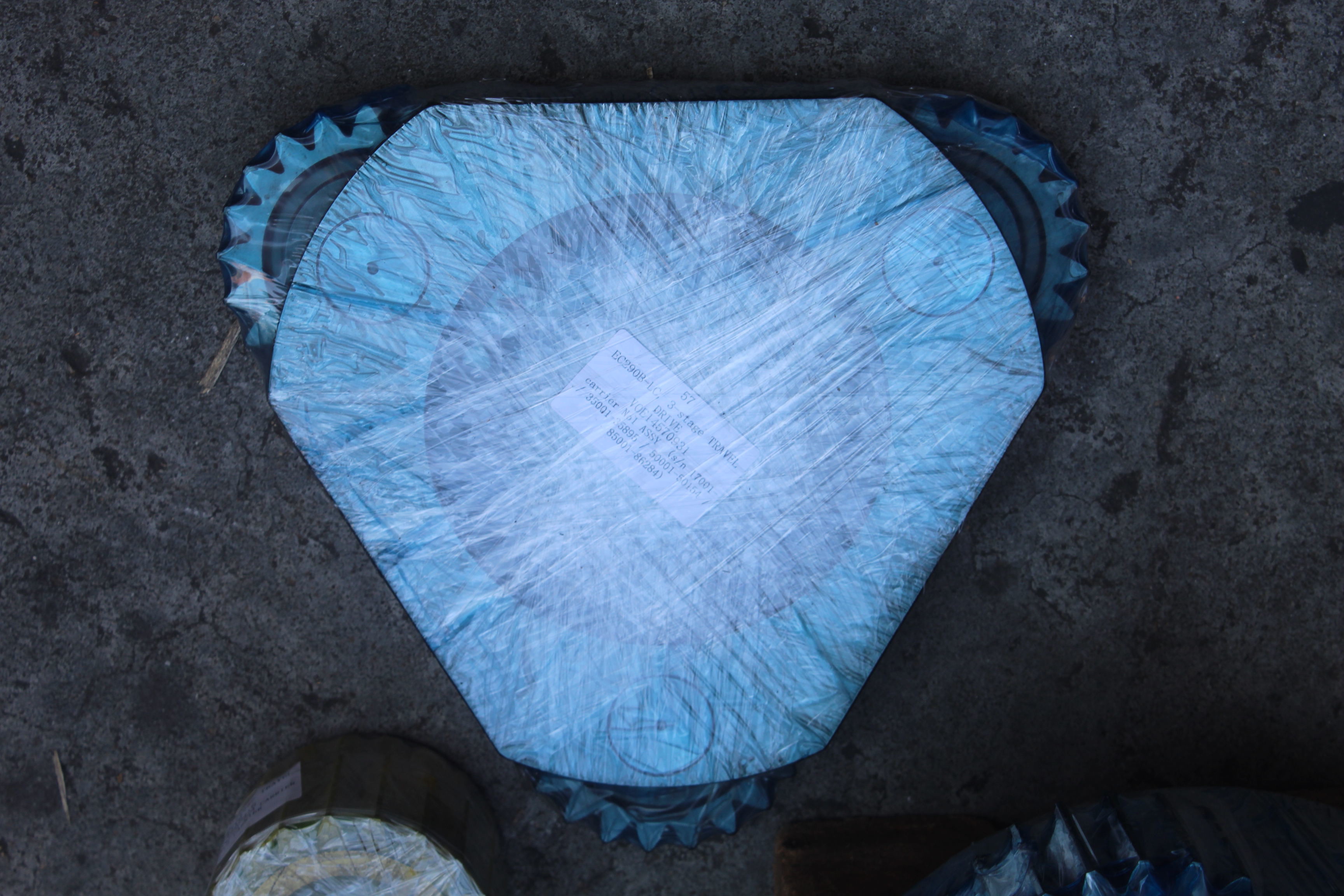

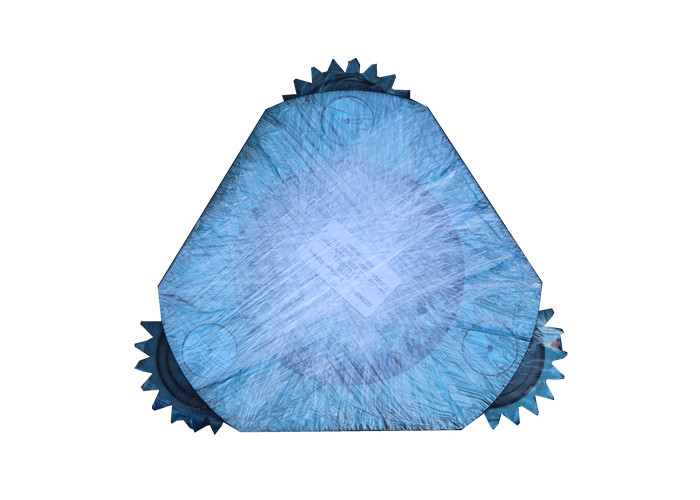

Excavator Gear Parts VOE14570931 EC240C EC290B EC290C Final Drive 1st Spider

  • Excavator Gear Parts VOE14570931 EC240C EC290B EC290C Final Drive 1st Spider
  • Excavator Gear Parts VOE14570931 EC240C EC290B EC290C Final Drive 1st Spider
  • Excavator Gear Parts VOE14570931 EC240C EC290B EC290C Final Drive 1st Spider
  • Excavator Gear Parts VOE14570931 EC240C EC290B EC290C Final Drive 1st Spider
Place of Origin China
Brand Name Belparts
Model Number EC240C EC290B EC290C
Minimum Order Quantity Negotiable
Price Negotiated price
Packaging Details Standard shipping package
Delivery Time Within 2-3 working days
Payment Terms T/T, Western Union, trade assurance
Supply Ability 1000 pieces/months

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Appliion Excavator Excavator Model EC240C EC290B EC290C
Part Number VOE14570931 Quality Aftermarket
Condition Brand New Warranty 3 Months
Highlight

planetary gear unit

,

planetary gear assembly
Leave a Message
Product Description

Excavator Planetary Gear Parts VOE14570931 EC240C EC290B EC290C Final Drive 2nd Spider



Product description:

Excavator Gear Parts VOE14570931 EC240C EC290B EC290C Final Drive 1st Spider 0

Appliion Excavator
Part name Travel gearbox 1st carrier ass'y
Excavator model EC240C EC290B EC290C
Part number VOE14570931
Quality Aftermarket
Country of original China
MOQ 1 PCS
Warranty 3 months



Excavator Gear Parts VOE14570931 EC240C EC290B EC290C Final Drive 1st Spider 1

Pos. Part No Qty Parts name Comments
  VOE14569763 [1] Gearbox S/N -19601/-50120/-86207/-358
  VOE14704139 [1] Travel gearbox S/N 19602-/50121-/86208-
1. VOE14570930 [1] Housing
2. VOE14566409 [1] Gear
3. SA9213-20000 [18] Spring washer
4. VOE60110006 [19] Hexagon screw
5. VOE14566432 [1] Cover
6. VOE14883847 [2] Plug
7. SA7117-38230 [2] Bearing S/N -19601/-50120/-86207/-358
7. VOE14704141 [2] Bearing S/N 19602-/50121-/86208-
8. VOE14566403 [1] Retainer
9. VOE14566404 [REQ] Shim THICK = 0,1 mm
9. VOE14566405 [REQ] Shim THICK = 0,5 mm
9. VOE14566406 [REQ] Shim THICK = 0,7 mm
9. VOE14566407 [REQ] Shim THICK = 0,8 mm
9. VOE14566408 [REQ] Shim THICK = 1,0 mm
10. VOE984088 [20] Hex. socket screw
11. VOE14566410 [1] Planet carrier
12. VOE14566411 [1] Planet carrier
13. VOE14566415 [5] Pin
14. VOE14566413 [4] Planetary gear
15. VOE14566414 [8] Washer
16. SA9325-06012 [4] Spring pin
17. SA8230-21020 [1] Thrust ring
18. VOE14566412 [4] Needle bearing
19. VOE14566416 [1] Gear
20. VOE14566418 [1] Planet carrier
21. VOE14566423 [3] Pin
22. VOE14566419 [1] Planet carrier
23. VOE14566421 [3] Planetary gear
24. VOE14566422 [6] Washer
25. SA9325-06012 [3] Spring pin
26. VOE14566420 [3] Needle bearing
27. VOE14566433 [1] Thrust washer
28. VOE14566424 [1] Gear
29. VOE14570931 [1] Planet carrier
29A. VOE14570933 [3] Gear
29B. VOE14566427 [3] Needle bearing
29C. VOE14566429 [6] Washer
29D. VOE14566430 [3] Pin
29E. SA9325-06012 [3] Spring pin
29F. VOE14569232 [1] Ring
30. VOE14566417 [1] Ring
31. VOE14570934 [1] Gear
32. VOE990557 [2] O-ring
33. VOE950677 [2] Pin
34. VOE914467 [1] Retaining ring
35. VOE14667679 [1] Seal



Our main parts:

Excavator Gear Parts VOE14570931 EC240C EC290B EC290C Final Drive 1st Spider 2

Our main products are excavator hydraulic pump, hydraulic spare parts, travel motor, swing motor, final drive assembly, swing device assembly, travel geabox, swing gearbox, gears, pilot pump, fan motor, relief valve.



The excavator brand we can deal with are KOMATSU, , KOBELCO, HYUNDAI, , JCB, , HITACHI, DOOSAN, DAEWOO, etc.

Excavator Gear Parts VOE14570931 EC240C EC290B EC290C Final Drive 1st Spider 3





FAQ:

1.What is the warranty time of the products?
The warranty time is 3/6 months based on the item details; We don't provide warranty time for original and used products.

2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.

3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.

4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.

5.How do I pay?
You can pay by T/T, Western union, PayPal (for small amount) and trade assurance.
