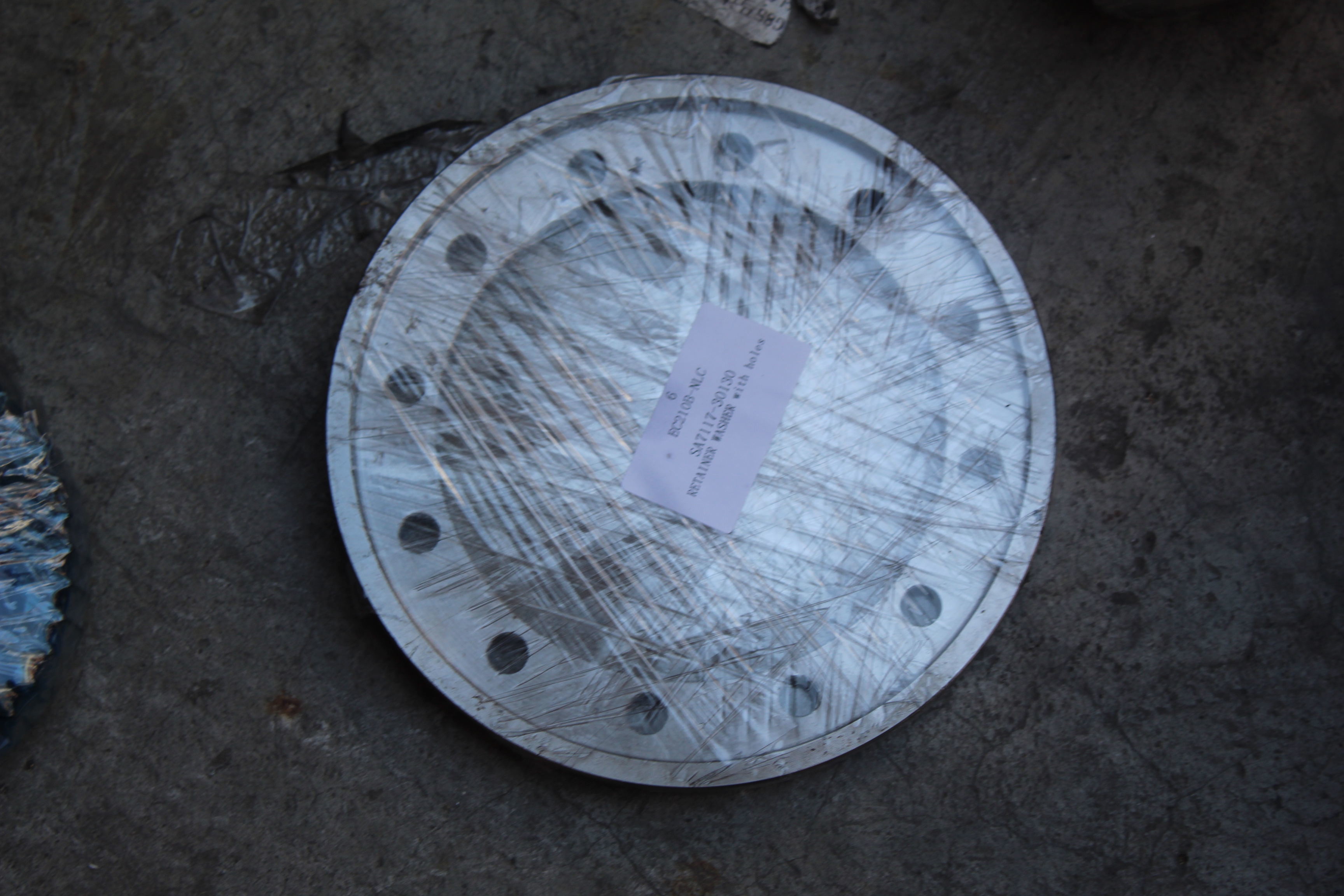

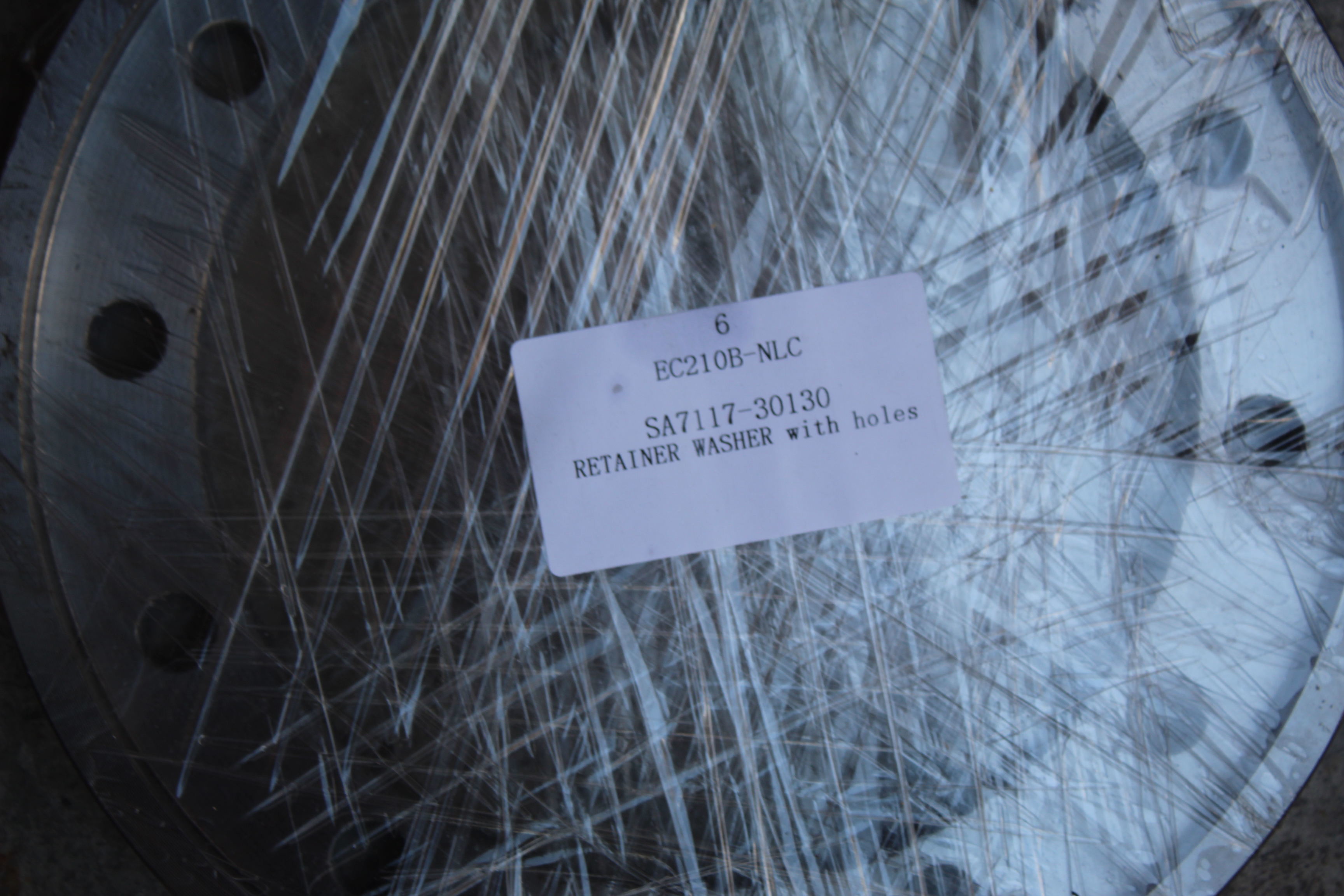

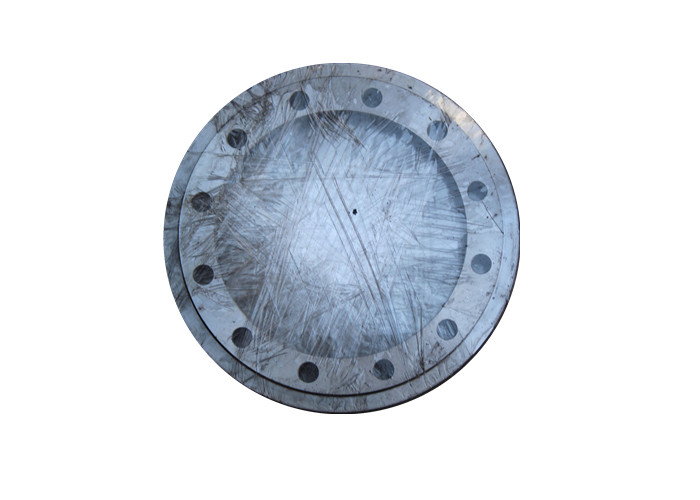

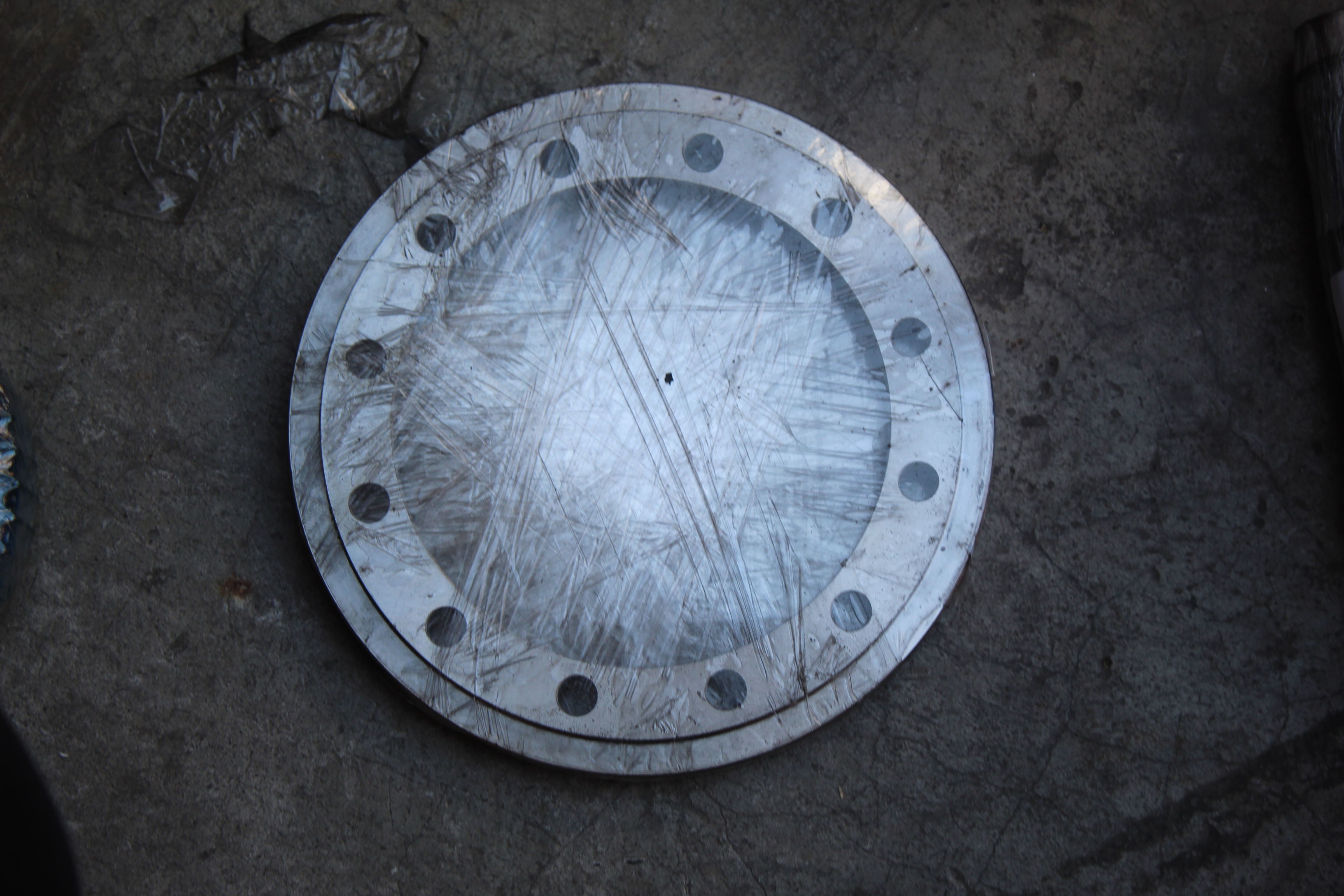

Planetary Gear Kit SA 7117-30130 Travel Gearbox EC140B EC160B EC180B EC210B Retainer
| Place of Origin | China |
|---|---|
| Brand Name | Belparts |
| Model Number | EC140B EC160B EC180B EC210B |
| Minimum Order Quantity | Negotiable |
| Price | Negotiated price |
| Packaging Details | Standard shipping package |
| Delivery Time | Within 2-3 working days |
| Payment Terms | T/T, Western Union, Aliabab trade assurance |
| Supply Ability | 1000 pieces/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Appliion | Excavator | Part Name | Travel Gearbox Retainer |
|---|---|---|---|
| Part Number | SA 7117-30130 | Excavator Model | EC140B EC160B EC180B EC210B |
| Quality | Aftermarket | Warranty | 3 Months |
| Highlight | planetary gear unit,planetary gear assembly |
||
Product Description
Planetary Gear Parts SA 7117-30130 Travel Gearbox EC140B EC160B EC180B EC210B Retainer
Product description:
| Appliion | Excavator |
| Part name | Travel gearbox retainer |
| Part number | SA 7117-30130 |
| Excavator model | EC140B EC160B EC180B EC210B EC140 EC210 |
| Quality | Aftermarket |
| Condition | Brand new |
| Warranty | 3 months |
| MOQ | 1 PCS |
List of spare parts:
| # | Part No | Part Name | Qty. | |
|---|---|---|---|---|
| 8277784 | ||||
| VOE 14528733 | Travel Gearbox | 1 | ||
| 1 | SA 7117-30100 | Housing SER NO 10001-14677SER NO 30001-30780 |
1 | |
| VOE 14522475 | Housing SER NO 14678-SER NO 30781 |
1 | ||
| 2 | SA 7117-30110 | Bearing | 2 | |
| 3 | SA 7117-30120 | Seal SER NO 10001-14677SER NO 30001-30780 |
1 | |
| VOE 14528713 | Seal SER NO 14678-SER NO 30781 |
1 | ||
| 4 | SA 7117-30140 | Shim 0,1 Thick |
1 | |
| SA 7117-30150 | Shim 0,9 Thick |
1 | ||
| SA 7117-30160 | Shim 1,0 Thick |
1 | ||
| SA 7117-30170 | Shim 1,2 Thick |
1 | ||
| 5 | SA 7117-30130 | Retainer | 1 | |
| 6 | VOE 978932 | Screw | 12 | |
| 7 | SA 9324-21212 | Pin | 2 | |
| 8 | SA 7117-30190 | Gear | 1 | |
| 9 | SA 7117-30180 | Coupling | 1 | |
| 10 | SA 7117-30200 | Carrier SER NO 10001-14677SER NO 30001-30780 |
1 | |
| VOE 14528723 | Carrier SER NO 14678-SER NO 30781 |
1 | ||
| 11 | SA 7117-30210 | Carrier | 1 | |
| 12 | SA 7117-30240 | Planetary Gear | 4 | |
| 13 | SA 7117-30230 | Needle Bearing | 8 | |
| 14 | SA 7117-30220 | Washer | 8 | |
| 15 | SA 7117-30250 | Pin SER NO 10001-14677SER NO 30001-30780 |
4 | |
| VOE 14528724 | Pin SER NO 14678-SER NO 30781 |
4 | ||
| 16 | SA 9325-06012 | Spring Pin | 4 | |
| 17 | SA 7117-30260 | Ring | 1 | |
| 18 | SA 7117-30270 | Carrier SER NO 10001-14677SER NO 30001-30780 |
1 | |
| VOE 14528727 | Carrier SER NO 14678-SER NO 30781 |
1 | ||
| 19 | SA 7117-30280 | Carrier SER NO 10001-14677SER NO 30001-30780 |
1 | |
| VOE 14528728 | Carrier SER NO 14678-SER NO 30781 |
1 | ||
| 20 | SA 7117-30290 | Gear | 1 | |
| 21 | SA 7117-30300 | Ring | 1 | |
| 22 | SA 7117-30340 | Planetary Gear | 3 | |
| 23 | SA 7117-30320 | Needle Bearing | 3 | |
| 24 | SA 7117-30310 | Washer | 6 | |
| 25 | SA 7117-30360 | Pin | 3 | |
| 26 | SA 9325-04010 | Spring Pin | 3 | |
| 27 | SA 7117-30260 | Ring | 1 | |
| 28 | SA 7117-30350 | Cover SER NO 10001-10177 |
1 | |
| VOE 14517929 | Cover SER NO 10178-SER NO 30001 |
1 | ||
| 29 | SA 7117-15230 | Pad | 1 | |
| 30 | SA 7117-30370 | Bolt | 20 | |
| 31 | SA 9023-11004 | Set Screw | 2 | |
| 32 | SA 9415-43042 | Plug SER NO 10001-10177 |
3 | |
| SA 9415-11052 | Plug SER NO 10178-SER NO 30001 |
3 | ||
| 33 | SA 7117-30330 | Gear | 1 | |
| 34 | SA 9511-12024 | O-ring SER NO 10178-SER NO 30001 |
3 | |
| 100 | VOE 14526220 | Reduction | 1 |
Our main products:
Our main products are excavator hydraulic pump, hydraulic spare parts, travel motor, swing motor, final drive assembly, swing device assembly, travel geabox, swing gearbox, gears, pilot pump, fan motor, relief valve.
The excavator brand we can deal with are KOMATSU, , KOBELCO, HYUNDAI, , JCB, , HITACHI, DOOSAN, DAEWOO, etc.
FAQ:
1.What is the warranty time of the products?
The warranty time is 3/6 months based on the item details; We don't provide warranty time for original and used products.
2.What is your delivery time?
Generally, we will arrange the goods within 24 hours after your payment; if not in stock, stocking time is 3-7 days.
3.What are your main products ?
We are specialized in spare parts for excavator hydraulic system, such as travel/swing motor, travel/swing gearbox/parts, hydraulic pump/parts,gear parts,etc.If you need other excavator parts, we also can supply as your requirements.
4.How can I do if there is something wrong with the goods?
First at all, we have confidence in the quality of our products, if you really found something wrong, please provide pictures or video for us and we will check. After it is confirmed, please return the goods to us and we will offer the correct item.
5.How do I pay?
You can pay by T/T, Western union, PayPal (for small amount) and trade assura
