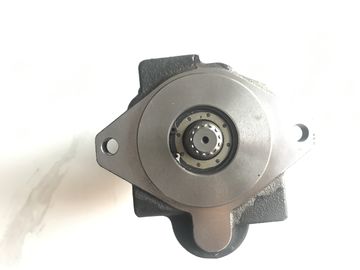

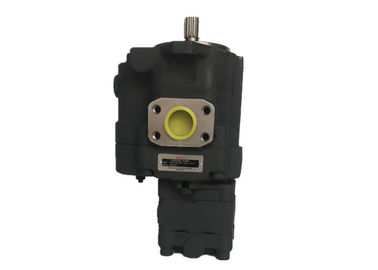

NACHI Excavator Hydraulic Pump PVD-1B-32P Original Mini Piston Pump PC20 PC30 VIO35
| Part name | Piston pump |
| Pump model | PVD-1B-32P |
| Excavator model | PC20 PC30 VIO35 3 tons excavator modles |
| Brand | Nachi |
| Quality | Original |
Spare parts of this pump:
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | 705-41-08001 | PUMP ASS'Y,(SBR(1)-10+10+8) | 1 | |
| 1 | 705-41-03001 | PUMP ASS'Y | 1 | |
| 1 | (*705-41-80210) | Bracket | 1 | |
| 1 | (*705-40-80610) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 1 | (*705-40-80620) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 2 | (*705-40-22011) | ,GEAR | 1 | |
| 3 | (*705-40-80311) | Carrier | 1 | |
| 3 | (*705-40-80610) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 3 | (*705-40-80620) | BUSHING,PLANE (DRIVEN SIDE) | 1 | |
| 4 | (*705-40-22342) | GEAR,DRIVE | 1 | |
| 5 | (*705-40-22511) | GEAR,DRIVEN | 1 | |
| 6 | 705-40-80710 | PLATE,SIDE | 2 | |
| 7 | 705-40-80730 | RING,BACK-UP | 2 | |
| 8 | 705-40-80740 | RING,SEAL | 2 | |
| 9 | 705-40-80630 | RING,SEAL | 2 | |
| 10 | 705-40-80810 | Shaft seal | 1 | |
| 11 | 705-40-80870 | Plate | 1 | |
| 12 | 04065-03515 | RING, SNAP | 1 | |
| 13 | 01252-31270 | Bolt | 4 | |
| 14 | 01643-51232 | WASHER, (WITHOUT EMERGENCY STEERING) | 4 | |
| 15 | 04020-00820 | PIN,DOWEL (WELDED) | 4 | |
| 16 | 705-67-01230 | PIN, DOWEL | 2 |
