HITACHI Travel Motor Assy HMGF68 HMGF57 ZX330 ZX330-3 ZX330-5 ZX350-3 Five Drive 9281920 9244944

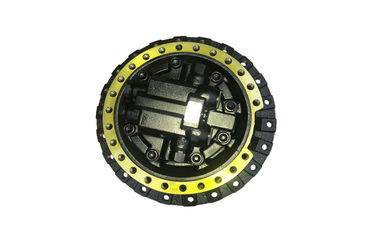

This HMGF68 HMGF57 final drive ass'y, the part number is 9281920 9244944, it is suitable for excavator models, such as ZX330 ZX330-3 ZX330-5 ZX350-3. If there is any need, welcome to give me your excaavtor model, part number, nameplate or old travel motor pictures that we will check it.
Final drive is suitable for ZAXIS330-3 330LC-EX 330-EX 330LC-DH 330LC-DM 330-AP-EX 330LC-3-EX 330-3-EX 330LC-3 350H-3 350LCH-EX 350H-EX 350LCH-3TRK-EX 350H-3-EX 350LCH-3-EX 350LCH-3 350K-3 350LCK-EX 350K-EX 350K-3-EX 350LCK-3-EX 350K-3HG 350LCK-3HG
The part number of differnt parts in the final drive:
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 9244944 | TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE) | 1 | ||
| 9256991 | TRAVEL DEVICE (FOR TRANSPORTATION) | 1 | ||
| 00 | 9251699 | . MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | |
| 00 | 9251477 | . MOTOR; OIL (FOR TRANSPORTATION) | 1 | |
| 03 | 4066695 | . SEAL; GROUP | 1 | |
| 04 | 4629674 | . BRG.; ROL. | 2 | |
| 05 | 1033164 | . DRUM | 1 | |
| 06 | 1033163 | . SPROCKET | 1 | |
| 07 | A590922 | . WASHER; SPRING | 22 | |
| 08 | J932265 | . BOLT | 22 | |
| 10 | 3094717 | . NUT | 1 | |
| 11 | 4470326 | . PLATE; LOCK | 1 | |
| 12 | J901225 | . BOLT | 2 | |
| 14 | 1032599 | . CARRIER | 1 | |
| 15 | 4621530 | . SPACER | 3 | |
| 16 | 3103555 | . GEAR; PLANETARY | 4 | |
| 17 | 4628768 | . BRG.; NEEDLE | 8 | |
| 18 | 4269470 | . PLATE; THRUST | 8 | |
| 19 | 4269452 | . PIN | 4 | |
| 20 | 4207947 | . PIN; SPRING | 4 | |
| 21 | 3103554 | . GEAR; SUN | 1 | |
| 23 | 1032600 | . GEAR; RING | 1 | |
| 24 | J931640 | . BOLT | 34 | |
| 26 | 1032598 | . CARRIER | 1 | |
| 27 | 3103553 | . GEAR; PLANETARY | 3 | |
| 28 | 4628766 | . BRG.; NEEDLE | 3 | |
| 29 | 4284521 | . PLATE; THRUST | 6 | |
| 30 | 4269451 | . PIN | 3 | |
| 31 | 4197763 | . PIN; SPRING | 3 | |
| 32 | 3103552 | . GEAR; SUN | 1 | |
| 34 | 1032597 | . CARRIER | 1 | |
| 36 | 3103551 | . GEAR; PLANETARY | 3 | |
| 37 | 4455098 | . BRG.; NEEDLE | 3 | |
| 38 | 4642993 | . PLATE; THRUST | 6 | |
| 39 | 4269472 | . PIN | 3 | |
| 40 | 4192020 | . PIN; SPRING | 3 | |
| 41 | 2051884 | . SHAFT; PROP. | 1 | |
| 43 | 1032596 | . COVER | 1 | |
| 44 | 4277474 | . PIN; STOPPER | 1 | |
| 45 | 4278168 | . BRG.; BALL | 1 | |
| 46 | 930451 | . RING; RETAINING | 1 | |
| 47 | 4609016 | . BOLT; SEMS | 20 | |
| 48 | 4245797 | . PLUG | 3 | |
| 51 | . NAME-PLATE | 1 | ||
| 52 | M492564 | . SCREW; DRIVE | 2 |
|
Other final drive ass'y we can supply:
TM02 TM03 TM03A TM04 TM04I TM05 TM06 TM06H TM06F TM07 TM09 TM18 TM22 TM22C TM40 ZX200-3 ZX210-3 ZX250-3 EC210 EC240 EC290 EC360 EC460, etc.
