Komatsu PC200-7 swing machinery gear carrier assembly swing carrier 2nd 22U-26-21580

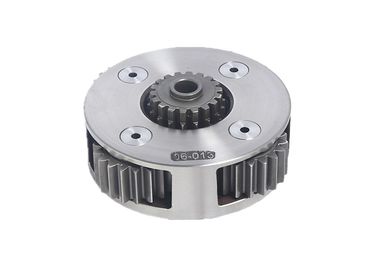

Product Description: Komatsu PC200-7 swing machinery gear carrier assembly
Professional manufacturer of excavator final drives and swing assembly, travel motor and swing motor, excavator travel reduction gearbox assy, swing reduction gearbox assembly, excavator planetary carrier assy, excavator sun gear, excavator planet gear, excavator gear shaft, excavator ring gear, excavator drive hub, excavator gearbox housing, excavator motor case, excavator travel and swing device cover, excavator bearing, excavator pin.
Our reduction gear parts cover most of the popular brands and various of models, including but not limited to: Komatsu, Hitachi, , Kobelco, Sumitomo, Daewoo, Volvo, Doosan, Hyundai, Kato, Samsung, Case, Yuchai, Sany, Sunward, and so on.
| Appliion |
PC200-7 swing machinery gear carrier assembly
|
| Part name |
carrier
|
| Material |
Steel
|
| Model |
PC200-7
|
| MOQ |
1PC
|
| Warranty |
6 months
|
| Payment term |
T/T, Western union, paypal, trade assurance or as required
|
| Shipment |
2 days after the payment received
|
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 1 | (706-7G-01040) | MOTOR ASS'Y | 1 | |
| 2 | 22U-26-21280 | Ring | 1 | |
| 3 | 07042-00312 | PLUG,(WITHOUT CORROSION RESISTOR) | 1 | |
| 4 | 22U-26-21190 | CASE | 1 | |
| 5 | 07029-00000 | VALVE, RELIEF | 1 | |
| 6 | 20Y-26-22330 | Bearing | 1 | |
| 7 | 22U-26-21340 | Bearing | 1 | |
| 8 | 22U-26-21560 | SHAFT? 15 TEETH | 1 | |
| 9 | 07012-00115 | SEAL,OIL | 1 | |
| 10 | 22U-26-21270 | Spacer | 1 | |
| 11 | 07000-15310 | O-RING,FLANGE | 1 | |
| 12 | 22U-26-21580 | Carrier | 1 | |
| 13 | 22U-26-21540 | Gear | 4 | |
| 14 | 20G-26-11240 | Bearing | 4 | |
| 15 | 20Y-27-21240 | WASHER,THRUST | 8 | |
| 16 | 20Y-26-22250 | Pin | 4 | |
| 17 | 20Y-27-21280 | Pin | 4 | |
| 18 | 20Y-26-21240 | Plate | 1 | |
| 19 | 112-32-11211 | BOLT? SHOE (Y0320-K1) | 1 | |
| 20 | 22U-26-21551 | Gear | 1 | |
| 20 | 22U-26-21550 | Gear | 1 | |
| 21 | 20K-22-11190 | O-ring | 1 | |
| 22 | 01010-81440 | CAPSCREW | 18 | |
| 22 | 01010-81435 | CAPSCREW - M14 (1)/(2) | 18 | |
| 22A | 01643-31445 | WASHER,(FOR QUICK SHIFT) (MITSUBISHI) | 18 | |
| 23 | 22U-26-21530 | Gear | 1 | |
| 24 | 22U-26-21570 | Carrier | 1 | |
| 25 | 22U-26-21520 | Gear | 3 | |
| 26 | 20Y-26-21281 | Bearing | 3 | |
| 27 | 22U-26-21230 | WASHER,THRUST | 6 | |
| 28 | 22U-26-21210 | Pin | 3 | |
| 29 | 04064-03515 | RING,BACK-UP | 6 | |
| 30 | 22U-26-21250 | WASHER,THRUST | 1 | |
| 31 | 22U-26-21510 | Gear | 1 | |
| 32 | 195-03-13241 | VALVE,WATER DRAIN | 1 | |
| 33 | 07270-21560 | Tube | 1 | |
| 34 | 07281-00197 | CLAMP,(WITH PRE-FUEL FILTER) | 1 | |
| 35 | 01010-81035 | BOLT,(F4320-52A0 -5 ) | 6 | |
| 36 | 01643-51032 | WASHER, (WITHOUT EMERGENCY STEERING) | 6 | |
| 37 | 20Y-26-31410 | Tube | 1 | |
| 38 | 20Y-26-31420 | Filler | 1 | |
| 39 | 20Y-26-31430 | GAUGE | 1 | |
| 40 | 20Y-26-31441 | Bracket | 1 | |
| 41 | 22U-26-21460 | Cap | 1 | |
| 42 | 07238-10630 | Connector | 1 | |
| 43 | 07283-32738 | U-BOLT, L.H. TUBE CLAMPING | 1 | |
| 44 | 04434-51710 | CLIP,SEE FIG. K4010-05A0 | 1 | |
| 45 | 01597-01009 | NUT,(FOR JAPAN) | 2 | |
| 46 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 2 | |
| 47 | 01010-81030 | BOLT,(WITH BODY POSITIONER) | 2 | |
| 48 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 2 | |
| 49 | 01010-81025 | BOLT,(FOR CANVAS CANOPY?HEAD GUARD) | 1 | |
| 50 | 01643-31032 | WASHER,(WITH AUTO EMERGENCY STEERING) | 1 | |
| 51 | 07000-15240 | O-RING,(F4350-60A0 -7 ) | 1 | |
| 52 | 01010-82060 | BOLT,REAR | 12 | |
| 53 | 01643-32060 | FLAT WASHER - M20 (HARDENED) | 12 |
Komatsu PC200-7 swing machinery gear carrier assembly
