Swing Gearbox Parts Swing 2nd Carrier Assy 2024894 EX120-1 EX100 EX100WD Excavator PLANET PINION CARRIER
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | PLANET PINION CARRIER | Model | EX120-1 EX100 EX100WD |
|---|---|---|---|
| Type | Swing Gearbox Parts | Appliion | For Excavator |
| Packing | Carton | Part Number | 2024894 |
| Highlight | planetary gear assembly,construction equipment parts |
||
Product Description
Excavator Swing Gearbox parts swing 2nd carrier assy 2024894 EX120-1 EX100 EX100WD excavator PLANET PINION CARRIER
Product Description of Hitachi 2024894 EX120-1 EX100 EX100WD SWING PLANET PINION CARRIER
| Model | HITACHI EX120 EX120-1 EX100 EX100WD |
| Part Name | PLANETARY CARRIER SWING 2ND |
| Part No. | 2036804 |
| Position | Swing Machine |
| Data | 30 Spline |
| Material | Steel |
| Processing | Casting |
Features of Hitachi 2024894 EX120-1 EX100 EX100WD SWING PLANET PINION CARRIER
| 1. Ready to be installed in your HITACHI EX120 EX120-1 EX100 EX100WD EXCAVATOR | |
| 2. Reliable, Good Quality and Good Looking. | |
| 3. Produce & Pack by ourselve. | |
| 4. Unused, Undamaged. | |
| 5. 90 days warranty, call or email with any questions. | |
| 6. Carton or Plywood packing (depend on the quantity). | |
| 7. Deliver to worldwide by Sea, Air, or Caurier |
Warranty of Chinese SWING PLANET PINION CARRIER
| 1. Warranty Type: We will replace the product which have quality problem. 2. Warranty Period: Supply 3 months warranty for the products from the date of arrival.Customer should check the items according to the order list after arrival.Contact with us and offer the data,photos of the problem items. 3. You need to pay for the replacement charge for following condition: * Wrong Order from customer. * Natural Disasters cause the damage. * Error installation. * The machine and reducer work over time and over load. * Lost by any condition. * Human element destroyed. * Corrode with rust during stock and running. * Warranty Expired. 4. Others They are the product easy to be rust away, please wrap them well. We just supply warranty for the products we are producing, except the Bearing, Seal, and some others we mention before order.If there is any problem about the products, installation or maintenance, please contact with us any time.We reserve the rights of final interpretation. |

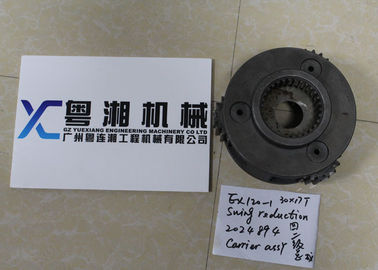

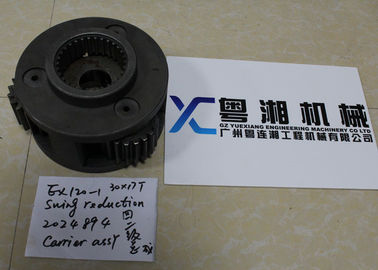

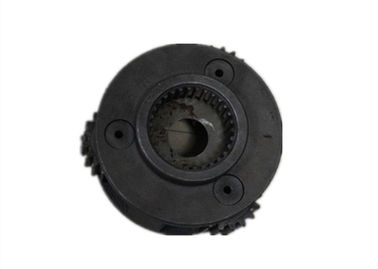

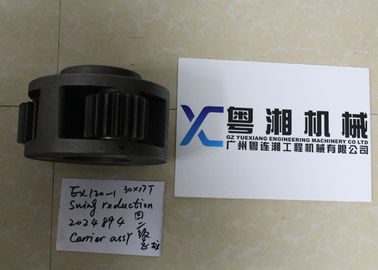

Pictures of Hitachi 2024894 EX120-1 EX100 EX100WD SWING PLANET PINION CARRIER
Schemes of the spare part 2024894 PLANET PINION CARRIER
Number 01 on the scheme, Qty 1
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 00 | 2023962 | CARRIER | 1 | |
| 01 | 2023965 | CARRIER | 1 | |
| 01 | 2023965 | CARRIER | ||
| 01 | 2023965 | CARRIER | ||
| 01 | 2023965 | CARRIER | ||
| 01 | 2024894 | CARRIER | 1 | |
| 02 | 4176070 | PLATE; THRUST | 1 | |
| 03 | 4195372 | PLATE; THRUST | 1 | |
| 04 | 4186262 | PIN | 3 | |
| 05 | 4177855 | PIN | 3 | |
| 05 | 4207801 | PIN | 3 | |
| 06 | 1010887 | HOUSING | 1 | |
| 06 | 1015518 | HOUSING | 1 | |
| 07 | 4063351 | PIN; SPRING | 6 | |
| 10 | 3037606 | GEAR; SUN | 1 | |
| 11 | 3037607 | GEAR; SUN | 1 | |
| 11 | 3038482 | GEAR; SUN | 1 | |
| 13 | 3037605 | GEAR; PLANETARY | 3 | |
| 14 | 4184840 | BRG.; NEEDLE | 3 | |
| 15 | 9727159 | GEAR; PLANETARY | 3 | |
| 16 | 4176071 | PLATE; THRUST | 12 | |
| 19 | 991350 | RING; RETAINING | 1 | |
| 20 | 969154 | BRG.; SPH.ROL. | 1 | |
| 21 | 4001398 | BRG.; SPH.ROL. | 1 | |
| 23 | 2023964 | GEAR; INTERNAL | 1 | |
| 23 | 2024895 | GEAR; INTERNAL | 1 | |
| 24 | 2023961 | GEAR; INTERNAL | 1 | |
| 26 | 2023963 | SHAFT; PROP. | 1 | |
| 27 | 3037604 | COVER | 1 | |
| 28 | J901032 | BOLT | 10 | |
| 29 | A590910 | WASHER; SPRING | 10 | |
| 30 | J401232 | PIN; KNOCK | 2 | |
| 35 | 4198921 | SEAL; OIL | 1 | |
| 35 | 4250325 | SEAL; OIL | 1 | |
| 37 | A811095 | O-RING | 1 | |
| 41 | 4194712 | COCK | 1 | |
| 46 | 94-2024 | PLUG | 1 | |
| 48 | 456336 | CORK | 2 | |
| 50 | 3038685 | SLEEVE | 1 | |
| 51 | 4204074 | RING; RETAINING | 1 | |
| 52 | 4204644 | MAGNET | 2 | |
| 53 | 4204645 | SCREW | 2 | |
| 54 | M492564 | SCREW; DRIVE | 2 | |
| 55 | 3053093 | NAME-PLATE | 1 | |
| 61 | 8049278 | COVER (FOR TRANSPORTATION) | 1 | |
| 62 | J901412 | BOLT (FOR TRANSPORTATION) | 6 | |
| 63 | A590914 | WASHER; SPRING (FOR TRANSPORTATION) | 6 | |
| 117 | 991342 | RING; RETAINING | 1 | |
| 131 | J901412 | BOLT | 12 | |
| 132 | A590914 | WASHER; SPRING | 12 | |
| 138 | J932065 | BOLT | 10 | |
| 140 | 4018545 | WASHER | 10 | |
| 144 | 3035979 | GAUGE; LEVEL | 1 | |
| 144 | 3043290 | GAUGE; LEVEL | 1 | |
| 145 | 4191881 | PIPE | 1 | |
| 145 | 4228687 | PIPE | 1 | |
| 146 | 94-2024 | PLUG | 1 | |
| 160 | 4199024 | MOTOR; OIL | 1 | |
| 160 | 4199024 | MOTOR; OIL | ||
| 160 | 4199024 | MOTOR; OIL | ||
| 160 | 4199024 | MOTOR; OIL | ||
| 160 | 4199024 | MOTOR; OIL | ||
| 160 | 4199024 | MOTOR; OIL | ||
| 160 | 4199024 | MOTOR; OIL | ||
| 160 | 4199024 | MOTOR; OIL | ||
| 160 | 4224917 | MOTOR; OIL | 1 | |
| 200 | 9097684 | SWING DEVICE (WITHOUT MOTOR) | 1 |
Our advantages :
| Best price with good quality product | For our main product , we have the best price, because we are the agent of the factory supplier , so our cost price will lower than other company , same quality product , our price will be better . |
| Professional & Experienced Salesperson | Our founder has been into this field for more than 7 years , with rich experiences.We will conduct professional knowledge training and assessment for sales staff every month . |
| Rigorous Serious Professional Attitude | About the parts , we will make sure it 100% before the shipment , if can not make sure it , maybe will ask you for more information about your parts , Never take any chances to deliver everything without make sure it 100% . |
| Detailed information of the product | We are professional on our main products , We have detailed pictures and detailed parameters for your main products , |
| Convenient &Fast & Affordable Delivery | We have lof of customers from more than 96 countries , and we have lof of professional shipping agents , will choose the best way with good price shipment way to send the parts to you , we have DHL , FEDEX ,UPS , Air ,Sea etc , will try our best to meet your requirement . |
FAQ
| 1 . If I only know the excavator model , but can not offer parts No., what should I do ? |
| If possible , you can send us pictures of old products , nameplate or the size for checking . |
| 2 . Do you have stock? |
| For our main products , our have stock for almost of them , the factory supplier warehouse is near us , if the parts we don't have stock , we will tell you before you order it . |
| 3 . What kind of payment terms can I choose ? |
| You can choose T/T , Western Union,Paypal etc . |
| 4 . When will the delivery be arranged after the payment |
| After we received the payment , we will arrange the shipment within 24 hours ; |
| 5 . How can I do if there is something wrong with the items ? |
| First of all , I have confidence in the quality of our products , if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item . |
| 6 . What is your main products ? |
| Our main products are final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can send it to us . We will try our best to find the parts what you need . |
