YN15V00037S007 SK200-8 Planetary Gear Parts Travel Gearbox 1st 2nd Carrier Assy

YN15V00037S007 SK200-8 Planetary Gear Parts Travel Gearbox 1st 2nd Carrier Assy

Products - Planetary Gear Parts
  • High Light

    planetary gear assembly

    ,

    construction equipment parts

  • Model
    SK200-8
  • Brand Name
    Belparts
  • Appliion
    Kobelco Excavator
  • Material
    Steel
  • Place Of Origin
    Guangdong, China (Mainland)
  • After-sales Service
    Online Support
  • Place of Origin
    China
  • Brand Name
    Belparts
  • Model Number
    SK200-8
  • Minimum Order Quantity
    1PCS
  • Price
    Negotiated price
  • Packaging Details
    Wooden case
  • Delivery Time
    2-5days
  • Payment Terms
    T/T, Western Union,Paypal
  • Supply Ability
    500 pieces per month

YN15V00037S007 SK200-8 Planetary Gear Parts Travel Gearbox 1st 2nd Carrier Assy

  • YN15V00037S007 SK200-8 Planetary Gear Parts Travel Gearbox 1st 2nd Carrier Assy
  • YN15V00037S007 SK200-8 Planetary Gear Parts Travel Gearbox 1st 2nd Carrier Assy
Get Price Contact Now

Belparts travel gearbox YN15V00037S007 SK200-8 travel gearbox 1st 2nd carrier assy



Supply Ability



Supply Ability:       500 Piece/Pieces per Month



Packaging & Delivery



Packaging Details: Standard shipping package



Port:                      Huangpu



Lead Time:

Quantity(Pieces) 1 - 1 >1
Est. Time(days) 2 To be negotiated





YN15V00037S007 SK200-8 travel gearbox 1st 2nd carrier assy describe



Appliion Excavator
Part name Travel gearbox 1st 2nd carrier assy
Material Steel
Model SK200-8 YN15V00037S007
MOQ 1PC
Warranty 3 months
Payment term

T/T&Western Union &Paypal
Delivery Time Within 2 days after receiving the payment
Packing Standard shipping package

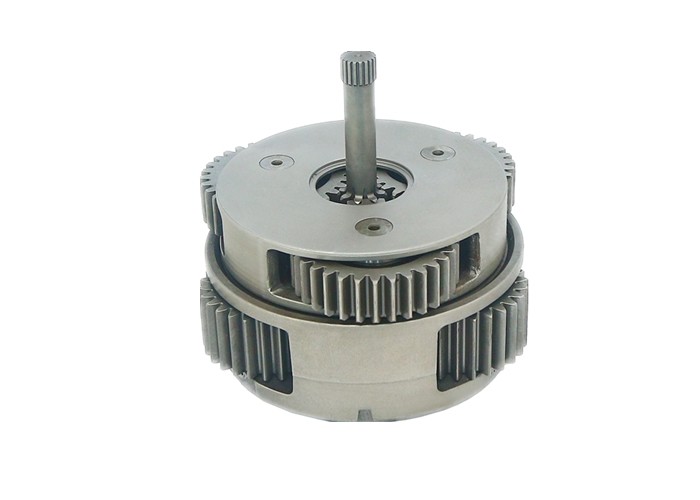

YN15V00037S007 SK200-8 travel gearbox 1st 2nd carrier assy Picture

YN15V00037S007 SK200-8 Planetary Gear Parts Travel Gearbox 1st 2nd Carrier Assy 0



(HC370-01-1[1]) - MOTOR ASSY (PROPELLING) Kobelco:

YN15V00037S007 SK200-8 Planetary Gear Parts Travel Gearbox 1st 2nd Carrier Assy 1



Parts on group (200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09):

Pos. Part No Qty Parts name Comments
. . YN15V00037F1 [1] HYDRAULIC MOTOR SM (propelling) Superseded by part number: YN15V00037F2
. . YN15V00037F2R [1] REMAN-HYD MOTOR KOB 200-8, SK210D-8, Both S/N YN11-45001 -, SK210DLC-8, SK210LC-8, Both S/N YQ11-06001 -, Reman For New P/N YN15V00037F1
. . YN15V00037F2C [1] CORE-MOTOR HYDRAULIC KOB Return Number
. . YN15V00037F2 [1] HYDRAULIC MOTOR KOB Assy (propelling)
1. YN15V00037S001 [1] HUB KOB
3. YN15V00037S003 [1] FLANGE KOB Carrier
4. YN15V00037S004 [1] GEAR KOB Sun
5. YN15V00037S005 [3] GEAR KOB Planetary
6. YN15V00037S006 [3] PIN KOB
7. YN15V00037S007 [1] GEAR KOB Carrier
8. YN15V00037S008 [1] GEAR KOB Sun
9. YN15V00037S009 [3] GEAR KOB Planetary
10. YN15V00037S010 [3] PIN KOB
11. YN15V00037S011 [6] WASHER KOB Thrust
12. YN15V00037S012 [6] WASHER KOB Thrust
13. YN15V00037S013 [1] PLATE KOB
14. YN15V00037S014 [1] COVER KOB
15. YN15V00037S015 [1] COUPLING KOB
16. YN15V00037S016 [3] PIN KOB
17. YN15V00037S017 [3] PIN KOB
22. YN15V00037S022 [2] LOCK WASHER KOB Lock Washer
23. YN15V00037S023 [1] SHIM KOB
24. YN15V00037S024 [2] BALL BEARING KOB Ball
27. YN15V00037S027 [3] ROLLER BEARING KOB Needle
28. YN15V00037S028 [3] ROLLER BEARING KOB Needle
29. YN15V00037S029 [1] SEAL KOB Floating
30. 2441U995S121 [3] PLUG KOB
31. ZD12P01800 [3] O-RING KOB ID 17.8mm x OD 20.2mm
35. ZS23C10035 [18] SCREW,Hex Socket Head, M10 x 35mm KOB Cap
36. ZR26X03200 [1] SNAP RING KOB Retaining
101. YN15V00037S101 [1] MANDREL KOB Spindle
102. YN15V00037S102 [1] SHAFT KOB
103. NSS [1] NOT SOLD SEPARAT CON Plate, Shoe
104. YN15V00037S104 [1] CYLINDER KOB Block
105. NSS [9] NOT SOLD SEPARAT CON Piston
106. NSS [9] NOT SOLD SEPARAT CON Shoe
107. YN15V00037S107 [1] PLATE KOB Retainer (For F1 ONLY)
. . YN15V00037S098 [1] PLATE KOB Retainer (For F2 ONLY)
108. YN15V00037S108 [1] BALL KOB Joint (For F1 ONLY)
. . YN15V00037S099 [1] BALL KOB Ball[ (For F2 ONLY)
109. YN15V00037S109 [1] PLATE KOB
112. YN15V00037S112 [1] PISTON KOB
113. YN15V00037S113 [8] SPRING KOB
114. YN15V00037S114 [9] SPRING KOB
115. YN15V00037S115 [3] PLATE KOB Friction
116. YN15V00037S116 [4] PLATE KOB Separator
119. YN15V00037S119 [1] SHIM KOB
132. YN15V00009S027 [1] OIL SEAL KOB
133. YN15V00009S019 [1] RING KOB Retaining
135. YN15V00037S135 [1] RING KOB
137. 2436U279S3 [1] PLUG KOB
138. 2436U1749S17 [1] PLUG KOB
139. YN15V00037S139 [1] RING KOB
149. YN15V00037S149 [1] ROLLER BEARING KOB Roller Superseded by part number: 26799950
150. YN15V00037S150 [1] ROLLER BEARING KOB Roller Superseded by part number: YN15V00009S032
161. NSS [1] NOT SOLD SEPARAT CON Piston
162. YN15V00037S162 [1] BALL KOB
163. NSS [1] NOT SOLD SEPARAT CON Seal
167. NSS [2] NOT SOLD SEPARAT CON Pivot
200. YN22V00036F1 [2] VALVE KOB Assy, Relief (See HC385)
301. YN15V00037S301 [1] FLANGE KOB
323. NSS [1] NOT SOLD SEPARAT CON Spool
324. YN15V00037S324 [2] PLUG KOB
325. YN15V00037S325 [2] SEAT KOB Spring
326. NSS [2] NOT SOLD SEPARAT CON Plug
327. NSS [2] NOT SOLD SEPARAT CON Valve
328. NSS [2] NOT SOLD SEPARAT CON Spring
329. YN15V00037S329 [2] O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro KOB Superseded by part number: ZD12P03400
330. YN15V00037S330 [2] SPRING KOB
331. NSS [2] NOT SOLD SEPARAT CON O-ring
341. YN15V00017S033 [1] PIN KOB
343. ZS23C16040 [8] CAPSCREW,Hex Socket Head, M16 x 40mm KOB SCREW Cap
345. 2436U1427S25 [15] PLUG KOB
363. YN15V00037S363 [1] SPOOL KOB
364. 2436R874S3 [1] FLEXIBLE JOINT KOB Connector
365. 2436R874S6 [1] PIN KOB
366. 2436R874S7 [1] SPRING KOB
367. 2436R874S5 [1] SPRING SEAT KOB
368. 2436U1317S13 [2] PLUG KOB
369. ZD12P01100 [2] O-RING KOB ID 10.8mm x OD 13.2mm
370. LC15V00023S062 [1] PLUG KOB
371. ZD12P01400 [2] O-RING KOB
372. LC15V00023S067 [2] RESTRICTOR KOB
373. LC15V00023S068 [2] SPRING KOB
374. YN15V00017S038 [5] PLUG KOB
375. ZD12P00800 [6] O-RING,1.9mm Thk x 7.8mm ID, 90 Duro KOB ID 7.8mm x OD 9.7mm
376. GN15V00010S024 [3] RESTRICTOR KOB
377. YN15V00017S017 [3] CHECK VALVE KOB
378. YN15V00017S026 [3] SPRING KOB
379. ZD12P01600 [1] O-RING KOB
380. YN15V00037S380 [1] O-RING KOB
397. 2483U254S19 [1] Name Plate
398. YN15V00037S398 [4] Rivet
399. YN15V00037S399 [1] Name Plate
. . YN15V00037R400 [1] PISTON KOB Repair Kit Consists Of Ref. 105x9, 106x9
. . YN15V00037R410 [1] PISTON KOB Repair Kit Consists Of Ref. 161x1, 163x1
. . YN15V00037R420 [1] PLATE KOB Repair Kit Consists Of Ref. 103x1, 167x2
. . YN15V00037R430 [1] VALVE KOB Repair Kit Consists Of Ref. 103x1, 323x1, 324x2, 325x2, 326x2, 327x2, 328x2, 329x2, 330x2, 331x2, 341x1, 343x8, 345x15, 363x1, 364x1, 365x1, 366x1, 367x1, 368x2, 369x2, 370x1, 371x2, 372x2, 373x2, 374x5, 375x6, 376x3, 377x3, 378x3, 379x1, 380x1
. . YN15V00037R440 [1] VALVE KOB Repair Kit Consists Of Ref. 323x1, 326x2, 327x2, 328x2, 331x2
. . YN15V00037R450 [1] SEAL KIT KOB Repair Kit Consists Of Ref. 31x3, 132x1, 135x1, 139x1, 329x2, 369x2, 371x2, 375x6, 379x1, 380x1
. . YN15V00037R460 [1] REPAIR KIT KOB Repair Kit Consists Of Ref. 107x1, 108x1 (F2 Only)
