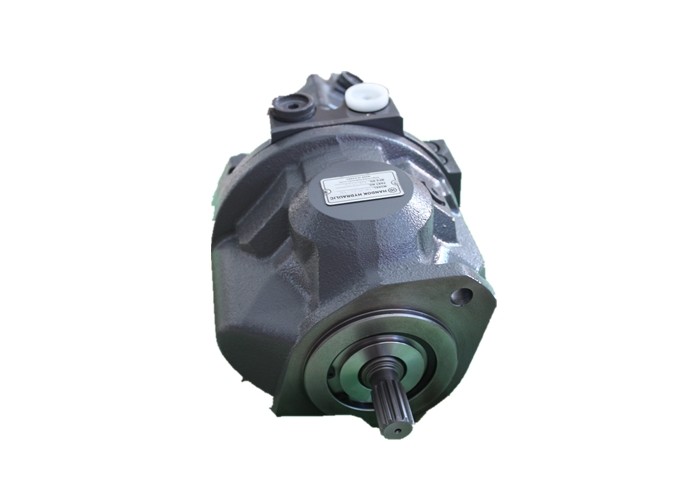

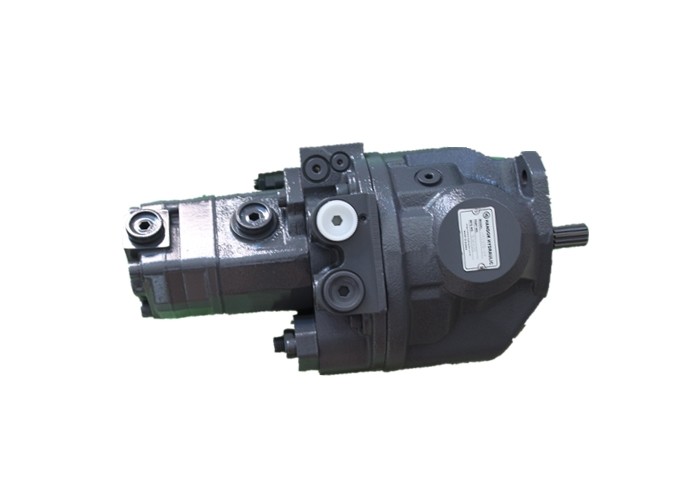

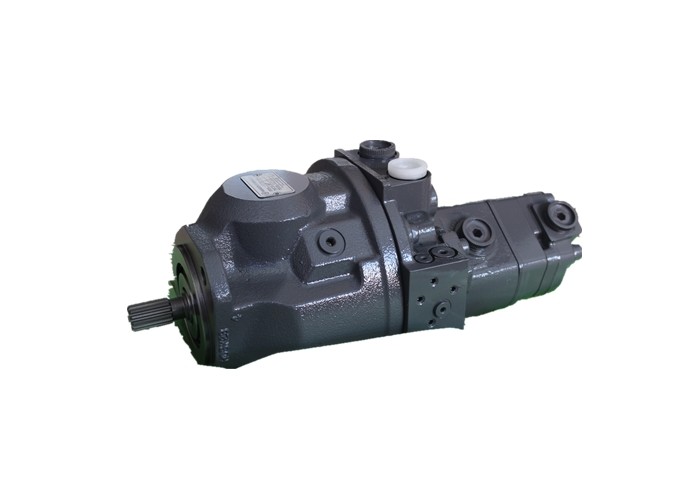

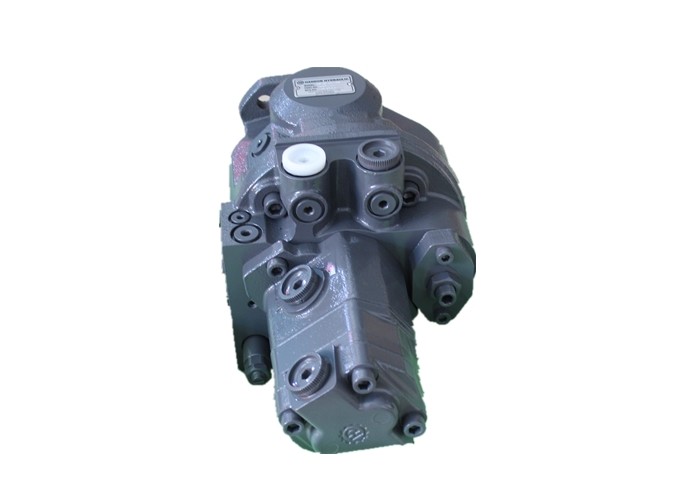

Hyundai R55-7 31M8-10020 AP2D25 Excavator Spare Part Hydraulic Main Pump
Product Description
| Appliion | Hyundai Crawler Excavator |
| Part name | Hydraulic Main pump |
| Part Model | AP2D25 |
| Model | R55-7 R55-7A |
| MOQ | 1PCS |
| Part number | 31M8-10020 |
| Payment term | T/T, Western union, PayPal etc |
| Delivery | 1 days after the payment received(If have stock) |
| Shipment | by sea, by air, by express or as required |
| # | Part No | Part Name | Qty. | Remark |
|---|---|---|---|---|
| * | 31M8-10020 | MAIN PUMP STD |
1 | |
| * | 31M8-10010 | MAIN PUMP LOW NOISE |
1 | |
| N*-1 | XKAH-00783 | MAIN PUMP UNIT SEE 4020 |
1 | |
| 1 | XKAH-00653 | SHAFT-DRIVE | 1 | |
| 2 | XKAH-00652 | COVER-SEAL | 1 | |
| 3 | XKAH-00651 | BEARING-BALL | 1 | |
| 4 | XKAH-00650 | RING-SNAP | 1 | |
| 5 | XKAH-00649 | RING-SNAP | 1 | |
| K6 | XKAH-00648 | SEAL-OIL | 1 | |
| K7 | XKAH-00647 | O-RING | 1 | |
| 8 | XKAH-00646 | RING-SNAP | 1 | |
| 9 | XKAH-00645 | PLATE-SWASH | 1 | |
| 10 | XKAH-00644 | PLATE | 1 | |
| 11 | XKAH-00643 | SPACER-BEARING | 1 | |
| 12 | XKAH-00642 | BEARING-ROLLER | 2 | |
| 13 | XKAH-00641 | BOLT-SOCKET | 4 | |
| K14 | XKAH-00640 | O-RING | 1 | |
| 15 | XKAH-00639 | PIVOT | 1 | |
| 16 | XKAH-00655 | BLOCK-CYLINDER STD |
1 | |
| 16 | XKAH-00918 | BLOCK-CYLINDER LOW NOISE |
1 | |
| 17 | XKAH-00656 | BUSH-SPHERICAL | 1 | |
| 18 | XKAH-00657 | PLATE-PUSH STD |
1 | |
| 18 | XKAH-00919 | PLATE-PUSH LOW NOISE |
1 | |
| 19 | XKAH-00658 | PLATE-SHOE | 1 | |
| 20 | XKAH-00659 | SPRING | 1 | |
| 21 | XKAH-00660 | PIN-PARALLEL | 3 | |
| 22 | XKAH-00661 | SEAT-SPRING | 2 | |
| 23 | XKAH-00662 | RING-SNAP | 1 | |
| 24 | XKAH-00864 | PISTON SUB ASSY STD |
1 | |
| 24 | XKAH-00928 | PISTON SUB ASSY LOW NOISE |
1 | |
| 26 | XKAH-00673 | CASING | 1 | |
| 27 | XKAH-00675 | SEAT-SPRING(1) | 1 | |
| 28 | XKAH-00676 | SEAT-SPRING(2) | 1 | |
| 29 | XKAH-00677 | COVER-SPRING | 1 | |
| 30 | XKAH-00678 | SCREW-ADJUSTING | 1 | |
| 31 | XKAH-00679 | SPRING | 1 | |
| 32 | XKAH-00680 | SPRING | 1 | |
| K33 | XKAH-00681 | O-RING | 1 | |
| 34 | XKAH-00682 | BOLT-SOCKET | 2 | |
| 35 | XKAH-00683 | NUT-HEX | 1 | |
| 36 | XKAH-00684 | SHIM(0.3T) | 1 | |
| 37 | XKAH-00685 | SHIM(0.5T) | 1 | |
| 38 | XKAH-00686 | SHIM(1.0T) | 1 | |
| 39 | XKAH-00687 | SHIM(2.0T) | 1 | |
| 73 | XKAH-00716 | AIR BREATHER | 1 | |
| 74 | XKAH-00717 | NAME PLATE STD |
1 | |
| 74 | XKAH-00924 | NAME PLATE LOW NOISE |
1 | |
| 75 | XKAH-00116 | SCREW-RIVET | 2 | |
| K | XKAH-00824 | SEAL KIT SEE ILLUST |
1 |
Our advantages
| Best price with good quality | For our main product , we have the best price, because we are the agent of the factory supplier , so our cost price will lower than other company , same quality product , our price will be better . |
| Professional & Experienced Salesperson | Our founder has been into this field for more than 7 years , with rich experiences.We will conduct professional knowledge training and assessment for sales staff every month . |
| Rigorous Serious Professional Attitude | About the parts , we will make sure it 100% before the shipment , if can not make sure it , maybe will ask you for more information about your parts , Never take any chances to deliver everything without make sure it 100% . |
| Detailed information of the product | We are professional on our main products , We have detailed pictures and detailed parameters for your main products , |
| Convenient &Fast & Affordable Delivery | We have lof of customers from more than 96 countries , and we have lof of professional shipping agents , will choose the best way with good price shipment way to send the parts to you , we have DHL , FEDEX ,UPS , Air ,Sea etc , will try our best to meet your requirement . |
FAQ
| 1 . what kind of information I need to send you? |
|
For different parts it need different information , for hydraulic pump need the nameplate and picture . For the final drive , need the number of the frame hole and sprocket hole ,and the inner diamter of the sprocket . But don't worry , if we need information , we will ask you to check .
|
| 2 . Do you have stock? |
|
For our main products , our have stock for almost of them , the factory supplier warehouse is near us , if the parts we don't have stock , we will tell you before you order it .
|
| 3 . Can I get the picture of the part I need before payment ? |
|
For almost parts , we can give you the picture of it , but some parts we don't have picture , but anyway will show you before the shipment .
|
| 4 . When will the delivery be arranged after the payment |
|
After we received the money , we will arrange the shipment within 1 days ;
|
| 5 . How can I do if there is something wrong with the items ? |
|
First of all , I have confidence in the quality of our products , if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item .
|
| 6 . What is your advantage products ? |
|
Our advantage products are final drive / hydraulic pump / swing gearbox / travel gearbox / swing motor / hydraulic parts . If you need any parts for crawler excavator , you can ask us . We will try our best to find the parts what you need .
|
