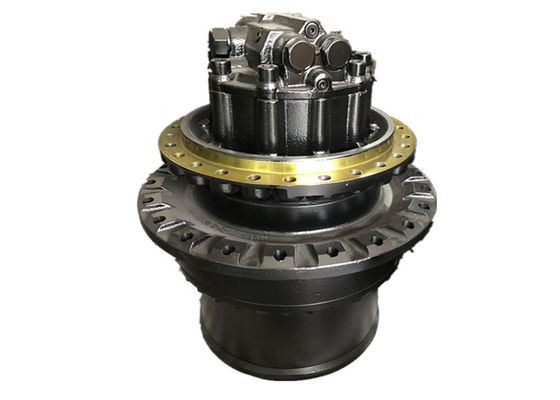

ZX350-3 ZX330-3 ZX370 Travel Motor Assy 9212584 9190221 Hitachi Genuine Brand
This Final Drive is Hitachi genuine brand , It can be fitted in ZX330-1 ZX330-3 ZX370 ZX350 , We also have the single travel motor to sell . Just according to what you need , Hitachi genuine brand new final drive , welcome to ask us . On the other hand , we also have China brand final drive can be fitted in 1-25 tons excavator , if you need the final drive please also contact us . Thank you so much .
Product Description
| Appliion | Excavator |
| Part name | Final drive |
| Part Model | HMGF68 |
| Model | ZX330-1 ZX330-3 ZX370 ZX350 |
| Part number | 9212584 9190221 |
| Payment term | T/T, Western union, PayPal Etc |
| Delivery | 1 days after the payment received(If have stock) |
| Shipment | by sea, by air, by express or as required |
| Part No | 9212584 |
| Part Name | TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE) |
ZAXIS330; ZAXIS330LC; ZAXIS350H; ZAXIS370; ZAXIS370MTH; ZAXIS350LC; ZAXIS350LCN; ZAXIS350LCH; ZAXIS350K; ZAXIS350LCK;
| Model | Section node |
|---|---|
| ZAXIS330LC | UNDERCARRIAGE / TRAVEL DEVICE |
| ZAXIS330 | UNDERCARRIAGE / TRAVEL DEVICE SERIAL NO. STD, NA, EU1, EU3:030001- EU2, EU4:200001- |
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| 9190221 | TRAVEL DEVICE | 2 | ||
| 9212584 | TRAVEL DEVICE (FOR ASSEMBLY OF MACHINE) | 2 | ||
| 9190222 | . TRAVEL DEVICE | 2 | ||
| 9232360 | . TRAVEL DEVICE (FOR TRANSPORTATION) | 2 | ||
| 00 | 9190296 | . MOTOR; OIL | 1 | |
| 00 | 9213431 | . MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | |
| 00 | 9195488 | . MOTOR; OIL | 1 | |
| 00 | 9231673 | . MOTOR; OIL (FOR TRANSPORTATION) | 1 | |
| 02 | 1022194 | . HOUSING | 1 | |
| 03 | 4066695 | . SEAL; GROUP | 1 | |
| 04 | 4192975 | . BRG; ROL. | 2 | |
| 05 | 1022179 | . DRUM | 1 | |
| 06 | 1022168 | . SPROCKET | 1 | |
| 07 | A590920 | . WASHER; SPRING | 20 | |
| 08 | J932060 | . BOLT | 20 | |
| 10 | 3036256 | . NUT | 1 | |
| 10 | 3094717 | . NUT | 1 | |
| 11 | 4192974 | . PLATE; LOCK | 1 | |
| 11 | 4470326 | . PLATE; LOCK | 1 | |
| 12 | J901222 | . BOLT | 2 | |
| 12 | J901225 | . BOLT | 2 | |
| 14 | 1022198 | . CARRIER | 1 | |
| 15 | 4401293 | . SPACER | 3 | |
| 16 | 3075003 | . GEAR; PLANETARY | 3 | |
| 18 | 4269470 | . PLATE; THRUST | 6 | |
| 19 | 4269452 | . PIN | 3 | |
| 20 | 4192021 | . PIN; SPRING | 3 | |
| 21 | 3075005 | . GEAR; SUN | 1 | |
| 22 | 4455088 | . BRG.; NEEDLE | 6 | |
| 23 | 1022195 | . GEAR; RING | 1 | |
| 24 | J931640 | . BOLT | 28 | |
| 26 | 1022197 | . CARRIER | 1 | |
| 27 | 3075002 | . GEAR; PLANETARY | 3 | |
| 28 | 4455099 | . BRG; NEEDLE | 3 | |
| 29 | 4284521 | . PLATE; THRUST | 6 | |
| 30 | 4269451 | . PIN | 3 | |
| 31 | 4197763 | . PIN; SPRING | 3 | |
| 32 | 3074989 | . GEAR; SUN | 1 | |
| 34 | 1022196 | . CARRIER | 1 | |
| 36 | 3075001 | . GEAR; PLANETARY | 3 | |
| 37 | 4455098 | . BRG; NEEDLE | 3 | |
| 38 | 4284520 | . PLATE; THRUST | 6 | |
| 39 | 4269472 | . PIN | 3 | |
| 40 | 4192020 | . PIN; SPRING | 3 | |
| 41 | 2038915 | . SHAFT; PROP | 1 | |
| 41 | 2048000 | . SHAFT; PROP | 1 | |
| 43 | 2045031 | . COVER | 1 | |
| 44 | 4277474 | . PIN; STOPPER | 1 | |
| 45 | 4278168 | . BRG; BALL | 1 | |
| 46 | 930451 | . RING; RETAINING | 1 | |
| 47 | J011230 | . BOLT; SEMS | 16 | |
| 47 | 4609016 | . BOLT; SEMS | 16 | |
| 48 | 4245797 | . PLUG | 3 | |
| 50 | 4269473 | . O-RING | 1 | |
| 51 | 4287213 | . WASHER; SPRING | 4 | |
| 52 | M341885 | . BOLT; SOCKET | 4 | |
| 54 | 3053559 | . NAME-PLATE | 1 | |
| 55 | M492564 | . SCREW; DRIVE | 2 |
The paramter of the Final drive
1. What parameter you need to send us :
Must need : The number of the frame hole and sprocket hole , inner diamter of the sprocket .
The nameplate of the final drive and the picture of your final drive / machine model and the part number of it , If it is popular type , we can check it easy . But it will be better if we can get more informations from you , so we can make sure it 100 % ,then we can send the right parts what you need .
We have detailed information about final drive , detailed pic and it will fit in which model , We have a strong database
, so if we can make sure it , just don't worry , We will be responsible for our quotation .
Our products are developed according to the genuine product information , It's perfectly replaceable . That means you can use less money to buy a perfect replacement product .
2 . We have the following excavator brands of the final drive .
We have / Hitachi / Kebelco / Komatsu / Doosan / JCB / Sumitomo / / Hyundai Etc ,some model of them we have China brand final drive can replace the genuine final drive .
| Best price with good quality product | For final drive , we have the best price, because we are the agent of the factory supplier this year , so our factory supplier give us financial support for the goods , same quality product , our price will be better . |
| Professional & Experienced Salesperson | Our founder has been into this field for more than 7 years , with rich experiences.We will conduct professional knowledge training and assessment for sales staff every month . |
| Rigorous Serious Professional Attitude | About the parts , we will make sure it 100% before the shipment , if can not make sure it , maybe will ask you for more information about your parts , Never take any chances to deliver everything without make sure it 100% . |
| Detailed information of the product | We are professional on our main products , We have detailed pictures and detailed parameters for your main products , |
| Convenient &Fast & Affordable Delivery | We have lof of customers from more than 96 countries , and we have lof of professional shipping agents , will choose the best way with good price shipment way to send the parts to you , we have DHL , FEDEX ,UPS , Air ,Sea etc , will try our best to meet your requirement . |
The drawing of the final drive
FAQ
|
1 . If I only know the excavator model , but can not offer parts No., what should I do ?
|
|
If possible , you can send us pictures of old products , nameplate or the size for checking .
|
|
2 . Do you have stock?
|
|
For our main products , our have stock for almost of them , the factory supplier warehouse is near us , if the parts we don't have stock , we will tell you before you order it .
|
|
3 . What kind of payment terms can I choose ?
|
|
You can choose T/T , Western Union,Paypal etc .
|
|
4 . When will the delivery be arranged after the payment
|
|
After we received the payment , we will arrange the shipment within 24 hours ;
|
|
5 . How can I do if there is something wrong with the items ?
|
|
First of all , I have confidence in the quality of our products , if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item .
|
|
6 . What is your main products ?
|
|
Our main products are final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can send it to us . We will try our best to find the parts what you need . |
