Product Details:
Payment & Shipping Terms:
|
| Material: | Steel | Warranty: | 6 Months, 6 Months |
|---|---|---|---|
| Application: | Crawler Excavator | Model: | E336D |
| Place Of Origin: | Guangdong, China | Packing: | Standard Packing |
| High Light: | travel reduction gear,transmission gearbox |
||
E336D Excavator Transmission Gearbox Final Drive 296-6246 336D Travel Gearbox
Supply Ability
Supply Ability: 500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details: Standard shipping package
Port: Huangpu
Lead time:
| Quantity(Pieces) | 1 - 1 | >1 |
| Est. Time(days) | 2 | To be negotiated |
E336D Excavator Transmission Gearbox Final Drive
Product Description
| Part Name | E336D Transmission Gearbox Final Drive 296-6246 336D Travel Gearbox |
| Applied Excavator | 336D |
| Part No. | 296-6246 |
| Warranty | 3 months from the date of B/L |
| Place of Origin | CHINA |
| Payment Term | T/T, Western Union, Secure Payment, Trade Assurance, Paypal |
| MOQ | 1 PCS |
| Means of Transport | By sea, air cargo or DHL,FEDEX,EMS,UPS etc. |
| Packing | Wooden case |
| Packing Size | Export cargo standard |
| Delivery Time | 2-4 workdays after received payment |

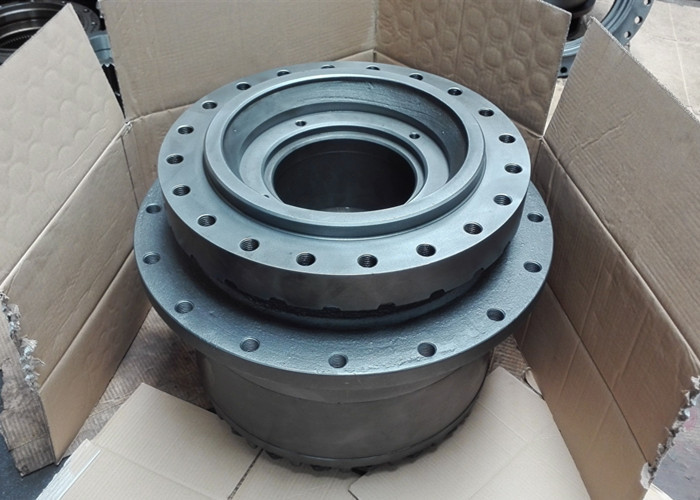

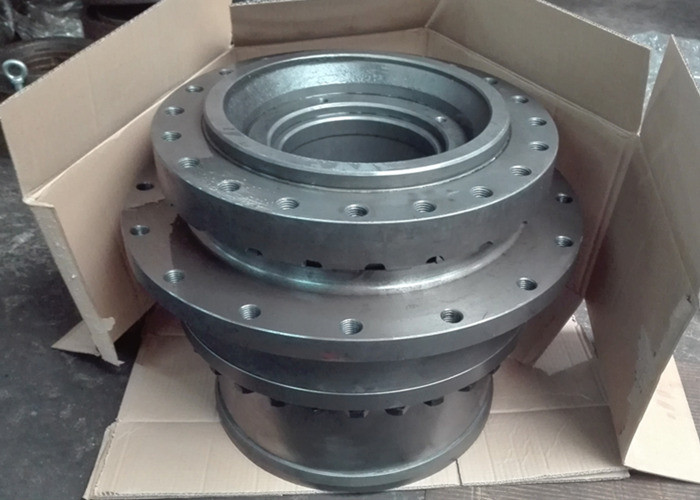

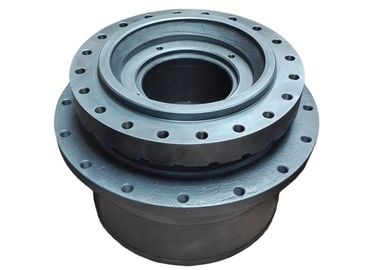

E336D Excavator Transmission Gearbox Final Drive Picture
SIS
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 7Y-0595 | [2] | SPACER (58X79.6X6-MM THK) | |
| 2. | 7Y-1056 B | [1] | SHIM (0.8-MM THK) | |
| 7Y-1057 B | [1] | SHIM (1-MM THK) | ||
| 267-6809 B | [1] | SHIM (0.75-MM THK) | ||
| 267-6810 B | [1] | SHIM (0.85-MM THK) | ||
| 267-6811 B | [1] | SHIM (0.9-MM THK) | ||
| 267-6812 B | [1] | SHIM (0.95-MM THK) | ||
| 267-6813 B | [1] | SHIM (1.2-MM THK) | ||
| 267-6814 B | [1] | SHIM (1.4-MM THK) | ||
| 267-6815 B | [1] | SHIM (1.8-MM THK) | ||
| 267-6816 B | [1] | SHIM (2-MM THK) | ||
| 267-6817 B | [1] | SHIM (2.3-MM THK) | ||
| 4. | 094-0577 B | [1] | PLATE (7-MM THK) | |
| 094-0578 B | [1] | PLATE (8-MM THK) | ||
| 094-0579 B | [1] | PLATE (9-MM THK) | ||
| 094-0580 B | [1] | PLATE (10-MM THK) | ||
| 8. | 114-1541 | [6] | PIN-DOWEL | |
| 9. | 136-2898 | [14] | WASHER (58.3X89X1-MM THK) | |
| 10. | 191-2690 | [6] | WASHER (42.3X70X1-MM THK) | |
| 11. | 227-6190 | [1] | HOUSING-MOTOR | |
| 12. | 227-6192 | [1] | GEAR-COUPLING | |
| 13. | 255-2272 | [1] | SEAL GP-DUO-CONE | |
| 23. | 279-0344 | [2] | BEARING AS-TAPERED ROLLER | |
| 24. | 295-9234 | [1] | SEAL-O-RING | |
| 25. | 296-6181 | [1] | HOUSING | |
| 26. | 296-6182 | [1] | COVER | |
| 27. | 296-6183 | [1] | CARRIER-PLANETARY | |
| 28. | 296-6184 | [4] | GEAR-PLANETARY (21-TEETH) | |
| 29. | 296-6185 | [4] | SHAFT | |
| 30. | 296-6186 | [3] | GEAR-PLANETARY (21-TEETH) | |
| 31. | 296-6189 | [1] | GEAR-SUN (20-TEETH) | |
| 32. | 296-6190 | [1] | GEAR-SUN (20-TEETH) | |
| 33. | 296-6192 | [1] | SPACER (143X170X8-MM THK) | |
| 34. | 296-6194 | [1] | CARRIER-PLANETARY | |
| 35. | 296-6195 | [3] | SHAFT | |
| 36. | 296-6230 | [3] | GEAR-PLANETARY (21-TEETH) | |
| 37. | 296-6231 | [1] | GEAR-SUN (20-TEETH) | |
| 38. | 296-6232 | [1] | CARRIER AS | |
| 39. | 296-6247 | [11] | BEARING AS-ROLLER | |
| 40. | 296-6248 | [3] | BEARING AS-ROLLER | |
| 41. | 296-6311 | [1] | GEAR-RING (64-TEETH) | |
| 42. | 093-1731 | [2] | RING-RETAINING | |
| 43. | 095-0891 | [7] | PIN-SPRING | |
| 44. | 096-3216 M | [2] | SETSCREW-SOCKET (M12X1.75X12-MM) | |
| 45. | 096-8058 | [3] | RING-RETAINING | |
| 46. | 191-2645 | [1] | COUPLING | |
| 47. | 3E-2338 | [2] | PLUG-PIPE | |
| 48. | 6V-8133 M | [10] | BOLT (M24X3X80-MM) | |
| 49. | 6V-8237 | [10] | WASHER (26X44X4-MM THK) | |
| 50. | 7M-8485 | [2] | SEAL-O-RING | |
| 51. | 7Y-5217 M | [30] | BOLT-SOCKET HEAD (M20X2.5X70-MM) | |
| 52. | 8T-4123 | [30] | WASHER (3.62X5.75X0.375-MM THK) | |
| 53. | 8T-4223 | [16] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 54. | 8T-4956 M | [16] | BOLT (M12X1.75X35-MM) | |
| 55. | 1U-8846 B | SEALANT-GASKET | ||
| B | USE AS REQUIRED | |||
| M | METRIC PART | |||
1. High Quality
2. Competitive Price
3. Prompt Delivery
4. Best Service
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What are payments available?
A: Trade assurance, T/T,Western Union,Paypal
Q3. What is your terms of delivery?
A: EXW, FOB, CFR
Q4. How about your delivery time?
A: Generally, it will take 1 to 3 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
