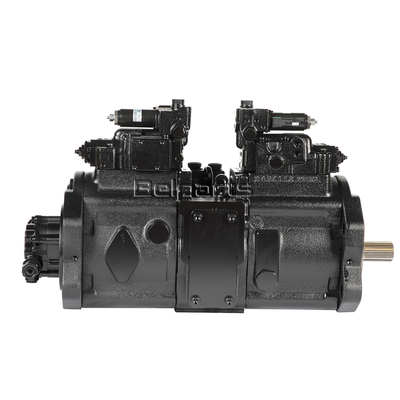

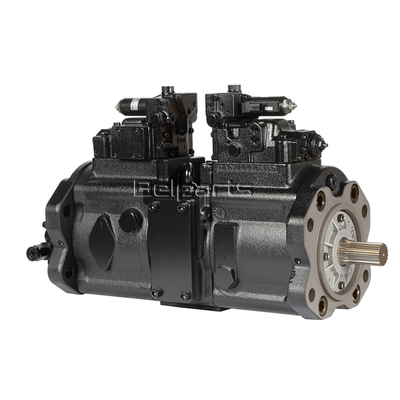

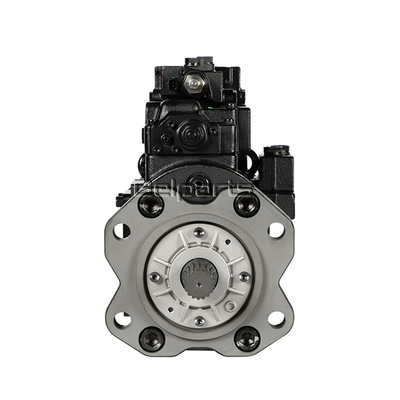

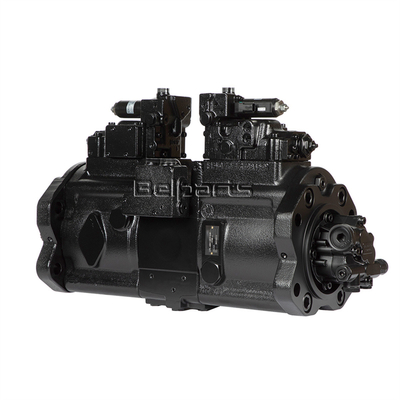

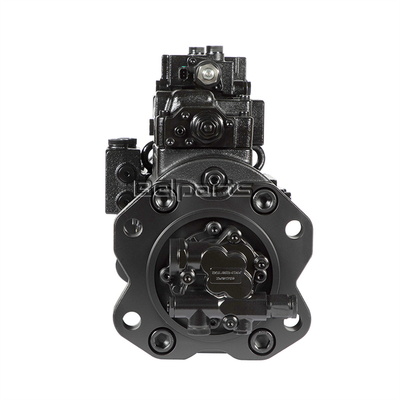

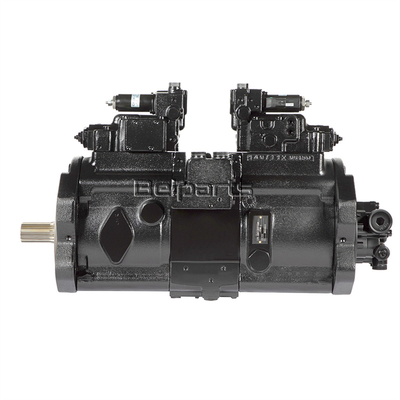

Belparts Excavator Hydraulic Pump For Kobelco SK200-8 SK210-8 SK250-8 YN10V00036F2 K3V112DTP
-
High Light
SK200-8 Excavator Hydraulic Pump
,SK250-8 Excavator Hydraulic Pump
,K3V112DTP Excavator Hydraulic Pump
-
Condition100%New
-
Warranty12month
-
Part NameMain Hydraulic Pump
-
Part NumberYN10V00036F2 K3V112DTP
-
AvailabilityIn Stock
-
Place Of OriginGuangdong, China
-
Place of OriginGuangdong，China
-
Brand NameBelparts
-
Model NumberKobelco SK200-8 SK210-8 SK250-8
-
Minimum Order Quantity1 piece
-
PriceNegotiable price
-
Packaging DetailsWooden packing
-
Delivery Time1-5days
-
Payment TermsT/T, Paypal and Alibaba Trade Assurance
-
Supply Ability1000pieces
Belparts Excavator Hydraulic Pump For Kobelco SK200-8 SK210-8 SK250-8 YN10V00036F2 K3V112DTP
Belparts Excavator Hydraulic Pump For Kobelco SK200-8 SK210-8 SK250-8 YN10V00036F2 K3V112DTP
Quick Detail of Excavator Hydraulic Pump
Material:Steel
Product Name: Excavator Main Hydraulic Pump
Applicable Industries:Machinery Repair Shops, Manufacturing Plant
Dimension(L*W*H):77*56*67cm
Part number:YN10V00036F2 K3V112DTP
Package Details:Export Wooden Box
Weight:160KG
Surface treatment:Heat resistance paint
Pressure:Standard, High Pressure
Specifiions Of Excavator Hydraulic Pump
| Product Name | Excavator Hydraulic Pump |
| Oem No | YN10V00036F2 K3V112DTP |
| Engine No | Kobelco SK200-8 SK210-8 SK250-8 |
| Packing Number | 1 |
| N.W/KG | 120KG |
| G.W/KG | 160KG |
| Packing Size | 77*56*67cm |
| Related Oem | YN10V00036F2 |
| Pressure | Standard, High Pressure |
Features of Excavator Hydraulic Pump
1) It has high transmission efficiency, giving full play to the power and fuel economy of the engine.
2) The hydraulic system and hydraulic components have sufficient reliability under the action of large load changes and sharp vibration and impact.
3) Coordinate the light and vibration-resistant cooler to reduce the total heat generation of the system, so that the hydraulic oil temperature does not exceed 80 degrees, or the temperature rise does not exceed 45 degrees when the main engine continues to work.
4) The sealing performance of the hydraulic system is very good, and the oil filter and dustproof device are set up.
5) Hydraulic or electro hydraulic servo control device is adopted, so that the excavator can set up an automatic control system, thereby improving the technical performance of the excavator and reducing the labor intensity of the driver.
- Made of aluminum alloy, high strength, corrosion resistance, light weight, suitable for operation in various environments.
- The two-speed feature reduces the number of times of pressing, and the low-pressure chamber is quickly in a load-utilizing state, and immediately converts to high-pressure, shortening each operation cycle.
- Equipped with a pressure regulating valve, which can adjust the control and set the working pressure.
Advantages Of Excavator Hydraulic Pump
1, The internal parts adopt Japanese Kawasaki molten copper technology
2, High durability, it can be used for hydraulic breaker
3, Every pump is tested before leaving the factory, Reject low-cost spot-check.
Why choose us:
24-hour online consultation and communiion
Large stock of a single product
Product quality is guaranteed
Comparative advantage in product price comparison with other suppliers
Has the accurate data to follow the excavator brand part number inquiry, guarantees the product correct rate
Product delivery time is fast, according to customer needs for deliveryThe product is packed according to the customer’s requirement
Minimum 5 years experience in export cooperation, good at customer service
Professional excavator hydraulic system accessories 10 years of service experience
Our Services
Highest standard to suit western country operators' use
ISO quality control manufacturing
Free and efficient communiion
Quick and professional response
Patient and responsible before-sale and after-sale services
Over 40 years experiences on metal fabriion, hydraulics apply and control and consultancy in Australia
World class quality at affordable price
Service
1) Material: All our products are used high quality genuiner raw material.
2) Inspection: We make a very strict inspection process before delivery.
3) Inventory: We have about 1000 pieces in stock, can provide you at once.
4) Price: We have steady in stock and we can offer competitive price.
5) Delivery time: We will deliver the goods within 1-3 days after received the payment.
6) Service: We have a professional team to offer professional service for you 24/7.
7) All the spare parts are 100% measured, 100% interchangeable.
Parts scheme
List of spare parts
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | YN10V00036F2 | [1] | HYDRAULIC PUMP | KOB Assembly, Start Serial: 0 Superseded by part number: YN10V00036F4 |
| 1. | YN10V00043F1 | [1] | HYDRAULIC PUMP | SM Assembly |
| 2. | YN10V01009F2 | [2] | SPEED GOVERNOR | KOB REGULATOR ASSY Superseded by part number: YN10V01009F4 |
| 3. | YN35V00052F2 | [2] | SOLENOID VALVE | KOB ASSY, SOLENOID Superseded by part number: YN35V00054F1 |
| 4. | YN10V00014F3 | [1] | PUMP | KOB ASSY, GEAR |
| 5. | YN10V00023S009 | [1] | COVER | KOB |
| 6. | ZS23C10020 | [4] | SCREW,Hex Socket Head, M10 x 20mm | KOB M10x1.50x20mm |
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . . | YN10V00043F1 | [1] | HYDRAULIC PUMP | SM PUMP ASSY |
| 111. | YN10V00043S111 | [1] | SHAFT | SM |
| 113. | YN10V00013S113 | [1] | SHAFT | KOB |
| 116. | YN10V00020S116 | [1] | GEAR | KOB |
| 123. | LC10V00002S123 | [2] | BEARING | KOB |
| 124. | YN10V00011S124 | [2] | NEEDLE BEARING | KOB |
| 127. | 2441U723S127 | [4] | SPACER | KOB |
| 141. | NSS | [2] | NOT SOLD SEPARAT | CON BLOCK,CYLINDER |
| 151. | NSS | [18] | NOT SOLD SEPARAT | CON PISTON |
| 152. | NSS | [18] | NOT SOLD SEPARAT | CON SHOE |
| 153. | 2437U213S153 | [2] | PLATE | KOB Superseded by part number: LC10V00010S153 |
| 156. | YN10V00005S156 | [2] | BUSHING | KOB |
| 157. | 2437U213S157 | [18] | SPRING | KOB |
| 211. | 2441U242S211 | [2] | PLATE | KOB |
| 212. | NSS | [2] | NOT SOLD SEPARAT | CON PLATE |
| 214. | NSS | [2] | NOT SOLD SEPARAT | CON BUSHING |
| 251. | 2437U213S251 | [2] | PLATE | KOB |
| 261. | 2437U420S261 | [1] | COVER | KOB |
| 271. | YN10V00043S271 | [2] | BOX | SM CASE |
| 312. | LC10V00010S312 | [1] | BLOCK | SM VALVE |
| 313. | NSS | [1] | NOT SOLD SEPARAT | CON PLATE,VALVE |
| 314. | NSS | [1] | NOT SOLD SEPARAT | CON PLATE,VALVE |
| 325. | YN10V00043S325 | [1] | COVER | SM |
| 401. | 2437U213S401 | [8] | SCREW | KOB |
| 406. | ZS23C08020 | [4] | SCREW,Hex Socket Head, M8 x 20mm | KOB M08x1.25x20mm |
| 407. | ZS23C06055 | [3] | CAPSCREW,Hex Socket Head, M6 x 55mm | KOB SCREW M06x1.0x55mm |
| 466. | 2441U667S466 | [2] | PLUG | KOB 1/4" PF |
| 467. | 2441U549S464 | [2] | PLUG | KOB |
| 468. | 2441U436S469 | [4] | PLUG | KOB |
| 490. | 2441U722S490 | [32] | PLUG | KOB 1/16" NPTF |
| 531. | NSS | [2] | NOT SOLD SEPARAT | CON PIN |
| 532. | 2437U213S532 | [2] | PISTON | KOB |
| 534. | 2437U213S534 | [2] | STOP | KOB |
| 535. | 2437U213S535 | [2] | STOP | KOB |
| 546. | YN10V00043S546 | [2] | SPACER | SM |
| 548. | NSS | [2] | NOT SOLD SEPARAT | CON PIN,FEEDBACK |
| 702. | YN10V00003S702 | [2] | O-RING | KOB |
| 710. | YX10V00003S012 | [2] | O-RING | KOB |
| 717. | YN10V00020S012 | [4] | O-RING,3.1mm Thk x 144.4mm ID, 70 Duro | KOB O-RING |
| 724. | YX10V00003S015 | [16] | O-RING,1.9mm Thk x 8.8mm ID, 75 Duro | KOB |
| 725. | YT10V00003S710 | [9] | O-RING | KOB |
| 727. | YN10V01001S727 | [3] | O-RING | KOB |
| 728. | YN10V00020S015 | [4] | O-RING | KOB O-RING |
| 732. | YT10V00003S708 | [2] | O-RING | KOB |
| 774. | YN10V00032S775 | [1] | OIL SEAL | KOB Superseded by part number: EG10V00004S774 |
| 789. | ZD85P01800 | [2] | RING | KOB Back-Up -- ID 18 x OD 22 x Th 1.25mm |
| 792. | ZD85G03500 | [2] | RING | KOB Back-Up -- ID 35 x OD 40 x Th 1.25mm |
| 806. | ZN18C16010 | [2] | NUT | KOB M16x2.0mm |
| 808. | ZN18C20012 | [2] | NUT | KOB M20x2.5mm |
| 824. | ZR16X04000 | [2] | RING | KOB Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 885. | 2441U723S885 | [2] | PIN | KOB |
| 886. | ZP26D06014 | [4] | PIN | KOB Roll -- OD 06 x 14mm Long |
| 901. | ZS91C01000 | [2] | BOLT | KOB Eye -- M10x1.50x18mm |
| 953. | 2437U188S953 | [2] | CAP,M10 x 20mm | KOB |
| 954. | 2437U213S954 | [2] | SCREW | KOB |
| 981. | NSS | [1] | NOT SOLD SEPARAT | CON NAME PLATE |
| 983. | 2437U407S983 | [2] | RIVET | KOB PIN |
| K. | YN10V00003S011 | [1] | PISTON ASSY | KOB CONSISTS OF ITEM, 151X9, 152X9 |
| K. | YN10V00043R100 | [1] | REPAIR KIT | KOB REPAIR KIT CONSISTS OF ITEM, 141X1, 313X1 |
| K. | YN10V00043R200 | [1] | REPAIR KIT | KOB REPAIR KIT CONSISTS OF ITEM, 141X1, 314X1 |
| K. | 2437U213S30 | [1] | REPAIR KIT | KOB CONSISTS OF ITEM, 212X1, 214X1 |
| K. | 2437U213S530 | [1] | REPAIR KIT | KOB CONSISTS OF ITEM, 531X1, 548X1 |
FAQ
(1). Are you a manufacturer or trading company?
We are the professional manufacturer of the Excavator Hydraulic Pump,
(2). What’s the accessory for each Outdoor Digital Signage?
Accessory such as : blower or pump, repair kits (including the PVC materials, glue, Etc.) are included;
(3). Your blowers and pumps meet CE/UL requirements?
(4). Yes, Our blowers/pumps have the certifies of CE/UL.
(5). Can we change the size and color for the inflatables we desire ?
Yes, the size and color can be customized according to your request.
Our products are sold all over the world, you can rest assured.
