Hyundai R250LC-7 31N7-10110 31N7-19110 Wholesale Excavator travel motor Parts
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | R250LC-7 | Part Number | 31N7-10110 31N7-19110 |
|---|---|---|---|
| Product Name | Control Valve Assy | Application | Excavator Spare Parts |
| Power | Hydraulic Parts | Packing | Wooden Case |
| Warranty | 6 Months | Color | According To Customer Requirement |
Product Description
Hyundai R250LC-7 31N7-10110 31N7-19110 Wholesale Excavator travel motor Parts
| Category: | Excavator Hydraulic Parts |
| Model: |
R250LC-7 |
| Part number: |
31N7-10110 31N7-19110 |
| Package: | Wooden Box |
| Part name: | control vavle assy |
| Application: | Excavator |
| Product Attributes: | excavator parts |
The excavator control valve, also known as the main control valve (MCV), is a critical component in hydraulic systems of excavators and other heavy construction machinery. It regulates the flow, pressure, and direction of hydraulic oil to various actuators (such as hydraulic cylinders and motors), enabling precise control of movements like digging, lifting, swinging, and traveling.
Modern excavators rely on advanced hydraulic control valves to ensure smooth operation, energy efficiency, and safety. This guide explores the working principles, construction, functions, applications, maintenance, and future trends of excavator control valves.

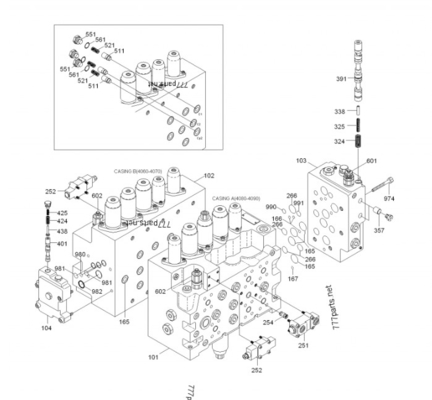

List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | 31N7-10110 | MAIN CONTROL VALVE STD |
1 | |
| * | 31N7-19110 | MAIN CONTROL VALVE NEWZLAND, AUST |
1 | |
| * | 31N7-19110 | MAIN CONTROL VALVE STD |
1 | |
| N101 | XJBN-00242 | CASING-A | 1 | |
| N102 | XJBN-00241 | CASING-B | 1 | |
| N103 | XJBN-00540 | BLOCK | 1 | |
| N104 | XJBN-00239 | BLOCK-BM PRIORITY VLV | 1 | |
| 165 | XJBN-00403 | O-RING | 5 | |
| 166 | XJBN-00231 | O-RING | 3 | |
| 251 | XJBN-00648 | VALVE-CONTROL | 1 | |
| 252 | XJBN-00225 | VALVE-LOCK | 2 | |
| 254 | XJBN-00214 | VALVE-LOGIC | 1 | |
| 266 | XJBN-00281 | O-RING | 4 | |
| 324 | XJBN-00534 | SPRING | 1 | |
| 325 | XJBN-00535 | SPRING | 1 | |
| 338 | XJBN-00188 | STOPPER | 1 | |
| 357 | XJBN-00186 | ORIFICE | 3 | |
| 391 | XJBN-00249 | SPOOL-TRAVEL | 1 | |
| 401 | XJBN-00537 | SPOOL-SWING PRIORITY | 1 | |
| 424 | XJBN-00175 | SPRING | 1 | |
| 425 | XJBN-00174 | SPRING | 1 | |
| 438 | XJBN-00173 | ROD | 1 | |
| 511 | XJBN-00172 | POPPET | 3 | |
| 521 | XJBN-00169 | SPRING | 3 | |
| 551 | XJBN-00167 | PLUG | 3 | |
| 561 | XJBN-00046 | O-RING | 3 | |
| 601 | XJBN-00378 | MAIN RELIEF VALVE | 1 | |
| 602 | XJBN-00162 | PORT RELIEF VALVE | 2 | |
| 974 | XJBN-00159 | SCREW-SOCKET | 5 | |
| 980 | XJBN-00362 | O-RING | 1 | |
| 981 | XJBN-00363 | O-RING | 2 | |
| 982 | XJBN-01017 | O-RING | 1 | |
| 990 | XJBN-00374 | O-RING | 2 | |
| 991 | XJBN-00283 | O-RING | 1 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
Main Business Model
| DH50-7, DH55D, DH60-7, DH80, DH130, DH150, DH150W-9, DH215-5, DH200-5, DH150LC-7, DH215-7, DH220-5, DH220-7, DH220-9, DH220-10, DH225-9, DH258, DH258LC-7, DH280, DH290B, DH300-5, DH300-7, DH320, DH360, DH370, DH500, DX300 |
| R60-7, R80, R130, R140, R150-7, R150-9, R1107-7, R160-7, R210, R220, R220-7, R215-7, R220-5, R225-7, R225-9T, R225lc-7, R290, R350-7,R110-9, R215-9, R275LC-9, R305, R305-7, R320, R335-7,R360, R370, R375, R375-7H, R455, R460, R485-7 |
| EC130, EC140B, EC210B, EC210C, EC235C, EC240B, EC290, EC290B, EC290C, EC360B, EC460B, EC460C, EC480D |
| E305, E320, E325C, E315C, E330C, E315D, E320D, E325D, E330D, E360D, E70B, E120B, E200B, E320B, E330B |
| PC35,PC40,PC45, PC50, PC55, PC60,PC60-6, PC70, PC75, PC78, PC80, PC90, PC100, PC110, PC120, PC120-7, PC130, PC150, PC160, PC180, PC200,PC200-6, PC200-7,PC200-8, PC210-8, PC220-6,PC220-7,PC210, PC220, PC230, PC240,PC240-8, PC270, PC300, PC360,PC360-7, PC350, PC400, PC450, PC650, PC750, PC1250 D31, D50, D65, D85, D155, D275, D375, D475 |
| EX200-2, EX220-2, EX120-5, EX200-5, EX220-5, EX400-5, ZX200-3, ZX210-3, ZX240-3, ZX270-3, ZX330-3, ZX360-3, ZX110, ZX120, ZX200-6,ZX200-3G,ZX200-5G,ZX330-3G,ZX350-5G |
| SK200-3, SK200-5, SK135rs, SK70rs,SK60,SK120-5, SK200-8, SK250-8, SK260-8, SK130-8, SK200-6e, SK210-6e, SK160 |
| HD80R, HD820-5, HD1023, HD1430, HD700-7,HD1430-7, HD1250-7, HD450-7 |
| SH120A2/A3,SH130, SH200A2/A3, SH210A5, SH240A3, SH360A5 |
| KX155, KX135, KX161-3 |
