| MOQ: | 1 PCS |
| Price: | Negotiated price |
| Standard Packaging: | Standard shipping package |
| Delivery Period: | Within 2 working days |
| Payment Method: | T/T, paypal, credit card |
| Supply Capacity: | 1000PCS/Month |

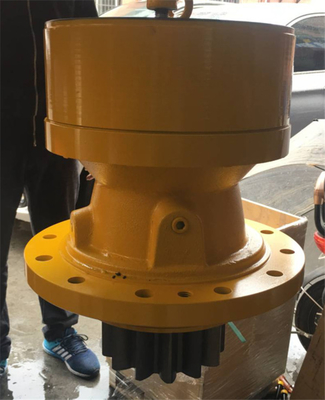

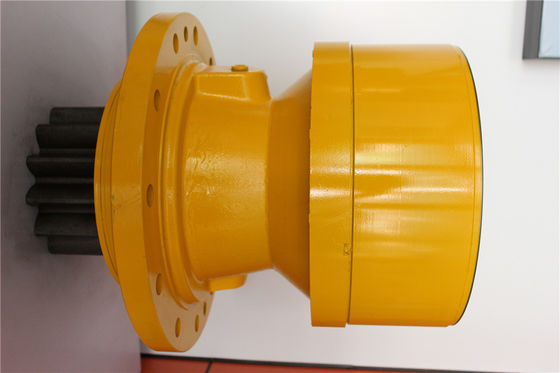

R210LC-7 31N6-10180 31N6-10150 Swing Reduction Motor Assy for excavator parts
The slewing gearbox (also called the swing drive or rotary gearbox) is a critical component in excavators, enabling 360-degree rotation of the upper structure (house) relative to the undercarriage.
Product description
| Part name | swing gearbox |
| Part number | 31N6-10180 31N6-10150 |
| Machine model | R210LC-7 |
| Warranty | 1 year |
| Weight | 200KG |
| Brand | Hyundai |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | @ | FUEL INJECTION PIPE & NOZZLE | 1 | |
| *-2 | 31N6-10180 | SWING REDUCTION GEAR | 1 | |
| 1 | XKAQ-00301 | CASING | 1 | |
| 2 | XKAQ-00005 | SHAFT-DRIVE OLD |
1 | |
| 2 | XKAQ-00331 | SHAFT-DRIVE NEW |
1 | |
| 3 | XKAQ-00018 | SPACER | 1 | |
| 5 | XKAQ-00026 | BEARING-ROLLER | 1 | |
| 6 | XKAQ-00032 | SEAL-OIL | 1 | |
| 7 | XKAQ-00029 | BEARING-ROLLER | 1 | |
| 8 | XKAQ-00076 | PLATE-THRUST | 1 | |
| 9 | XKAQ-00075 | CARRIER-2 | 1 | |
| 10 | XKAQ-00074 | RING-STOP | 1 | |
| 11 | XKAQ-00073 | GEAR-RING | 1 | |
| 12 | XKAQ-00072 | PIN-KNOCK | 4 | |
| 13 | XKAQ-00014 | GEAR-PINION | 1 | |
| 14 | XKAQ-00071 | WASHER-THRUST | 6 | |
| 15 | XKAQ-00023 | GEAR-PLANET 2 | 3 | |
| 16 | XKAQ-00070 | PIN & BUSHING INCL 23 |
3 | |
| 17 | XKAQ-00048 | PIN-SPRING | 6 | |
| 18 | XKAQ-00011 | GEAR-SUN 2 | 1 | |
| 19 | XKAQ-00015 | CARRIER-1 | 1 | |
| 20 | XKAQ-00057 | PLATE-SIDE 1 | 3 | |
| 21 | XKAQ-00019 | PIN 1 | 3 | |
| 22 | XKAQ-00030 | CAGE-NEEDLE | 3 | |
| N23 | @ | FUEL INJECTION PIPE & NOZZLE | 3 | |
| 24 | XKAQ-00025 | GEAR-PLANET 1 | 3 | |
| 25 | XKAQ-00044 | WASHER-LOCK OLD |
2 | |
| 25 | XKAQ-00292 | WASHER-LOCK NEW |
1 | |
| 26 | XKAQ-00068 | PLATE-SIDE 3 | 1 | |
| 27 | XKAQ-00010 | GEAR-SUN 1 | 1 | |
| 29 | XKAQ-00049 | PLUG-PRESSURE | 1 | |
| 30 | XKAQ-00066 | PLUG | 2 | |
| 31 | XKAQ-00065 | BOLT-SOCKET | 12 | |
| 34 | XKAQ-00031 | PLATE-COVER | 1 | |
| 35 | XKAQ-00064 | BOLT-HEX | 8 | |
| 36 | XKAQ-00043 | PLATE-LOCK OLD |
1 | |
| 36 | XKAQ-00296 | PLATE-LOCK NEW |
1 | |
| 37 | XKAQ-00042 | BOLT-HEX OLD |
4 | |
| 37 | XKAQ-00042 | BOLT-HEX NEW |
2 | |
| 38 | XKAQ-00041 | RING-STOP | 3 | |
| 39 | XKAQ-00040 | PLATE-SIDE 2 | 3 | |
| *-1 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4101 |
1 |

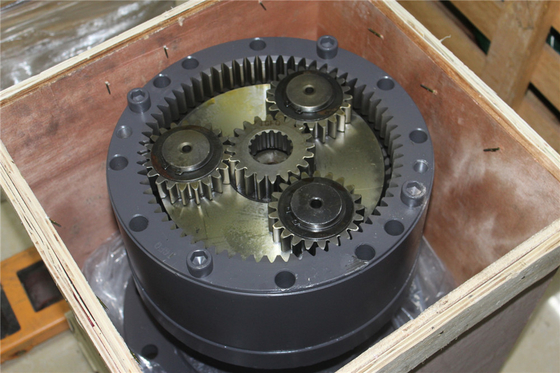

A typical slewing gearbox consists of:
Gears: Planetary gears, spur gears, or worm gears for torque multiplication.
Housing: Robust cast iron or steel casing to withstand heavy loads and environmental stress.
Input Shaft: Connects to the hydraulic motor.
Output Pinion: Engages with the slewing ring gear.
Bearings: Tapered or roller bearings to reduce friction.
Seals: Prevent lubricant leakage and contamination.
Brake Assembly: Disc or drum brakes for rotation control.
Rotation Control: Enables precise 360° excavator movement.
Load Distribution: Transfers operational loads (e.g., digging forces) to the undercarriage.
Shock Absorption: Mitigates impacts during sudden stops or uneven terrain.
Power Transmission: Efficiently transfers hydraulic/electric power to rotational motion.
