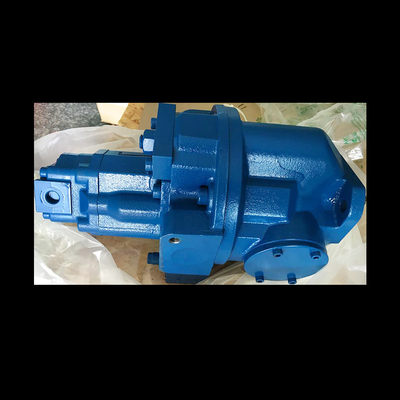

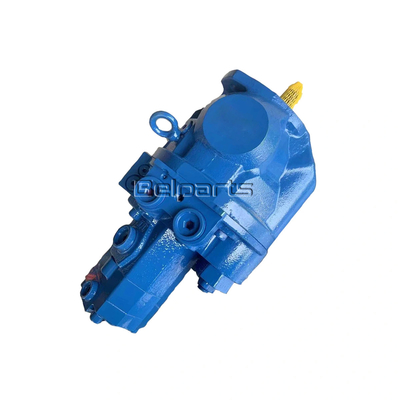

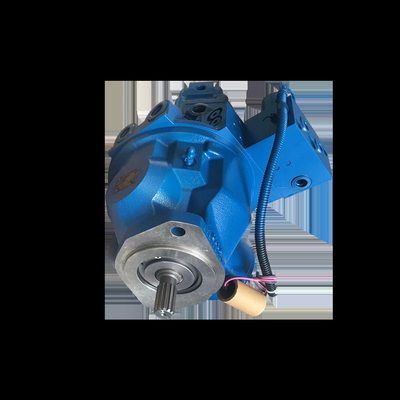

R55-7 Belparts Excavator For Hyundai R55-7 Hydraulic Main Pump 31M8-10020 31M8-10010
Quick Detail of Excavator Hydraulic Pump
Material:Steel
Product Name: Excavator Main Hydraulic Pump
Applicable Industries:Machinery Repair Shops, Manufacturing Plant
Dimension(L*W*H):35*51*52
Part number:31M8-10020 31M8-10021 31M8-10010
Package Details:Export Wooden Box
Weight:130KG
Surface treatment:Heat resistance paint
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | r55-7 |
| Pump Number | / |
| N.W/KG | 130KG |
| G.W/KG | 140KG |
| Packing Size | 84*38*49 |
| Part number | 31M8-10020 31M8-10021 31M8-10010 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Qty. | Price request |
| * | 31M8-10021 | MAIN PUMP STD |
1 | |
| * | 31M8-10011 | MAIN PUMP LOW NOISE |
1 | |
| 1 | XJDD-00786 | SHAFT ASSY | 1 | |
| 1-1 | XJDD-00796 | SHAFT | 1 | |
| 1-2 | XJDD-00797 | SEAL | 1 | |
| 1-3 | XJDD-00798 | BEARING | 1 | |
| 1-6 | XJDD-00799 | RETAINING RING(C TYPE) | 1 | |
| 1-8 | XJDD-00800 | OIL SEAL | 1 | |
| 1-9 | XJDD-00801 | O-RING | 1 | |
| 1-10 | XJDD-00802 | RETAINING RING(C TYPE) | 1 | |
| 2 | XJDD-00787 | HANGER ASSY | 1 | |
| 2-1 | XJDD-00803 | HANGER | 1 | |
| 2-1-1 | XJDD-01023 | HANGER | 1 | |
| 2-1-2 | XJDD-01024 | BUSH | 1 | |
| 2-2 | XJDD-00804 | COVER | 1 | |
| 2-3 | XJDD-00805 | SPACER | 1 | |
| 2-4 | XJDD-00806 | BEARING | 2 | |
| 2-5 | XJDD-00807 | SCREW-HEX SO HD CAP | 4 | |
| 2-6 | XJDD-00808 | O-RING | 1 | |
| 3 | XJDD-00865 | ROTARY GROUP STD |
1 | |
| 3 | XJDD-00788 | ROTARY GROUP LOW NOISE |
1 | |
| 3-1 | XJDD-00809 | PISTON ASSY | 10 | |
| 3-2 | XJDD-00810 | BLOCK-CYLINDER | 1 | |
| 3-4 | XJDD-00866 | RETAINER STD |
1 | |
| 3-4 | XJDD-00811 | RETAINER LOW NOISE |
1 | |
| 3-5 | XJDD-00812 | PLATE | 1 | |
| 3-6 | XJDD-00813 | GUIDE | 1 | |
| 3-7 | XJDD-00814 | SPRING | 1 | |
| 3-8 | XJDD-00044 | PIN-PARALLEL | 3 | |
| 3-9 | XJDD-00815 | SPRING SEAT | 2 | |
| 3-10 | XJDD-00816 | RETAINING RING(C TYPE) | 1 | |
| 5 | XJDD-01025 | SPRING SEAT ASSY STD |
1 | |
| 5 | XJDD-00867 | SPRING SEAT ASSY LOW NOISE |
1 | |
| 5-1 | XJDD-00828 | SPRING SEAT | 1 | |
| 5-2 | XJDD-01026 | SPACER-SPRING STD |
1 | |
| 5-2 | XJDD-00868 | SPRING SEAT LOW NOISE |
1 | |
| 5-3 | XJDD-00830 | COVER | 1 | |
| 5-4 | XJDD-00731 | SCREW-ADJUSTING | 1 | |
| 5-7 | XJDD-00831 | O-RING | 1 | |
| 5-8 | XJDD-00733 | SCREW-HEX S/HD CAP | 2 | |
| 5-9 | XJDD-00734 | NUT-HEX | 1 | |
| 5-34 | XJDD-00832 | SHIM | 2 | |
| 5-44 | XJDD-00833 | SHIM | 2 | |
| 5-54 | XJDD-00834 | SHIM | 2 | |
| 5-64 | XJDD-00835 | SHIM | 2 | |
| 8 | XJDD-00793 | HOUSING | 1 | |
| 11 | XJDD-00010 | VALVE-AIR VENT | 1 | |
| 13 | XJDD-00884 | SPRING | 1 | |
| 14 | XJDD-00885 | SPRING | 1 |
1) Material: All our products are used high quality genuiner raw material.
2) Inspection: We make a very strict inspection process before delivery.
3) Inventory: We have about 1000 pieces in stock, can provide you at once.
4) Price: We have steady in stock and we can offer competitive price.
5) Delivery time: We will deliver the goods within 1-3 days after received the payment.
6) Service: We have a professional team to offer professional service for you 24/7.
7) All the spare parts are 100% measured, 100% interchangeable.
Why Choose the R55-7 Hydraulic Pump?
The R55-7 Hydraulic Pump is the perfect choice for businesses and individuals looking for a reliable, efficient, and durable hydraulic pump. Its advanced technology, unmatched durability, and versatile applications make it the ideal solution for a wide range of hydraulic needs.
Investing in the R55-7 Hydraulic Pump means investing in peace of mind. With its exceptional performance and long-lasting construction, this pump is sure to provide years of reliable service, saving you time, money, and hassle in the long run.
Don't settle for less when it comes to your hydraulic needs. Choose the R55-7 Hydraulic Pump for unparalleled efficiency, durability, and reliability. Contact us today to learn more about this amazing product and place your order!
