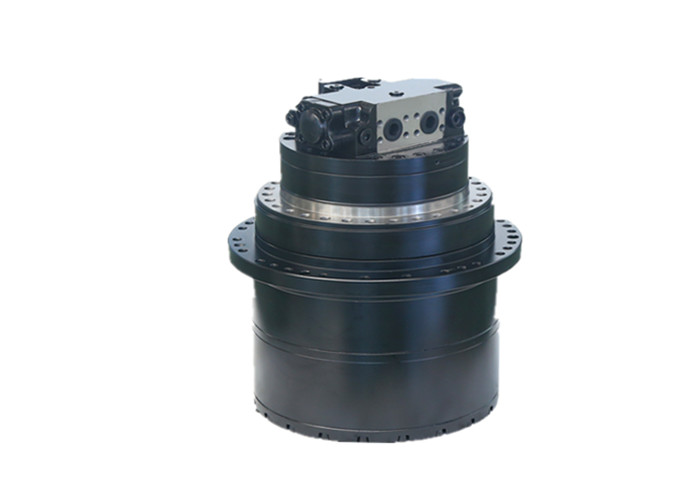

Belparts ZTM40 final drive YN15V00037F1 TM40 travel motor assy SK210-8 EC210B
| Appliion | Crawler excavator |
| Part name | Final drive ass'y |
| Machine modle | SK210-8 EC210B |
| Motor model | TM40 |
| Product name | Travel motor |
| Quality | Aftermarket |
| Warranty | 6 months |
| MOQ | 1 pieces |
| Situation | Made in China |
Kobelco parts alog(200-8) -
EXCAVATOR S/N YN11-45001 - (1/06-12/09)
(336-01A-1) - LOW GROUP » YN15V00037F1
(336-01-1) - LOW GROUP » YN15V00037F1
(330-02A-1) - LOW GROUP (HD) » YN15V00037F1
(330-02-1) - LOW GROUP (HD) » YN15V00037F1
(330-01A-1) - LOW GROUP » YN15V00037F1
(336-02A-1) - LOW GROUP (HD) » YN15V00037F1
(330-01-1) - LOW GROUP » YN15V00037F1
(336-02-1) - LOW GROUP (HD) » YN15V00037F1
(HC370-01-2[2]) - MOTOR ASSY (PROPELLING) » YN15V00037F1
(HC370-01-1[1]) - MOTOR ASSY (PROPELLING) » YN15V00037F1
(SK170-9) - ACERA MARK 9 EXCAVATOR - TIER 4, ASN YM08U2000 (1/12-12/13)
(35.353.30[02]) - TRAVEL MOTOR & REDUCTION GEAR (NABTESCO) » YN15V00037F1
(35.353.30[01]) - TRAVEL MOTOR & REDUCTION GEAR (NABTESCO) » YN15V00037F1
(SK210-8) - HYDRAULIC EXCAVATOR - TIER 3 ROPS (NA) ASN YQ12U4800 (7/06-12/06)
(07-021[02]) - MOTOR ASSY (PROPELLING) » YN15V00037F1
(07-021[01]) - MOTOR ASSY (PROPELLING) » YN15V00037F1
(SK210-9) - ACERA MARK 9 EXCAVATOR - TIER 4, ASN YQ13U5200 - (10/2012 -) (1/03-12/13)
(35.353.21) - MOTOR ASSY (PROPELLING) » YN15V00037F1
(35.353.20) - MOTOR ASSY (PROPELLING) » YN15V00037F1
(SK210D-8) - EXCAVATOR S/N YN11-45001 - (1/07-12/12)
(330-01A-1) - LOW GROUP » YN15V00037F1
(336-02A-1) - LOW GROUP (HD) » YN15V00037F1
(330-01-1) - LOW GROUP » YN15V00037F1
(336-02-1) - LOW GROUP (HD) » YN15V00037F1
(336-01A-1) - LOW GROUP » YN15V00037F1
(336-01-1) - LOW GROUP » YN15V00037F1
(330-02A-1) - LOW GROUP (HD) » YN15V00037F1
(330-02-1) - LOW GROUP (HD) » YN15V00037F1
(HC370-01-1[1]) - MOTOR ASSY (PROPELLING) » YN15V00037F1
(HC370-01-2[2]) - MOTOR ASSY (PROPELLING) » YN15V00037F1
Cautions of Final Drive Installation
|
1. Clean the hydraulic oil circuit, replace the hydraulic oil filter and return oil filter. The mixing of fine particles such as mud, sand or metal powder in the hydraulic oil will wear out motor inner parts too quickly. It is also the main reason for the stuck phenomenon.
|
|
2. Check whether the gearbox is filled with gear oil. The volume of the gear oil should be more than half of the total volume of the gearbox. (Generally,factory will add gear oil in final drive )
|
| 3. Generally, for a new Chinese made final drive ass'y , it is necessary to replace the new gear oil after using for 7 days or 60 hours for the first time. The second time to change the gear oil is in the 2nd -3rd months. After that, it depends on the usuage situation of the final drive. |
| 4.Try to avoid long-term immersion in water and avoid long-term operation in dusty environment; try to keep the working temperature between -5 to +30 degrees Celsius, avoid extreme cold and hot weather. |
| 5.Difference between the quality of hydraulic oil (motor part) and gear oil (gear box part): Good hydraulic oil and gear oil can extend the service life. |
|
6. Check if the pipeline connection is correct.
|
| 7.Check if the walking direction is correct. |
| 8.Check the travel motor and reducer if have the phenomenon of oil leakage. |
| 9.Check if there is any abnormal temperature rise in the short term after operation. |
| 10.Check if the pressure setting is normal. |
Advantage
|
our products have been exported to more than 100 countries and regions,Therefore, we are very professional in import and export products, can provide good services for your import, solve your troubles
|
|
A bundant of data in our system, we can check out the products with your model, size, pictures, part number, drawing, etc.
|
|
Every part before shipment will take photos, check the part numbers or models, measure sizes and repack well,etc.
|
|
Delivery goods the same day after payment or within 2 days, or we will inform the estimate delivery time.
|
|
As long as customer's requirements are reasonable, we will endeavour to make them satisfied.
|
|
Stable suppliers, competitive prices, and professional purchasing and business personnel provide you with multiple layers of protection when you buy a product, so you can buy with confidence.
|
