31N8-10181 Excavator Swing Reduction Gear Hyundai R290-7 R290LC-7A R305-7 R305LC-7
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Guangdong, China (Mainland) | Brand Name | Belparts |
|---|---|---|---|
| Warranty | 6 Months | Appliion | Excavator |
| Model | R290-7 R290LC-7A R305-7 R305LC-7 | Part Number | 31N8-10180 31N8-10181 31E9-01052 |
| Delivery Time | Within 24h-48h | MOQ | 1 Pcs |
| Highlight | swing reducer,swing reduction gear |
||
Product Description

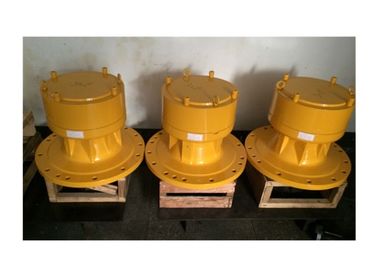

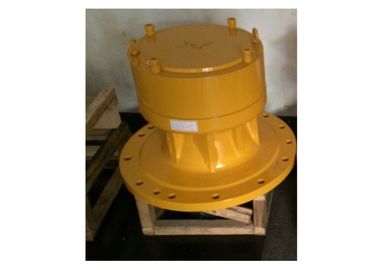

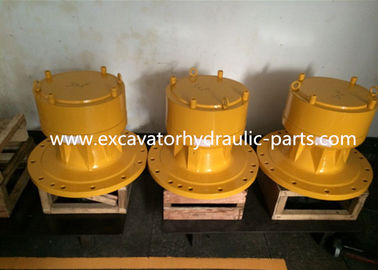

31N8-10181 Excavator Swing Reduction Gear Hyundai R290-7 R290LC-7A R305-7 R305LC-7
- Description of Hyundai R290-7 R290LC-7A R305-7 R305LC-7 Swing Reduction Gear
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing .
- Spec Sheet
| Excavator spare parts name | Swing reducer |
| Equipment Model | R305-7 R300-7 R290-7 |
| Parts egory | excavator swing gear |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
Supply Ability
Supply Ability: 500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details: Standard shipping package
Port: Huangpu
Lead Time :
| Quantity(Pieces) | 1 - 1 | >1 |
| Est. Time(days) | 2 | To be negotiated |
Schemes of the spare part 31N8-10181 SWING REDUCTION GEAR
CRAWLER EXCAVATOR Hyundai R305LC-7
R305LC-7 / HYDRAULIC COMPONENT / SWING REDUCTION GEAR(#0479-)
SWING REDUCTION GEAR(#0479-)
List of spare parts
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | @ | FUEL INJECTION PIPE & NOZZLE SEE 4101 |
1 | |
| *-2 | 31N8-10180 | SWING REDUCTION GEAR | 1 | |
| *-2 | 31N8-10181 | SWING REDUCTION GEAR | 1 | |
| 1 | XKAQ-00427 | CASING | 1 | |
| 2 | XKAQ-00428 | SHAFT-DRIVE | 1 | |
| 2 | XKAQ-00759 | SHAFT-DRIVE | 1 | |
| 3 | XKAQ-00117 | BEARING-ROLLER | 1 | |
| 4 | XKAQ-00119 | SEAL-OIL | 1 | |
| 5 | XKAQ-00120 | BEARING-ROLLER | 1 | |
| 6 | XKAQ-00429 | CARRIER ASSY-2 | 1 | |
| 7 | XKAQ-00430 | CARRIER-2 | 1 | |
| 8 | XKAQ-00431 | GEAR-PLANET,2 | 4 | |
| 9 | XKAQ-00432 | PIN ASSY-2 | 4 | |
| 10 | XKAQ-00433 | PIN-2 | 1 | |
| 11 | XKAQ-00434 | BUSHING-2 | 1 | |
| 12 | XKAQ-00435 | WASHER-THRUST | 8 | |
| 13 | XKAQ-00050 | PIN-SPRING | 4 | |
| 14 | XKAQ-00436 | GEAR-SUN,2 | 1 | |
| 15 | XKAQ-00437 | CARRIER ASSY-1 | 1 | |
| 16 | XKAQ-00438 | CARRIER-1 | 1 | |
| 17 | XKAQ-00439 | GEAR-PLANET,1 | 4 | |
| 18 | XKAQ-00440 | PIN ASSY-1 | 4 | |
| 19 | XKAQ-00441 | PIN ASSY-1 | 1 | |
| 20 | XKAQ-00079 | BUSHING-1 | 1 | |
| 21 | XKAQ-00417 | PLATE-SIDE 1 | 4 | |
| 22 | XKAQ-00416 | PLATE-SIDE 2 | 4 | |
| 23 | XKAQ-00041 | RING-STOP | 4 | |
| 24 | XKAQ-00048 | PIN-SPRING | 4 | |
| 25 | XKAQ-00442 | GEAR-SUN,1 | 1 | |
| 26 | XKAQ-00444 | GEAR-RING | 1 | |
| 27 | XKAQ-00443 | PLATE-COVER | 1 | |
| 28 | XKAQ-00445 | SPACER | 1 | |
| 28 | XKAQ-00758 | SPACER | 1 | |
| 29 | XKAQ-00446 | RING-SPACER | 1 | |
| 30 | XKAQ-00072 | PIN-KNOCK | 2 | |
| 31 | XKAQ-00447 | PLATE-THRUST,3 | 1 | |
| 32 | XKAQ-00013 | GEAR-PINION | 1 | |
| 33 | XKAQ-00043 | PLATE-LOCK | 1 | |
| 33 | XKAQ-00757 | PLATE-LOCK | 1 | |
| 34 | XKAQ-00064 | BOLT-HEX | 8 | |
| 35 | XKAQ-00042 | BOLT-HEX | 2 | |
| 35 | XKAQ-00756 | BOLT-HEX | 4 | |
| 36 | XKAQ-00292 | WASHER-LOCK | 1 | |
| 37 | XKAQ-00448 | BOLT-SOCKET | 12 | |
| 38 | XKAQ-00049 | PLUG-PRESSURE | 1 | |
| 39 | XKAQ-00066 | PLUG | 2 | |
| 40 | XKAQ-00167 | PIPE-GAUGE | 1 | |
| 41 | XKAQ-00449 | BAR-GAGE | 1 | |
| 42 | XKAQ-00143 | AIR BREATHER ASSY | 1 |
Hyundai R290-7 R290LC-7A R305-7 R305LC-7 Swing Reduction Gear
- Advantage
1. The gear parts are built to fit to the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts alog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI DOOSAN KOBELCO SUMITOMO KATO JCB
- Warranty
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* rust
FAQ
When will ship my order ?
Once we get comfirmation of payment ,we will try the best to ship order within 24 hours
Which shipment you can supply
By sea ,by air or by express (DHL,TNT,UPS,EMS)
How long does it take to my address?
The Normal delivery time is 2-5 days ,depending on which country you are in
How can I trace my order ?
We will send you he tracking number by email
If was not satisfied with the products ,can I return goods?
Yes ,we offer exchange and repair service in the warranty time ,please contact us before you return
