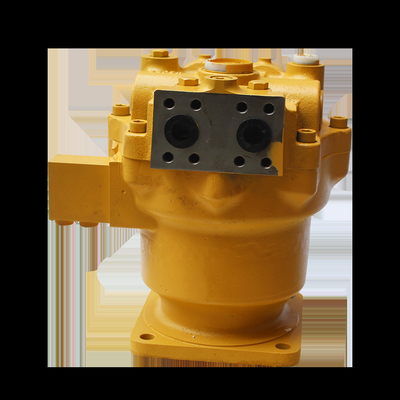

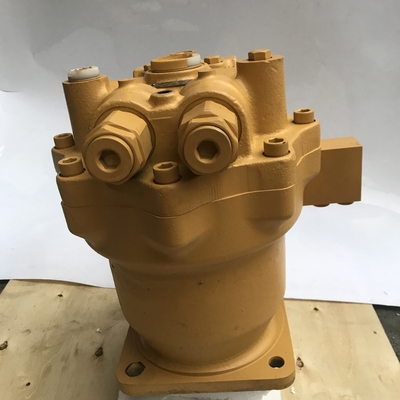

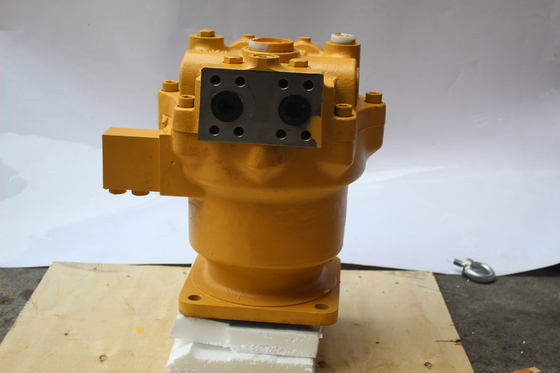

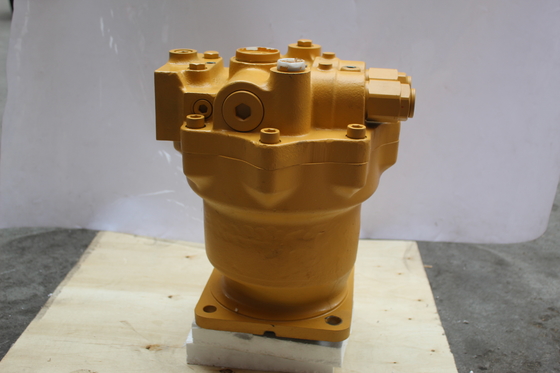

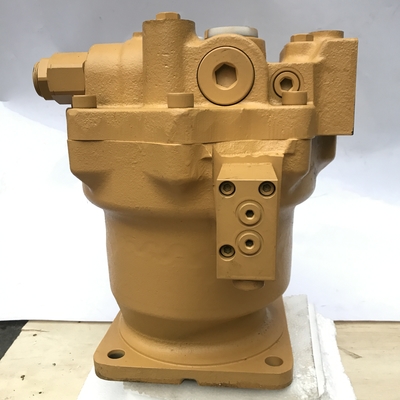

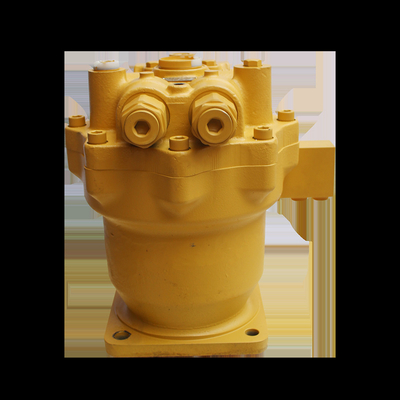

Belparts excavator R360-9 swing motor 31NA-10120 31NA-10160 31QA-10130 slewing motor for hyundai
| Appliion | Excavator |
| Part name | swing motor |
| Model | R360-9 |
| Package | 43*48*38 |
| Part number | 31NA-10120 31NA-10160 31QA-10130 |
| Weight | 360KG |
| Brand | Hyundai |
| # | Part No | Part Name | Qty. | Price request |
|---|---|---|---|---|
| * | 31NA-10120 | SWING UNIT *-1,*-2 |
1 | |
| *-1 | XJDB-00223 | SWING MOTOR UNIT | 1 | |
| 1 | XJDB-00164 | RING-SNAP 0809-198 |
1 | |
| 2 | XJDB-00165 | RING-INNER 1399-210 |
1 | |
| 3 | XJDB-00167 | SEAL-OIL 0722-137 |
1 | |
| 4 | XJDB-00168 | BEARING-T/ROLLER 0671-135 |
1 | |
| N5 | XJDB-00169 | HOUSING 1311-297 |
1 | |
| 6 | XJDB-00170 | PLATE-CAM 1398-153 |
1 | |
| 7 | XJDB-00171 | PLATE-RETURN 1398-154 |
1 | |
| 8 | XJDB-00172 | SPRING-BACKING 1390-174 |
1 | |
| N9 | XJDB-00173 | CYLINDER 1318-182 |
1 | |
| 10 | XJDB-00174 | PISTON ASSY 1321-238 |
9 | |
| 11 | XJDB-00175 | PLATE-LINING 7598-033 |
4 | |
| 12 | XJDB-00176 | PLATE-FREE 7598-034 |
4 | |
| 13 | XJDB-00177 | PISTON 1320-137 |
1 | |
| 14 | XJDB-00178 | O-RING 0200-158 |
1 | |
| 15 | XJDB-00179 | O-RING 0200-159 |
2 | |
| 16 | XJDB-00014 | SPRING 1390-166 |
19 | |
| 17 | XJDB-00180 | RING-TEFLON 0719-072 |
4 | |
| 18 | XJDB-00181 | PLATE-DISK 1390-175 |
4 | |
| 19 | XJDB-00182 | BUSHING 1391-130 |
4 | |
| 20 | XJDB-00017 | CAP 0824-051 |
2 | |
| 21 | XJDB-00018 | O-RING 8202-009 |
2 | |
| 22 | XJDB-00183 | BOLT-SOCKET 0576-061 |
1 | |
| N23 | XJDB-00184 | PISTON 1320-158 |
2 | |
| 24 | XJDB-00222 | COVER 1303-341 |
1 | |
| 25 | XJDB-00015 | PIN-PARALLEL 0522-143 |
2 | |
| 26 | XJDB-00186 | PIN-PARALLEL 0522-145 |
1 | |
| 27 | XJDB-00187 | PLATE-BALANCE 1313-182 |
1 | |
| 28 | XJDB-00188 | BEARING-NEEDLE 0682-136 |
1 | |
| 29 | XJDB-00189 | RING-SNAP 0809-199 |
1 | |
| 30 | XJDB-00190 | CAP 0824-053 |
1 | |
| 31 | XJDB-00032 | O-RING 8202-014 |
3 | |
| 32 | XJDB-00096 | O-RING 0207-002 |
2 | |
| 33 | XJDB-00191 | RELIEF VALVE ASSY 3537-218 |
2 | |
| 34 | XJDB-00073 | BOLT-SOCKET 0576-034 |
7 | |
| 35 | XJDB-00044 | CAP 3526-327 |
2 | |
| 36 | XJDB-00043 | SPRING 3590-288 |
2 | |
| 37 | XJDB-00045 | RING-BACK UP 0859-229 |
2 | |
| 38 | XJDB-00036 | O-RING 8202-021 |
2 | |
| 39 | XJDB-00042 | VALVE-CHECK 3513-154 |
2 | |
| 40 | XJDB-00033 | O-RING 8202-010 |
2 | |
| 41 | XJDB-00031 | RING-BACK UP 0859-320 |
2 | |
| 42 | XJDB-00030 | BYPASS VALVE ASSY 3537-252 |
2 | |
| 43 | XJDB-00038 | VALVE-TIME DELAY 1329-111 |
1 | |
| 44 | XJDB-00037 | BOLT-SOCKET 0576-054 |
3 | |
| 45 | XJDB-00039 | O-RING 0200-010 |
1 | |
| 46 | XJDB-00040 | O-RING 0200-049 |
2 | |
| *-2 | @ | FUEL INJECTION PIPE & NOZZLE SEE 4110 |
1 | |
| N | @ | FUEL INJECTION PIPE & NOZZLE | AR |
R360LC-7; R370LC-7;
| Model | Section node |
|---|---|
| R360LC-7 | HYDRAULIC COMPONENT / SWING MOTOR(-#0062) |
| R370LC-7 | HYDRAULIC COMPONENT / SWING MOTOR(MFC250-014) |
| - | HYDRAULIC COMPONENT / SWING MOTOR(MFC250-014) |
