Part Number |

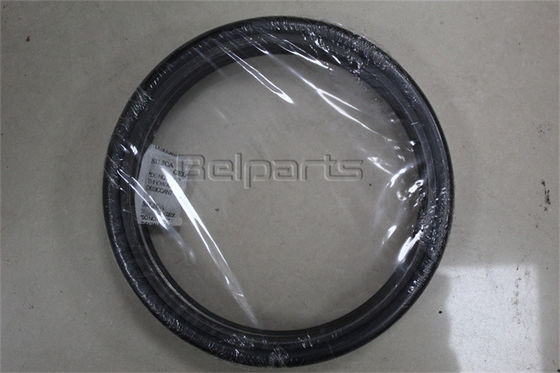

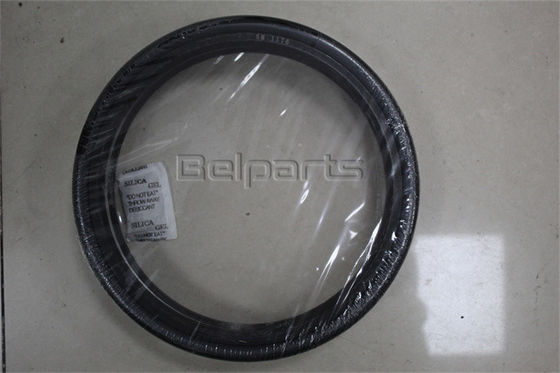

4092483 Floating Seal For Final Drive |
Place of Origin: |
China(Mainland) |
Model: |
EX60, EX60G, EX60SR, EX60UR, EX75UR, EX75UR-3, UH031, UH031M, UH033, UH033SR, UH041, UH043 |
MOQ: |
1 PCS |
Payment term: |
T/T & Paypal |
Delivery time: |
Within 2 days after receiving the payment |
Packing: |
Standard exporting packing or as required |
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 9069509 | [1] | MOTOR;OIL | I 9123069 |
| 00. | 9123069 | [1] | MOTOR;OIL | Y 9138838 |
| 00. | 9138838 | [1] | MOTOR;OIL | |
| 00-49. | 9069295 | [2] | TRAVEL DEVICE ASS'Y | Y 9096479 |
| 00-54. | 9096479 | [2] | TRAVEL DEVICE ASS'Y | I 9138927 |
| 00-54. | 9138927 | [2] | TRAVEL DEVICE ASS'Y | |
| 01. | 1011457 | [1] | HOUSING | |
| 02. | 4092443 | [1] | SPACER | |
| 03. | 991726 | [1] | RING;RETAINING | |
| 04. | 4148014 | [2] | BRG.;ROL | |
| 05. | 4092483 | [1] | SEAL;GROUP | |
| 06. | 1011458 | [1] | DRUM | |
| 07. | 1010447 | [1] | SPROCKET | |
| 08. | J931635 | [12] | BOLT | Y J931640 |
| 08. | J931635 | [12] | BOLT | |
| 08. | J931640 | [12] | BOLT | Y J931635 |
| 09. | A590916 | [12] | WASHER;SPRING | |
| 11. | 2023132 | [1] | GEAR;RING | |
| 12. | 3027147 | [1] | NUT | |
| 13. | 4148012 | [1] | PIN;KNOCK | |
| 16. | 2023175 | [1] | CARRIER | |
| 17. | 3027146 | [1] | GEAR;SUN | |
| 18. | 959499 | [1] | RING;RETAINING | |
| 19. | 3027148 | [3] | GEAR;PLANETARY | |
| 20. | 4177007 | [3] | BRG.;NEEDLE | |
| 21. | 4192910 | [6] | PLATE;THRUST | |
| 22. | 4178202 | [3] | PIN | |
| 23. | 4169566 | [3] | PIN;SPRING | |
| 23. | 4173093 | [3] | PIN;SPRING | Y 4169566 |
| 25. | 1010450 | [1] | CARRIER | |
| 26. | 3027149 | [3] | GEAR;PLANETARY | |
| 27. | 4148013 | [3] | BRG.;NEEDLE | |
| 28. | 4148016 | [3] | PIN | |
| 29. | 4144017 | [3] | PIN;SPRING | |
| 30. | J011230 | [12] | BOLT;SEMS | |
| 30. | M221232 | [12] | BOLT | I J011230 |
| 31. | A590912 | [12] | WASHER;SPRING | |
| 33. | 4245797 | [3] | PLUG | |
| 33. | 94-2013 | [2] | PLUG | |
| 33. | 94-2013 | [3] | PLUG | Y 4245797 |
| 34. | 4148080 | [6] | PLATE;THRUST | |
| 35. | 2017872 | [1] | SHAFT;PROP. | |
| 36. | 4092444 | [1] | SPACER | |
| 37. | 3036156 | [6] | PLATE | T 3070674 |
| 37. | 3036156 | [6] | PLATE | T 3070675 |
| 37. | 3070675 | [6] | PLATE | |
| 38. | 3036157 | [5] | PLATE;FRICTION | T 3070674 |
| 38. | 3036157 | [5] | PLATE;FRICTION | T 3070675 |
| 38. | 3070674 | [5] | PLATE;FRICTION | |
| 39. | 3036158 | [1] | PISTON | |
| 40. | 4092712 | [1] | D-RING | |
| 41. | 4092713 | [1] | D-RING | |
| 42. | 3017067 | [1] | SPRING;DISC | |
| 44. | 4154877 | [1] | O-RING | |
| 45. | 957366 | [1] | O-RING | |
| 46. | 929231 | [1] | RING | |
| 47. | 94-2010 | [1] | PLUG | |
| 48. | 4192042 | [6] | BOLT;SOCKET | |
| 49. | A590914 | [6] | WASHER;SPRING | |
| 53. | M492564 | [2] | SCREW;DRIVE | |
| 54. | 3053559 | [1] | NAME-PLATE | Y 3071686 |
| 54. | 3071686 | [1] | NAME-PLATE | (FOR TRANSMISSION) |
| 60. | J931650 | [24] | BOLT | |
| 61. | A590916 | [24] | WASHER;SPRING |
Guangzhou Belparts Engineering Machinery Limited
A foreign trade company, which is specialized in developing, manufacturing, selling, procuring, storing, transporting and serving. Our main products are spare parts of Excavator, Loader and Breaker. Company business scope mainly for: wholesale and retail trading, importing and exporting of goods, importing and exporting of technologies. Relying on rich experiences, strong and professional team, high-quality personnel and high-quality service, our products are selling well all around the world.
| DH50-7, DH55D, DH60-7, DH80, DH130, DH150, DH150W-9, DH215-5, DH200-5, DH150LC-7, DH215-7, DH220-5, DH220-7, DH220-9, DH220-10, DH225-9, DH258, DH258LC-7, DH280, DH290B, DH300-5, DH300-7, DH320, DH360, DH370, DH500, DX300 | ||
| R60-7, R80, R130, R140, R150-7, R150-9, R1107-7, R160-7, R210, R220, R220-7, R215-7, R220-5, R225-7, R225-9T, R225lc-7, R290, R350-7,R110-9, R215-9, R275LC-9, R305, R305-7, R320, R335-7,R360, R370, R375, R375-7H, R455, R460, R485-7 | ||
| EC130, EC140B, EC210B, EC210C, EC235C, EC240B, EC290, EC290B, EC290C, EC360B, EC460B, EC460C, EC480D | ||
| E305, E320, E325C, E315C, E330C, E315D, E320D, E325D, E330D, E360D, E70B, E120B, E200B, E320B, E330B | ||
| PC35,PC40,PC45, PC50, PC55, PC60,PC60-6, PC70, PC75, PC78, PC80, PC90, PC100, PC110, PC120, PC120-7, PC130, PC150, PC160, PC180, PC200,PC200-6, PC200-7,PC200-8, PC210-8, PC220-6,PC220-7,PC210, PC220, PC230, PC240,PC240-8, PC270, PC300, PC360,PC360-7, PC350, PC400, PC450, PC650, PC750, PC1250 D31, D50, D65, D85, D155, D275, D375, D475 | ||
| EX200-2, EX220-2, EX120-5, EX200-5, EX220-5, EX400-5, ZX200-3, ZX210-3, ZX240-3, ZX270-3, ZX330-3, ZX360-3, ZX110, ZX120, ZX200-6,ZX200-3G,ZX200-5G,ZX330-3G,ZX350-5G | ||
| SK200-3, SK200-5, SK135rs, SK70rs,SK60,SK120-5, SK200-8, SK250-8, SK260-8, SK130-8, SK200-6e, SK210-6e, SK160 | ||
| HD80R, HD820-5, HD1023, HD1430, HD700-7,HD1430-7, HD1250-7, HD450-7 | ||
| SH120A2/A3,SH130, SH200A2/A3, SH210A5, SH240A3, SH360A5 | ||
| KX155, KX135, KX161-3 |
1 . If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the size for reference.
2 . What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.
3 . How can I pay the order?
You can finish the payment by T/T,Western Union,Paypal etc.
4 . When will get the items after I place order?
Once we received your payment , we will arrange the shipment within 24 hours ; if don't have stock , we will tell you before payment .
5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.
6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts . If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
