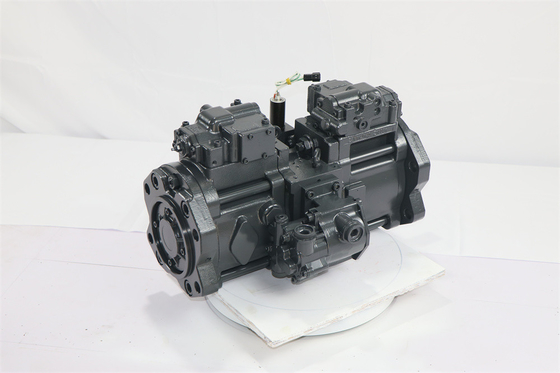

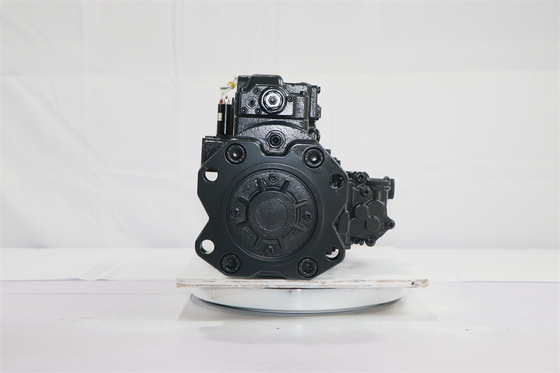

Excavator main pump SOLAR 255LC SOLAR 280LC SOLAR 290LC hydraulic pump 2401-9233 2401-9154B 2401-9154C 401-00347
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:SOLAR 255LC SOLAR 280LC SOLAR 290LC
Packing Size:84*38*49
Part number:2401-9233 2401-9154B 2401-9154C 401-00347
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | SOLAR 255LC SOLAR 280LC SOLAR 290LC |
| Packing Size | 84*38*49 |
| Part number | 2401-9233 2401-9154B 2401-9154C 401-00347 |
| Pressure | Standard, High Pressure |

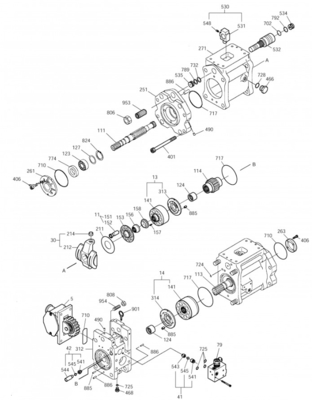

| # | Part No | Part Name | Comment | Qty. | Price request |
| 901 | 212033 | BOLT, EYE | 2 | ||
| 953 | 118892 | SCREW, SET M16X30L | 2 | ||
| 954 | 113803 | SCREW, ADJUST | 2 | ||
| * | 401-00059KT | SEAL KIT, BODY+REG.+PTO | 1 SET | ||
| - | 401-00347 | PUMP, MAIN | 147 kg | 1 | |
| 5 | 719943 | PTO ASS'Y | 7 kg | 1 | |
| 79 | 719753 | VALVE, PROPORTIONAL | 3 kg | 1 | |
| 111 | 135323A | SHAFT, DRIVING(FRONT) | 1 | ||
| 113 | 124569A | SHAFT, DRIVING(R) | 1 | ||
| 114 | 137481 | GEAR 1 | 1 | ||
| 123 | 219362 | BEARING, ROLLER | 2 | ||
| 124 | 219363 | BEARING, SPACER | 2 | ||
| 127 | 113784A | SPACER, BEARING | 4 | ||
| 13 | 716776-PH | CYL BLOCK ASSY(RH) | 1 SET | ||
| 141 | 137491 | BLOCK, CYLINDER | 1 | ||
| 313 | 115798A | PLATE, VALVE(R) | 1 | ||
| 14 | 716777-PH | CYL BLOCK ASSY(LH) | 1 | ||
| 141 | 137491 | BLOCK, CYLINDER | 1 | ||
| 314 | 115799 | PLATE, VALVE(L) | 1 | ||
| 11 | 704543A | PISTON & SHOE ASS'Y | 2 SET | ||
| 151 | 113778C | PISTON | 18 | ||
| 152 | 113779B | SHOE | 18 | ||
| 153 | 117586 | PLATE, PUSH | 2 | ||
| 156 | 121437 | BUSH, SPHERICAL | 2 | ||
| 157 | 134535 | SPRING, CYLINDER | 18 | ||
| 158 | 113789 | SPACER | 2 | ||
| 211 | 113790B | PLATE, SHOE | 2 | ||
| 30 | 717008 | SWASH PLATE ASS'Y | 2 | ||
| 212 | 113780-1 | PLATE, SWASH | 3 kg | 2 | |
| 214 | 218550 | BUSH, TILTING | 2 | ||
| 251 | 113791A | SUPPORT | 11 kg | 2 | |
| 261 | 135322 | COVER, SEAL(FRONT) | 1 | ||
| 263 | 129993 | FLANGE(F) | 1 | ||
| 271 | 113794B | CASING, PUMP | 2 | ||
| 312 | 137259 | BLOCK, VALVE | 1 | ||
| 401 | 113797 | BOLT, HEX SOCKET HEAD | 8 | ||
| 406 | 200846 | BOLT, HEX SOCKET HEAD | 8 | ||
| 466 | 108847 | PLUG PF3/4 | 4 | ||
| 468 | 108844 | PLUG, VP | 2 | ||
| 490 | 134596 | PLUG(NPTF1/16) | 18 | ||
| 530 | 717005 | TILTING PIN ASS'Y | 2 | ||
| 531 | 115792 | PIN, TILTING | 2 | ||
| 548 | 113380 | PIN, FEEDBACK | 2 | ||
| 532 | 113798A | PISTON, SERVO | 2 | ||
| 534 | 113799 | STOPPER(L) | 2 | ||
| 535 | 113800 | STOPPER(S) | 2 | ||
| 41 | 704550A | CHECK 1 ASS'Y | 2 | ||
| 541 | 113706 | SEAT | 2 | ||
| 543 | 113705 | STOPPER(1) | 2 | ||
| 545 | 200166 | BALL, STEEL | 2 | ||
| 42 | 704544A | CHECK 2 ASS'Y | 2 | ||
| 541 | 113706 | SEAT | 2 | ||
| 544 | 113703 | STOPPER 2 | 2 | ||
| 545 | 200166 | BALL, STEEL | 2 | ||
| 702 | 220019 | O-RING 1BG35 | 2 | ||
| 710 | 204452 | O-RING 1BG95 | 2 | ||
| 717 | 201639 | O-RING 1BG145 | 4 | ||
| 724 | 201765 | O-RING 1BP8 | 16 | ||
| 725 | 201689 | O-RING 1BP11 | 6 | ||
| 728 | 201721 | O-RING 1BP24 | 4 | ||
| 732 | 220016 | O-RING 1BP18 | 2 | ||
| 774 | 232117 | SEAL, OIL TCV40V | 1 | ||
| 789 | 203480 | RING, BACK-UP T2P18 | 2 | ||
| 792 | 203418 | RING, BACK-UP T2G45 | 2 | ||
| 806 | 201557 | NUT, HEX (ORNM16 | 2 | ||
| 808 | 102048 | NUT=ORMN20 | 2 | ||
| 824 | 202606 | RING, SNAP C-40S | 2 | ||
| 885 | 113801 | PIN D8X12L | 2 | ||
| 886 | 200678 | PIN, SPRING D6X14 | 2 kg | 4 |
