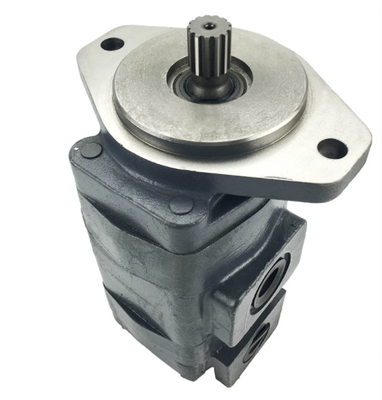

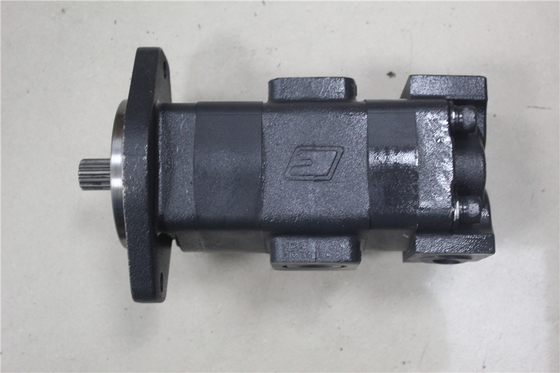

Belparts excavator hydraulic gear pump EC360C L EC330C L EC360B LC EC330B LC pilot pump assembly VOE 14530502
Brand Name:Belparts
Name:Hydraulic Gear Pump
Model:EC360C L EC330C L EC360B LC EC330B LC
Material:Steel
Color:Silver
Part Name:Pilot Pump
Part number:VOE 14530502
| Brand Name | Belparts |
| Model | EC360C L EC330C L EC360B LC EC330B LC |
| Name | Hydraulic Gear Pump |
| Material | Steel |
| Color | Silver |
| Part Name | Pilot Pump |
| Part number | VOE 14530502 |
| # | Part No | Part Name | Qty. | Price request |
| 8280233 | ||||
| VOE 14530502 | Gear Pump | 1 | ||
| 1 | VOE 14536185 | Cover | 1 | |
| 2 | VOE 14536187 | Gear | 1 | |
| 3 | VOE 14536190 | Cover | 1 | |
| 4 | VOE 14536192 | Carrier | 1 | |
| 5 | VOE 14536195 | Housing | 1 | |
| 6 | VOE 14536197 | Plate | 4 | |
| 7 | VOE 14536204 | Shaft | 1 | |
| 8 | VOE 14539006 | Housing | 1 | |
| 9 | VOE 14539657 | Gear | 1 | |
| 10 | VOE 14536202 | Pin | 8 | |
| 11 | VOE 14536201 | Seal | 1 | |
| 12 | VOE 14536196 | Seal | 4 | |
| 13 | VOE 14536198 | Seal | 4 | |
| 14 | VOE 14536200 | Seal | 4 | |
| 15 | VOE 14539658 | Bolt | 4 | |
| 16 | VOE 14536203 | Washer | 4 | |
| 17 | VOE 14539659 | Nut | 4 | |
| 100 | VOE 14536208 | Sealing Kit | 1 |
