| Product name |

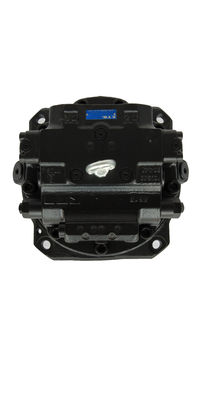

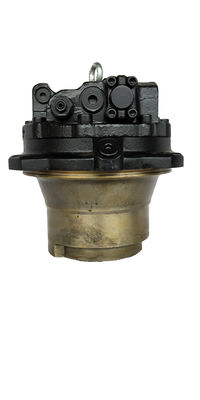

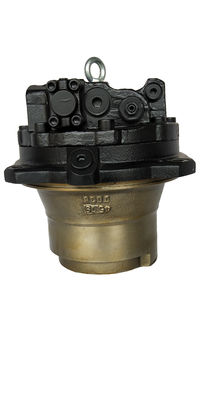

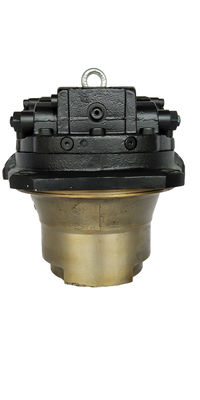

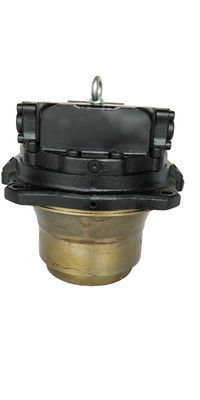

Belparts ZX450-3 ZX470-3 ZX500-3 ZX520-3 Travel Motor
|
| Place of Origin: |
China(Mainland)
|
| Model: |
ZX450-3 ZX470-3 ZX500-3
|
| Part number: |
4637796
|
| MOQ: |
1 PCS
|
| Payment term: |
T/T & Alibaba Trade Assurance & Paypal
|
| Delivery time: |
Within 2 days after receiving the payment
|
| Packing: | Standard exporting packing or as required |
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 4637796 | [1] | MOTOR;OIL (2/2) | This PART NO. consists of all parts shown in MOTOR;OIL(1/2) to (2/2). | |
| 2. | +++++++ | [1] | PLATE ASS'Y | |
| 2･1. | +++++++ | [1] | PLATE | |
| 2･2. | +++++++ | [1] | SPOOL ASS'Y | |
| 2･2･1. | +++++++ | [1] | SPOOL | |
| 2･2･2. | +++++++ | [2] | VALVE;CHECK | |
| 2･2･3. | +++++++ | [2] | SPRING | |
| 2･2･4. | +++++++ | [2] | PLUG | |
| 2･2･5. | +++++++ | [2] | O-RING | |
| 2･3. | 0163601 | [2] | SEAT;SPRING | |
| 2･4. | 0420002 | [2] | SPRING | |
| 2･5. | 0809601 | [2] | SEAT;SPRING | |
| 2･6. | 0979101 | [2] | CAP;ASS'Y | |
| 2･6･1. | +++++++ | [1] | CAP | |
| 2･6･5. | +++++++ | [1] | O-RING | |
| 2･6･6. | +++++++ | [4] | BOLT;SOCKET | |
| 2･7. | 0806602 | [2] | VALVE;RELIEF | |
| 2･7･1. | +++++++ | [1] | SEAT | |
| 2･7･2. | +++++++ | [1] | HOUSING;RELIEF | |
| 2･7･3. | +++++++ | [1] | POPPET | |
| 2･7･4. | +++++++ | [1] | SEAT;SPRING | |
| 2･7･5. | +++++++ | [1] | SPRING | |
| 2･7･6. | +++++++ | [1] | PLUG | |
| 2･7･7. | +++++++ | [1] | GUIDE;SPRING | |
| 2･7･8. | +++++++ | [1] | SCREW;SET | |
| 2･7･9. | +++++++ | [1] | NUT;LOCK | |
| 2･7･10. | +++++++ | [1] | PISTON | |
| 2･7･11. | +++++++ | [1] | O-RING | |
| 2･7･12. | +++++++ | [1] | O-RING | |
| 2･7･13. | +++++++ | [1] | O-RING | |
| 2･7･14. | +++++++ | [1] | O-RING | |
| 2･7･15. | +++++++ | [1] | RING;BACK-UP | |
| 2･7･16. | +++++++ | [2] | RING;BACK-UP | |
| 2･7･17. | +++++++ | [2] | RING;BACK-UP | |
| 2･9. | +++++++ | [1] | SPOOL | |
| 2･11. | +++++++ | [2] | ORIFICE | |
| 2･13. | 0820203 | [1] | SPRING | |
| 2･14. | 0671002 | [1] | PLUG | |
| 2･15. | 4506418 | [2] | O-RING | |
| 2･17. | 0820204 | [1] | PLUG | |
| 2･19. | 0352304 | [2] | VALVE;CHECK | |
| 2･20. | 0352305 | [2] | SPRING | |
| 2･21. | 0352306 | [2] | PLUG | |
| 2･22. | 4506429 | [2] | O-RING | |
| 2･23. | +++++++ | [2] | ORIFICE | |
| 2･24. | +++++++ | [1] | ORIFICE | |
| 2･25. | 0436608 | [6] | PLUG | |
| 2･26. | 957366 | [6] | O-RING | |
| 2･27. | +++++++ | [1] | PLUG | |
| 2･28. | +++++++ | [7] | PLUG | |
| 16. | 0682803 | [1] | PIN | |
| 26. | 0809604 | [10] | SPRING | |
| 27. | 0251319 | [4] | PIN | |
| 33. | 0168008 | [9] | BOLT;SOCKET | |
| 51. | +++++++ | [1] | NAME-PLATE | |
| 52. | +++++++ | [2] | SCREW;DRIVE | |
| 400. | 0979103 | [1] | PLATE;ASS'Y | |
| +++++++ | [1] | KIT;SEAL | NOTE) The KIT;SEAL of this system is indied at ｢MOTOR;OIL(1/2)｣. |
We can supply you all kinds of excavator spare parts as following
| Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc. |
| Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion ,coil adjuster,rubber track,etc. |
| Cab parts: operator’s cab assy, wiring harness, monitor, controller, seat, door etc. |
Strong part number database.
If you can provide the right model and part number, we can supply the right product.
Professional and experienced salesperson.
Our founder has been into this field for more than 6 years, with rich experiences.
Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
Good management system.
No matter how big or small order, as long as customers place the order, we will provide exporting services free of charge.
Good service attitude.
As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.
FAQ:
| Q: When will ship my order? |
| A:Once we get confirmation of payment, we will try our best to ship order within 24 hours. |
| Q: Which shipping term you can supply? |
| A:By sea, air or by express ( DHL, Fedex, TNT, UPS, EMS) |
| Q: How long does it take to my address? |
| A:The Normal delivery time is 2-7 days, depending on which country you are in. |
| Q: How can I trace my order? |
| A:We will send you the tracking number by email. |
| Q: If I am not satisfied with the products, can I returns goods? |
| A:Yes, we offer exchange and repair service under warranty. Please contact us before you |
