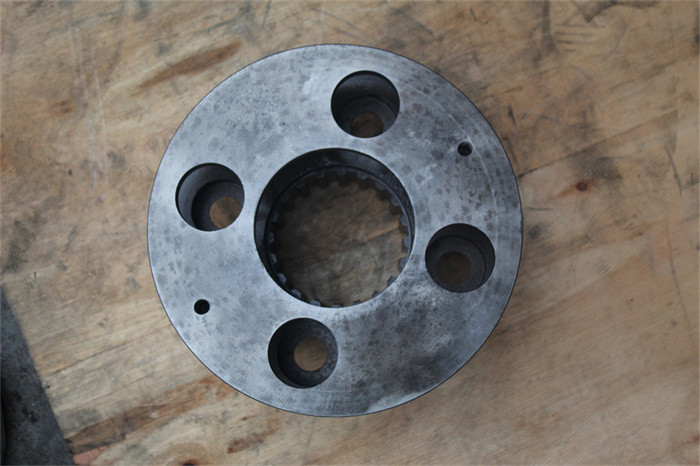

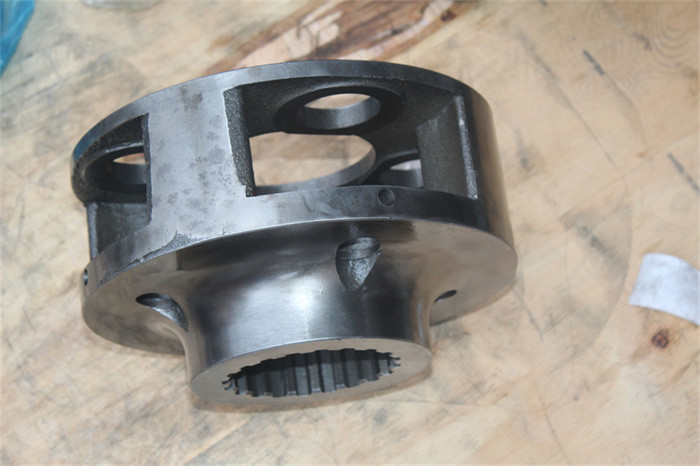

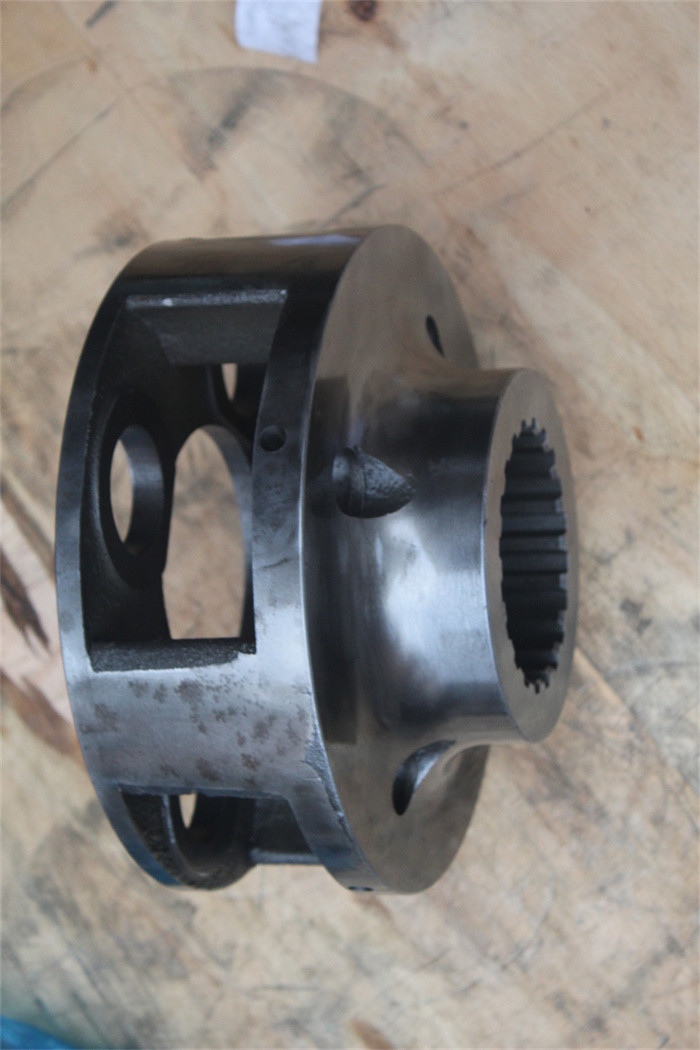

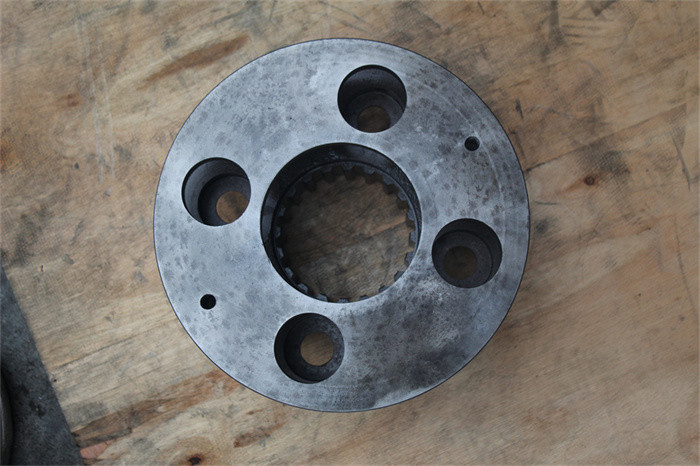

Swing Gearbox 1st planetary gear parts R330LC-9S R320 XKAH-01241 1st Carrier
Description
|
Brand: |
Belparts
|
|
Name: |
Swing gearbox 1st carrier
|
|
Model: |
R320LC-9 R330LC-9A R330LC-9S R330LC-9SH
|
|
part number
|
XKAH-01241 |
|
Delivery: |
By sea,By air,By express
|
|
After-sales Service Provided: |
Online support
|
|
Hight light: |
Hyundai planetary gear
|
|
Warranty: |
3 months
|
Drawing of the pump
Parts of group swing reduction gear
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| *. | @ | [1] | SWING MOTOR ASSY | SEE 4100 |
| *-2. | XKAH-01597 | [1] | SWING REDUCTION GEAR | |
| 201. | XKAH-01425 | [1] | CASING | |
| 202. | XKAH-01426 | [1] | SHAFT-PINION | |
| 203. | XKAH-01240 | [1] | PLATE-PRELOAD | |
| 204. | XKAH-01241 | [1] | CARRIER 2 | |
| 205. | XKAH-01242 | [4] | GEAR-PLANET 2 | |
| 206. | XKAH-01243 | [4] | PIN | |
| 207. | XKAH-01244 | [4] | BUSHING | |
| 208. | XKAH-01245 | [1] | CARRIER 1 | |
| 209. | XKAH-01246 | [3] | GEAR-PLANET 1 | |
| 210. | XKAH-01247 | [6] | WASHER-THRUST 1 | |
| 211. | XKAH-01427 | [1] | GEAR-SUN 2 | |
| 212. | XKAH-01249 | [1] | GEAR-SUN 1 | |
| 213. | XKAH-01428 | [1] | GEAR-RING | |
| 214. | XKAH-01251 | [1] | COVER | |
| 215. | XKAH-01252 | [8] | WASHER-THRUST 2 | |
| 216. | XKAH-01253 | [1] | PLATE-THRUST | |
| 217. | XKAH-01254 | [1] | WASHER-THRUST | |
| K218. | XKAH-01255 | [1] | SEAL-OIL | |
| 219. | XKAH-01256 | [8] | BOLT-SOCKET | |
| 220. | XKAH-01257 | [1] | ROLLER BEARING | |
| 221. | XKAH-01429 | [1] | ROLLER BEARING | |
| 222. | XKAH-01259 | [4] | PIN-SPRING | |
| 223. | XKAH-01260 | [12] | BOLT-SOCKET | |
| 224. | XKAH-01261 | [1] | BOLT-HEX | |
| 225. | XKAH-01003 | [3] | CAGE-NEEDLE | |
| 226. | XKAH-01262 | [3] | RING-INNER | |
| 227. | XKAH-01263 | [1] | BOLT-SOCKET | |
| 228. | XKAH-00977 | [2] | PLUG | |
| 229. | XKAH-00026 | [1] | RING-SNAP | |
| 230. | XKAH-01264 | [6] | MAGNET | |
| 231. | XKAH-01216 | [3] | SCREW | |
| 232. | XKAH-01430 | [1] | CONECTOR | |
| 233. | XKAH-01431 | [1] | HOSE ASSY | |
| 234. | XKAH-01432 | [1] | VALVE-DRAIN | |
| 235. | XKAH-01433 | [3] | PIN | |
| 236. | XKAH-01266 | [1] | LEVEL GAUGE ASSY | |
| 237. | XKAH-01267 | [1] | AIR BREATHER ASSY | |
| N. | XKAH-01424 | [1] | SEAL KIT | SEE ILLUST |
