Komatsu excavator parts PC200-8 travel motor 20Y-27-00500 20Y-27-00501 final drive assy
Supply Ability
Supply Ability:500 Piece/Pieces per Month
Packaging Details:Standard shipping package
Port: HUANGPU
Lead Time :
Quantity(Pieces) | 1 - 1 | >1 |
Est. Time(days) | 2 | To be negotiated |
Komatsu excavator parts PC200-8 travel motor 20Y-27-00500 20Y-27-00501 final drive assy
Product name | Belparts excavator parts PC200-8 travel motor 20Y-27-00500 final drive ass'y |
Place of Origin: | China(mainland) |
Model: | PC200-8 |
Part number: | 20Y-27-00501 |
MOQ: | 1 PCS |
Payment term: | T/T & Western Union.... |
Delivery time: | Within 2 days after receiving the payment |
Packing: | Standard exporting packing or as required |

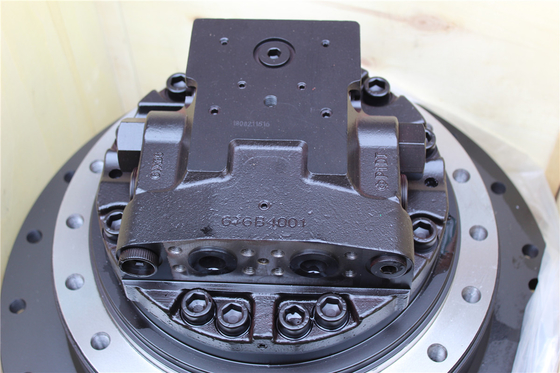

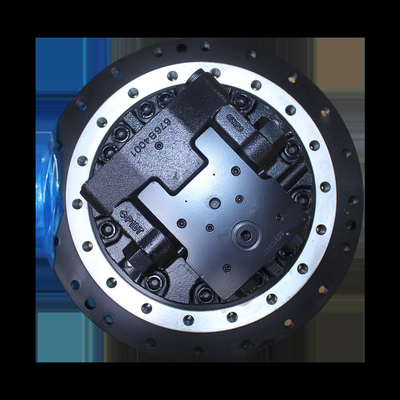

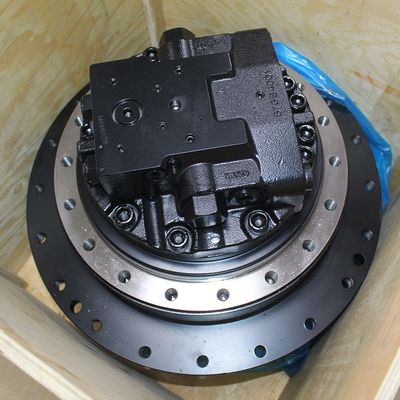

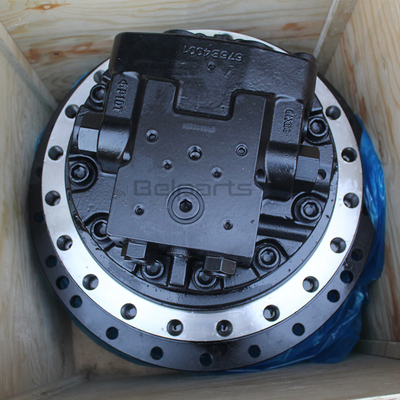

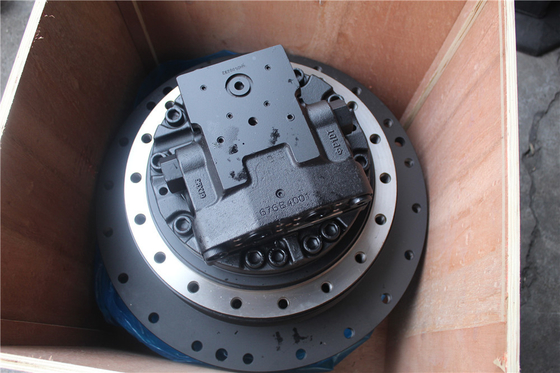

Komatsu excavator parts PC200-8 travel motor Picture
PC200-8 S/N 350001-UP EXCAVATORS
Pos. | Part No | Qty | Parts name | Comments |
---|---|---|---|---|
20Y-27-00500 | [2] | Final Drive Assembly Komatsu OEM | 370 kg. | |
["SN: 350001-350198"] analogs:["20Y2700501"] |$0. | ||||
20Y-27-00110 | [1] | Floating Seal Assembly Komatsu OEM | 2.65 kg. | |
["SN: 350001-350198"] |$1. | ||||
3. | 20Y-27-41140 | [1] | Hub Komatsu | 113.8 kg. |
["SN: 350001-350198"] | ||||
4. | 20Y-27-41260 | [2] | Bearing Komatsu | 4.5 kg. |
["SN: 350001-350198"] | ||||
5. | 20Y-27-41190 | [1] | Nut, Lock Komatsu | 3 kg. |
["SN: 350001-350198"] | ||||
6. | 20Y-27-41180 | [1] | Lock Komatsu | 0.04 kg. |
["SN: 350001-350198"] | ||||
7. | 01010-81020 | [2] | Bolt Komatsu | 0.161 kg. |
["SN: 350001-350198"] analogs:["801014093", "0101051020", "801015108"] | ||||
8. | 20Y-27-41150 | [1] | Carrier Komatsu | 16.1 kg. |
["SN: 350001-350198"] | ||||
9. | 20Y-27-41130 | [4] | Gear Komatsu | 2.6 kg. |
["SN: 350001-350198"] | ||||
10. | 20Y-27-41250 | [4] | Bearing Komatsu | 1.5 kg. |
["SN: 350001-350198"] | ||||
11. | 20Y-27-41270 | [8] | Washer, Thrust Komatsu | 0.03 kg. |
["SN: 350001-350198"] | ||||
12. | 20Y-27-41170 | [4] | Pin Komatsu | 2.1 kg. |
["SN: 350001-350198"] | ||||
13. | 20Y-27-21290 | [4] | Pin Komatsu OEM | 0.03 kg. |
["SN: 350001-350198"] | ||||
14. | 20Y-27-13310 | [1] | Washer, Thrust Komatsu China | 0.08 kg. |
["SN: 350001-350198"] | ||||
15. | 20Y-27-41120 | [1] | Gear Komatsu | 1.45 kg. |
["SN: 350001-350198"] | ||||
16. | 20Y-27-22240 | [1] | Washer, Thrust Komatsu China | 0.03 kg. |
["SN: 350001-350198"] | ||||
17. | 20Y-27-31111 | [1] | Carrier Komatsu | 5.78 kg. |
["SN: 350001-350198"] | ||||
18. | 20Y-27-22120 | [3] | Gear Komatsu China | 2.5 kg. |
["SN: 350001-350198"] | ||||
19. | 20Y-27-22210 | [3] | Bearing Komatsu China | 0.12 kg. |
["SN: 350001-350198"] analogs:["20Y2721260"] | ||||
20. | 20Y-27-21240 | [6] | Washer, Thrust Komatsu China | 0.02 kg. |
["SN: 350001-350198"] | ||||
21. | 20Y-27-21220 | [3] | Pin Komatsu China | 0.411 kg. |
["SN: 350001-350198"] | ||||
22. | 20Y-27-21280 | [3] | Pin Komatsu China | 0.01 kg. |
["SN: 350001-350198"] | ||||
23. | 20Y-27-41110 | [1] | Shaft Komatsu | 1.4 kg. |
["SN: 350001-350198"] | ||||
24. | 20Y-27-21310 | [1] | Washer Komatsu China | 0.17 kg. |
["SN: 350001-350198"] | ||||
25. | 20Y-27-41160 | [1] | Cover Komatsu | 14.95 kg. |
["SN: 350001-350198"] | ||||
26. | 04260-01587 | [1] | Ball, Steel Komatsu | 0.018 kg. |
["SN: 350001-350198"] | ||||
27. | 01010-81240 | [12] | Bolt Komatsu | 0.052 kg. |
["SN: 350001-350198"] analogs:["801015573", "0101051240"] | ||||
28. | 01643-31232 | [12] | Washer Komatsu | 0.027 kg. |
["SN: 350001-350198"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
29. | 07049-01012 | [2] | Plug Komatsu | 0.001 kg. |
["SN: 350001-350198"] | ||||
30. | 20Y-27-31190 | [3] | Plug Komatsu | 0.07 kg. |
["SN: 350001-350198"] | ||||
31. | 07002-12434 | [3] | O-ring Komatsu China | 0.01 kg. |
["SN: 350001-350198"] analogs:["0700202434", "0700213434"] | ||||
32. | 20Y-27-11582 | [1] | Sprocket Komatsu China | 36.2 kg. |
["SN: 350001-350198"] analogs:["20Y2711581", "20Y27K1110", "20Y2777110"] | ||||
33. | 20Y-27-11561 | [20] | Bolt Komatsu China | 0.14 kg. |
["SN: 350001-350198"] | ||||
34. | 01010-61660 | [36] | Bolt Komatsu | 0.127 kg. |
["SN: 350001-350198"] analogs:["0101031660", "0101081660"] | ||||
35. | 01643-31645 | [36] | Washer Komatsu | 0.072 kg. |
["SN: 350001-350198"] analogs:["802170005", "0164301645"] | ||||
36. | 20Y-30-21191 | [2] | Cover Komatsu | 12.25 kg. |
["SN: 350001-350198"] | ||||
37. | 01010-81230 | [8] | Bolt Komatsu | 0.043 kg. |
["SN: 350001-350198"] analogs:["0101051230", "01010B1230"] | ||||
39. | 708-8F-00250 | [-1] | Motor Assembly Komatsu | 93 kg. |
["SN: UP"] |
Our Services
Quick delivery and competitive price. |
The larger quantity you order, the better price and faster delivery we can supply. |
We have a professional team to offer professional service for you. |
We can offer used and new, oem, good quality, made in china parts to you. |
The parts will give weight, price when quotation. |
7/24 hours oversea service. |
FAQ
Q: How can I do if there is something wrong with the parts ? |
A: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide the old photo for us. After it is confirmed, pls return to us , we will offer the correct item. |
Q: I know only the excavator model, but can not offer parts No., what should I do ? |
A: If possible, you can send us the old photo, nameplate or the size for reference. |
