Excavator Engine Cranking Motor , R320LC-7 R320-7 31N9-40024 Hydraulic Motor

1PCS
MOQ
Negotiated price
Price
Excavator Engine Cranking Motor , R320LC-7 R320-7 31N9-40024 Hydraulic Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangdong, China (Mainland)
Model Number: 31N9-40024
Warranty: 6 Months, 6 Months
Product Name: R320LC-7 R320-7 31N9-40024 Hydraulic Motor
MOQ: 1 Piece
Feature: Long Life
High Light:

hydraulic final drive

,

excavator drive motor

Basic Infomation
Brand Name: Belparts
Certifiion: OEM
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 2-5 days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 500 pieces per month
Product Description

Belparts excavator engine cranking motor R320LC-7 R320-7 31N9-40024 hydraulic motor

Description of R320LC-7 R320-7 31N9-40024 hydraulic motor

 1. After-sales Service                       Online support

2. Machine Model                             R320LC-7 R320-7 31N9-40024

3. Appliion                                    Hyundai Excavator

4. Type                                              TRAVEL UNIT 31N9-40024

5. Delivery time                                 1-3 Days

6. Excavator                                      7-SERIES CRAWLER EXCAVATOR



Excavator Engine Cranking Motor , R320LC-7 R320-7 31N9-40024 Hydraulic Motor 0

Excavator Engine Cranking Motor , R320LC-7 R320-7 31N9-40024 Hydraulic Motor 1



Supply Ability

Supply Ability:                         1000 Piece/Pieces per Week



Packaging & Delivery

Packaging Details                   First layer is packed in plastic and the second in wooden s



Port                                         HuangPu



Lead Time :

Quantity(Pieces) 1 - 1 >1
Est. Time(days) 1 To be negotiated

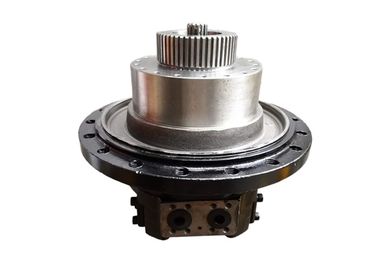

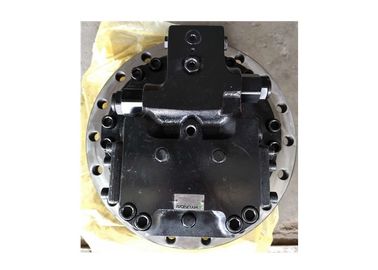

Product display of R320LC-7 R320-7 31N9-40024 hydraulic motor

Excavator Engine Cranking Motor , R320LC-7 R320-7 31N9-40024 Hydraulic Motor 2



R320LC-7 TRAVEL MOTOR(#0456-) EPC Hyundai

Excavator Engine Cranking Motor , R320LC-7 R320-7 31N9-40024 Hydraulic Motor 3

Parts on group TRAVEL MOTOR(#0456-):

Pos. Part No Qty Parts name Comments
*. 31N9-40020BG [1] TRACK MOTOR ASSY
*. 31N9-40021BG [1] TRACK MOTOR ASSY
*. 31N9-40022 [1] TRACK MOTOR ASSY
*. 31N9-40023 [1] TRACK MOTOR ASSY
*. 31N9-40024 [1] TRAVEL UNIT
*-1. 31N9-40030BG [1] TRAVEL MOTOR
*-1. 31N9-40031BG [1] TRAVEL MOTOR
*-1. 31N9-40032 [1] TRAVEL MOTOR
*-1. 31N9-40033 [1] TRAVEL MOTOR
1. XKAY-00197 [1] CASING-SHAFT
1. XKAY-00962 [1] CASING-SHAFT
1. XKAY-02052 [1] CASING-SHAFT
2. XKAY-00198 [12] PLUG
3. XKAY-00199 [1] SCREW-ORIFICE
3. XKAY-00199 [2] SCREW-ORIFICE
4. XKAY-00200 [1] SCREW-ORIFICE
5. XKAY-00201 [2] PIN-SUPPORT
6. XKAY-00202 [4] PIN-BRAKE
7. XKAY-00203 [1] STOPPER(S)
8. XKAY-00204 [4] O-RING
9. XKAY-00205 [3] RING-BACK UP
10. XKAY-00206 [1] PISTON-SWASH
9. XKAY-00205 [3] RING-BACK UP
11. XKAY-00207 [1] SHAFT
10. XKAY-00206 [1] PISTON-SWASH
12. XKAY-00208 [1] SPACER-BEARING
11. XKAY-00207 [1] SHAFT
12. XKAY-00208 [1] SPACER-BEARING
13. XKAY-00209 [1] BEARING-ROLLER
14. XKAY-00210 [1] RING-STOP
*. XKAY-00211 [1] SUPPORT KIT
N15. XKAY-00212 [1] SUPPORT
14. XKAY-00210 [1] RING-STOP
N16. XKAY-00213 [1] PLATE-SWASH
17. XKAY-00214 [1] PISTON-SWASH
*. XKAY-00211 [1] SUPPORT KIT
18. XKAY-00215 [1] STOPPER(L)
N15. XKAY-00212 [1] SUPPORT
N16. XKAY-00213 [1] PLATE-SWASH
17. XKAY-00214 [1] PISTON-SWASH
18. XKAY-00215 [1] STOPPER(L)
19. XKAY-00216 [1] O-RING
20. XKAY-00217 [2] RING-BACK UP
*. XKAY-00218 [1] ROTARY KIT
*-1. XKAY-00219 [1] CYLINDER BLOCK KIT
20. XKAY-00217 [2] RING-BACK UP
N21. XKAY-00220 [1] CYLINDER BLOCK
*. XKAY-00218 [1] ROTARY KIT
*. XKAY-01510 [1] ROTARY KIT
*. XKAY-00218 [1] ROTARY KIT
N22. XKAY-00221 [9] SPRING-CYLINDER
*-1. XKAY-00219 [1] CYLINDER BLOCK KIT
*-1. XKAY-01509 [1] CYLINDER BLOCK KIT
*-1. XKAY-00219 [1] CYLINDER BLOCK KIT
N21. XKAY-00220 [1] BLOCK-CYLINDER
N21. XKAY-01504 [1] BLOCK-CYLINDER
N21. XKAY-00220 [1] BLOCK-CYLINDER
22. XKAY-00221 [9] SPRING-CYLINDER
23. XKAY-00222 [1] SPACER
N67. XKAY-00268 [1] PLATE-VALVE
N67. XKAY-00972 [1] PLATE-VALVE
*-2. XKAY-00223 [1] RETAINER KIT
N24. XKAY-00224 [1] GUIDE-BALL
N25. XKAY-00225 [1] PLATE-SET
*-3. XKAY-00226 [1] PISTON KIT
67. XKAY-00268 [1] PLATE-VALVE
N26. XKAY-00227 [9] PISTON & SHOE ASSY
67. XKAY-01505 [1] PLATE-VALVE
27. XKAY-00228 [2] PLATE-FRICTION
*-2. XKAY-00223 [1] RETAINER KIT
28. XKAY-00229 [1] PLATE-SEPARATOR
24. XKAY-00224 [1] GUIDE-BALL
25. XKAY-00225 [1] SET-PLATE
*-3. XKAY-00226 [1] PISTON KIT
N26. XKAY-00227 [9] PISTON & SHOE ASSY
27. XKAY-00228 [2] PLATE-FRICTION
28. XKAY-00229 [1] PLATE-SEPARATOR
29. XKAY-00230 [1] BRAKE-PISTON
29. XKAY-00973 [1] BRAKE-PISTON
30. XKAY-00231 [1] RING-PISTON 252
29. XKAY-00230 [1] RING-PISTON
31. XKAY-00232 [1] RING-PISTON 278
30. XKAY-00231 [1] RING-PISTON 252
33. XKAY-00234 [1] CASING-VALVE
31. XKAY-00232 [1] RING-PISTON 278
34. XKAY-00235 [1] BEARING-NEEDLE
32. XKAY-00233 [10] SPRING-BRAKE
33. XKAY-01416 [1] CASING-VALVE
33. XKAY-01506 [1] CASING-VALVE
34. XKAY-00235 [1] BEARING-NEEDLE
35. XKAY-00236 [1] O-RING
36. XKAY-00237 [2] PIN-VALVE PLATE
*. XKAY-00238 [1] C/BLC VLV SPOOL KIT
N37. XKAY-00239 [1] SPOOL-C/B/VALVE
36. XKAY-00237 [2] PIN-VALVE PLATE
N38. XKAY-00240 [2] SCREW-ORIFICE
39. XKAY-00241 [2] DAMPING CHECK ASSY
*. XKAY-00238 [1] SPOOL KIT-C/BLC VALVE
40. XKAY-00242 [2] SPRING-C/B/VALVE
37. XKAY-00239 [1] SPOOL-C/BLC VALVE
38. XKAY-00240 [2] SCREW-ORIFICE
39. XKAY-00241 [2] DAMPING CHECK ASSY
40. XKAY-00242 [2] SPRING-C/BLC VALVE
41. XKAY-00247 [2] O-RING
42. XKAY-00244 [2] PLUNGER-C/BLC VALVE
43. XKAY-00245 [2] SPRING-CHECK
44. XKAY-00246 [2] STOPPER-CHECK
45. XKAY-00247 [4] O-RING
46. XKAY-00248 [4] RING-BACK UP
47. XKAY-00249 [1] CAP-C/B/VALVE(R)
48. XKAY-00250 [1] CAP-C/B/VALVE(L)
49. XKAY-00136 [8] BOLT-SOCKET
46. XKAY-00248 [4] RING-BACK UP
51. XKAY-00252 [2] SEAT
52. XKAY-00253 [2] BALL-STEEL
47. XKAY-00249 [1] CAP-C/BLC VALVE(R)
53. XKAY-00254 [2] STOPPER
48. XKAY-00250 [1] CAP-C/BLC VALVE(L)
54. XKAY-00255 [7] PLUG-HP
49. XKAY-00136 [8] BOLT-SOCKET
50. XKAY-00251 [4] BOLT-SOCKET
51. XKAY-00252 [2] SEAT
52. XKAY-00253 [2] BALL-STEEL
53. XKAY-00254 [2] STOPPER
54. XKAY-00255 [7] PLUG-HP
55. XKAY-00256 [7] O-RING
55. XKAY-00256 [7] O-RING
56. XKAY-00257 [2] PLUG-HP
57. XKAY-00672 [2] RELIEF VALVE ASSY
58. XKAY-00259 [2] O-RING
59. XKAY-00260 [2] RING-BACK UP
59. XKAY-00260 [2] RING-BACK UP
60. XKAY-00261 [1] ROD-SWASH
60. XKAY-00261 [1] ROD-SWASH
61. XKAY-00262 [1] O-RING
62. XKAY-00263 [1] SCREW-LOCK
63. XKAY-00279 [2] NUT-HEX
62. XKAY-00263 [1] SCREW-LOCK
64. XKAY-00265 [1] SPOOL-SWASH
63. XKAY-00279 [2] NUT-HEX
65. XKAY-00266 [1] PLUG
64. XKAY-00265 [1] SPOOL-SWASH
65. XKAY-00266 [1] PLUG
66. XKAY-00267 [1] O-RING
68. XKAY-00269 [1] SPRING-SWASH
69. XKAY-00270 [3] O-RING
70. XKAY-00271 [8] BOLT-SOCKET
71. XKAY-00272 [4] BOLT-SOCKET
72. XKAY-00273 [1] SCREW-LOCK
70. XKAY-00271 [8] BOLT-WRENCH
73. XKAY-00274 [1] SEAL-OIL
74. XKAY-00275 [1] RING-LOCK
71. XKAY-00272 [4] BOLT-SOCKET
K. XKAY-00278 [1] SEAL KIT SEE ILLUST
72. XKAY-00273 [1] SCREW-LOCK
73. XKAY-00274 [1] SEAL-OIL
74. XKAY-00275 [1] RING-LOCK
K. XKAY-00278 [1] SEAL KIT SEE ILLUST
*-2. @ [1] T/REDUCTION GEAR
N. @ [1] NOT SUPPLIED PARTS




Warranty
1. Warranty Period:
Supply 3 months warranty for the products from the date of arrival. Customer shall check the items according to the order list after arrival.Contact with us and offer any possible datas of the problem items.
2. You need to pay for the replacement charge for following condition:
* Wrong Order from customer.
* Any force majeure causes the damage .
* Error installation.
* The parts work overtime and overload.
* Lost by any condition.
* Human element destroyed.
* Corrode with rust during stock and running.
* Warranty Expired.
3. Others
These kinds of products are very easy to be rust away, please wrap and store them well.



FAQ

Q1: Could you design products at my demand ?

A: We will do our best to manufacture it according to your request .



Q2: How can you promise the quality ?

A: Usually , One year warranty against B / L date . If you meet with quality problem , we promise to be responsible for it.



Q3: If we can not find what we want on your website , what should we do ?

A: You can email us the descriptions and pictures of the products you need , We will check whether we can have it .



Q4: Can we purchase some of your products for quality testing ?

A: Yes , of course , we are confident for our products . Welcome customers to buy for quality testing .



Q5: What is the lead time ?

A: For swing gearbox , normally 3 days , 3 days and lead time is calculated from the day we receive your deposit .
Exact time is determined by factory schedule .
