Excavator Main Pump ZX210-3 K3V112DT K3V63 K3V140 K3V200 K3V280 Electronic Injection Hydraulic Pump K3V112
The main pump of ZX210-3 K3v112DT K3V63 K3V140 K3V200 K3V280 is an indispensable part of an excavator, with a beautiful color, orange, and a good value-for-performance product that allows customers to choose more
You need to provide us with reference data for hydraulic pumps.
1. Old pictures and iron plates
2. Model of excavator and pump
What if you just need hydraulic fittings?
1. Please send us pictures of pump number two
2. Please send us the size of the piston
Product parameter
1. part name : ZX210-3Electronic Injection Hydraulic Pump
2. Model: K3v112
3. MOQ: 1PCS
4. Payment term: T/T&Western union&Paypal
5. Delivery time : Within 2 days after receiving the payment
6. Packing: Standard exporting packing or as required
Supply Ability
Supply Ability: 500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details: Plastic package protect at first,then wooden package.
Port: Huangpu
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 9262319 | [1] | PUMP DEVICE | I 9262320 <for assembly of machine> | |
| 9262320 | [1] | PUMP DEVICE | <for transportation> | |
| 01. | 1033158 | [1] | CASING;GEAR | |
| 05. | 3063840 | [1] | GEAR;PILOT | |
| 06. | 3055594 | [1] | SHAFT;GEAR | |
| 10. | 958740 | [2] | BRG.;BALL | |
| 11. | 962002 | [1] | RING;RETAINING | |
| 12. | 991725 | [1] | RING;RETAINING | |
| 34. | 4099290 | [2] | PIN;SPRING | |
| 43. | 4310055 | [1] | SEAL;OIL | |
| 44. | 991725 | [1] | RING;RETAINING | |
| 61. | 4438059 | [1] | GAUGE;LEVEL | |
| 62. | 9743977 | [1] | PIPE;GAUGE | |
| 63. | 9742779 | [1] | PACKING | |
| 64. | M340816 | [2] | BOLT;SOCKET | |
| 83. | 94-0649 | [1] | ELBOW | |
| 84. | 4645330 | [1] | PLUG | |
| 86. | 4234782 | [1] | PLUG | |
| 87. | 4092534 | [1] | PLUG | |
| 87A. | 4509180 | [1] | O-RING | |
| 103. | +++++++ | [1] | PUMP;UNIT | |
| 112. | +++++++ | [1] | NAME-PLATE | |
| 113. | M492564 | [2] | SCREW;DRIVE | |
| 117. | +++++++ | [1] | PUMP;REGULATOR (1) | I 9266180 <for assembly of machine> |
| 117. | 9266180 | [1] | PUMP;REGULATOR (1) | <for transportation> |
| 118. | +++++++ | [1] | PUMP;REGULATOR (2) | I 9266181 <for assembly of machine> |
| 118. | 9266181 | [1] | PUMP;REGULATOR (2) | <for transportation> |
| 119. | 9218005 | [1] | PUMP;GEAR | |
| 121. | M341030 | [2] | BOLT;SOCKET | |
| 122. | 984054 | [2] | WASHER;SPRING | |
| 123. | 4114402 | [2] | WASHER | |
| 127. | 4631943 | [1] | PIPE | |
| 130. | 4293950 | [2] | ELBOW;S | |
| 130A. | 957366 | [1] | O-RING | |
| 133. | 4641504 | [1] | COUPLING | T 4671573 |
| 2054392 | ||||
| 133. | 4671573 | [1] | COUPLING | H04992-<BR>H53326- |
| 133A. | 4463992 | [1] | HUB | T 4687331 |
| 2054392 | ||||
| 133A. | 4687331 | [1] | HUB | H04992-<BR>H53326- |
| 133B. | 4334899 | [2] | SCREW;SET | |
| 133C. | 4101345 | [4] | PIN;SPRING | |
| 133D. | 4463993 | [4] | INSERT | |
| 133E. | 4334894 | [4] | BOLT;SOCKET | |
| 133F. | 4654760 | [1] | ELEMENT | |
| 136. | 8058352 | [1] | PACKING | |
| 137. | J901645 | [6] | BOLT | |
| 138. | A590916 | [6] | WASHER;SPRING | |
| 200. | 4451036 | [1] | KIT;SEAL |

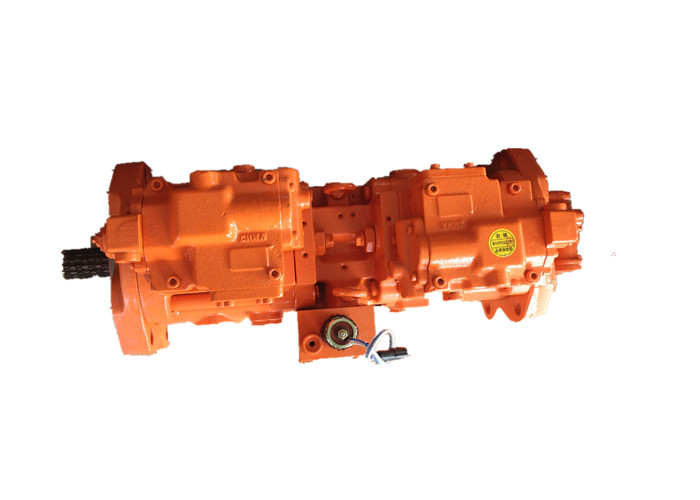

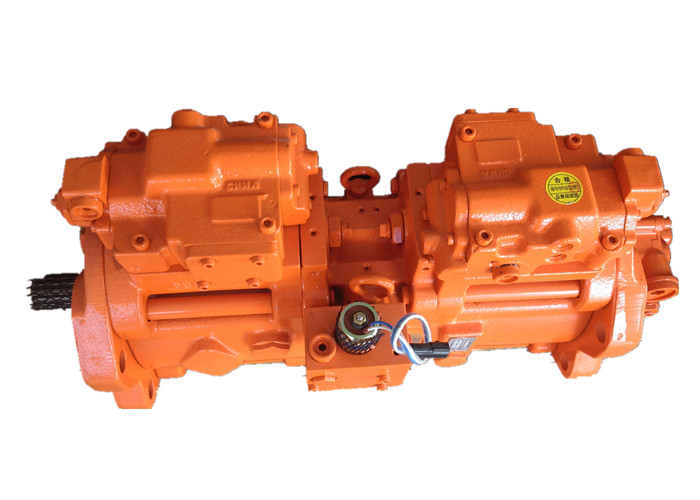

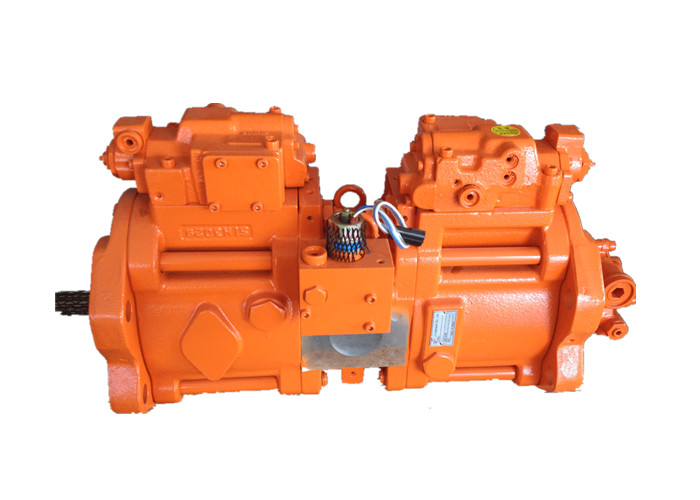

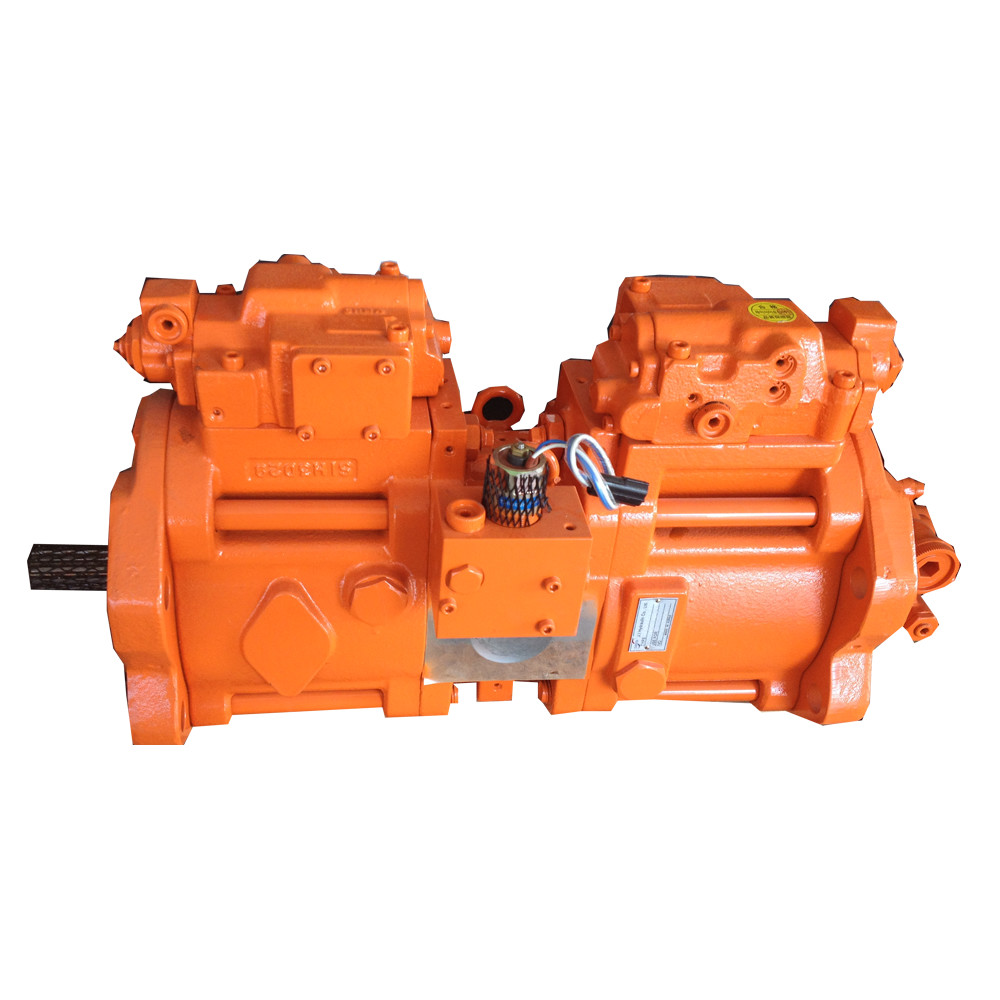

Detailed picture
Our advantage.
1. Strict management company system has good service attitude and good praise for quality
2. With rich expertise and seven years of technology in this industry, we have a lot of experience
3. It's a good service to the customer as long as you have questions about any product, we will try to solve the problem for you at the first time, but the customer's request is completely reasonable. We will try to satisfy the customer as far as possible.
4. Each order will comply with the customer's delivery time
5. Before we pack it for you, we will check the part number and picture of the product in detail, so that the customer can get the high quality and accurate product.
FAQ
1. How long is the wattanted time ?
For natural broken,3 Months ,guarantee genuine parts
2. What's payment you can accept
BY T/T,WESTERN UNION,PAYPAL
3. What's the shipping way
By courier ,air ,or ship
4. Is small order available
Yes small order can accept
5. What 's package ?Can you supply the package according my requirement
Export wooden carton ,or we can customise it according to the requirement according to the customer's requirment
