Belparts hydraulic excavator final drive parts EC460B travel gearbox
EC460B,Travel gearbox is an excavator part, product part number 11515-15000, walking reducer can be by sea, air or according to your requirements. We have stock and the minimum order for Travel gearbox is 1.
Description of EC460B Travel Gearbox
1.Production address: China
2. Name or description of a commodity: Travel Gearbox
3. Type: EC460B
4. Minimum Order Quantity: 1Pieces
5. Payment Method: T/T & Western Union & Paypal & Visa & MasterCard & e-Checking & Boleto
6. Shipping Time: Within 2 days after receiving The payment
7. Packaging: First layer is packed in plastic and the second in wooden s
Supply Ability
Supply Ability: 500 Piece/Pieces per Week
Packaging & Delivery
Packaging Details: First layer is packed in plastic and the second in wooden s
Port: HuangPu
Lead Time :
| Quantity(Pieces) | 1 - 1 | >1 |
| Est. Time(days) | 1 | To be negotiated |

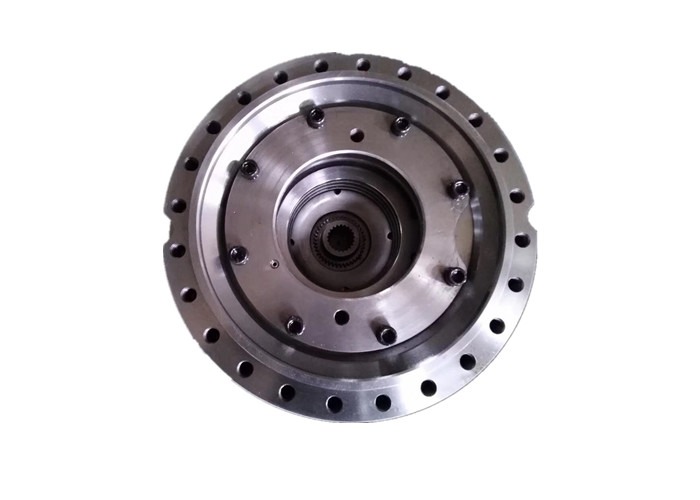

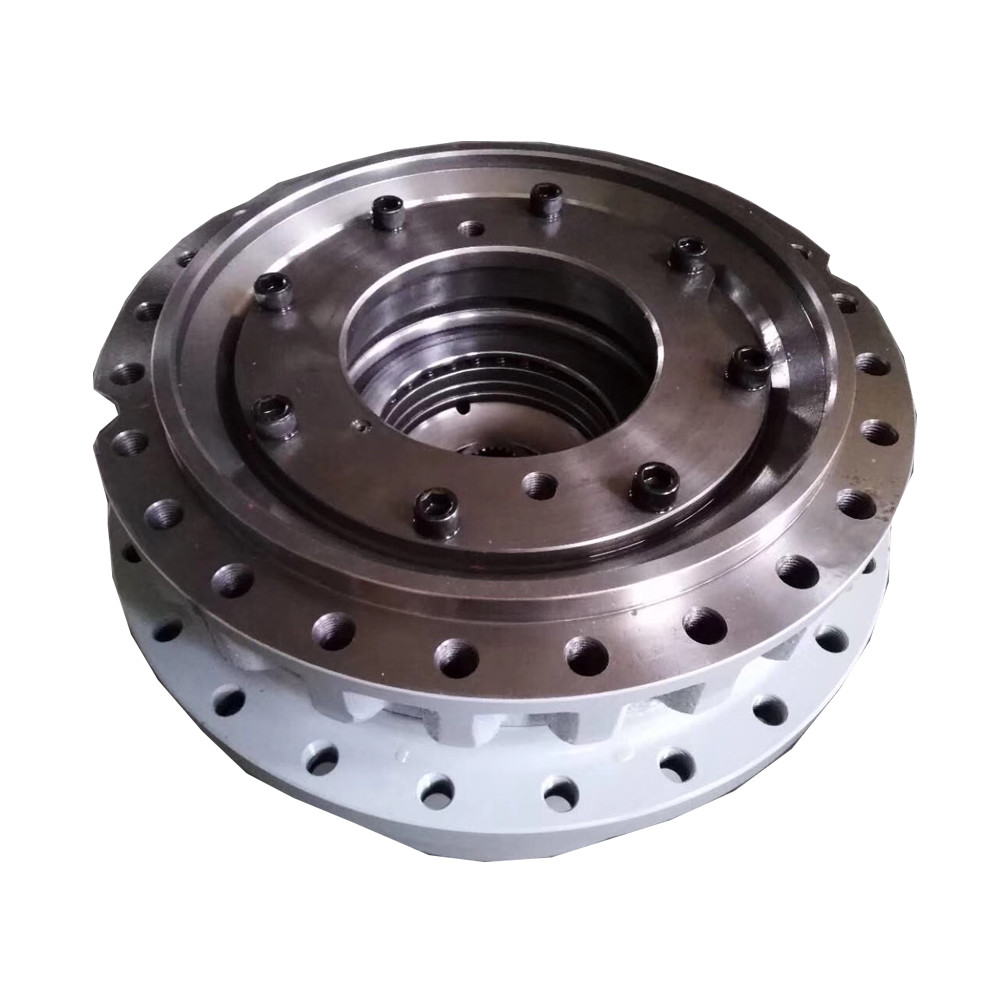

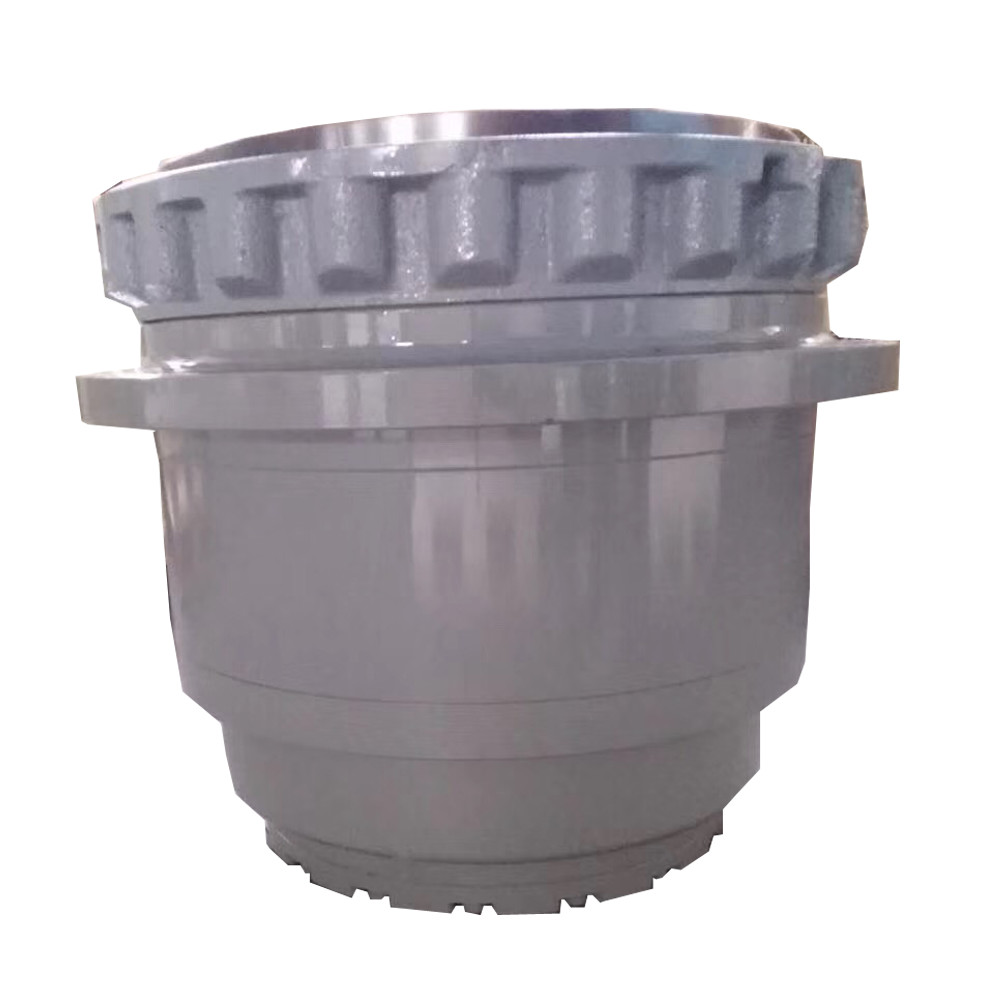

Detailed picture
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| VOE14531093 | [1] | Reduction Gear | S/N 10001-11952 . | |
| VOE14608847 | [1] | Reduction Gear | S/N 11953- . | |
| 1. | SA8230-09980 | [1] | Cover | S/N 10001-11952 . |
| VOE14604651 | [1] | Cover | . | |
| 2. | [1] | Cover | ||
| 3. | [1] | Ring | ||
| 4. | [1] | Ring | ||
| 5. | VOE11701193 | [1] | Friction washer | . |
| 6. | VOE14262071 | [2] | Plug | . |
| 7. | VOE11701192 | [1] | O-ring | . |
| 8. | VOE14262070 | [2] | Washer | . |
| 9. | VOE14541740 | [16] | Screw | . |
| 10. | VOE11706896 | [1] | Reduction gear | . |
| 11. | SA8230-21320 | [1] | Ring | . |
| 12. | VOE14541726 | [3] | Clip | . |
| 13. | SA8230-21130 | [3] | Planetary Gear | . |
| 14. | SA8230-22070 | [3] | Roller bearing | . |
| 15. | VOE14541741 | [1] | . | |
| 16. | SA8230-35760 | [1] | Reduction gear | . |
| 17. | SA8230-21310 | [1] | Ring | . |
| 18. | VOE14541743 | [4] | Clip | . |
| 19. | SA8230-21170 | [4] | Planetary Gear | . |
| 20. | SA8230-22080 | [4] | Roller bearing | . |
| 21. | VOE14541742 | [1] | . | |
| 22. | VOE14608963 | [1] | Planet carrier | . |
| 23. | SA8230-35600 | [4] | Bushing | . |
| 24. | VOE14604652 | [4] | Screw | S/N 10001-11952 . |
| VOE14608962 | [4] | Screw | . | |
| 25. | SA8230-22290 | [4] | Screw | . |
| 26. | SA8230-22110 | [4] | O-ring | . |
| 27. | SA8230-35430 | [1] | Screw | . |
| 28. | SA8230-35780 | [1] | Housing | . |
| 29. | VOE14541746 | [1] | Bushing | . |
| 30. | VOE14541747 | [1] | Spacer | . |
| 31. | VOE14541748 | [2] | O-ring | . |
| 32. | [1] | Bearing | ||
| 33. | VOE14541745 | [1] | . | |
| 34. | VOE11706895 | [1] | Sun gear | . |
| 35. | SA8230-35550 | [1] | Sun gear | . |
| 36. | SA8230-35560 | [1] | Sun gear | . |
| 37. | VOE15175856 | [1] | Ring | . |
| 38. | SA8230-35510 | [1] | Hub | S/N 10001-11660 . |
| 38. | VOE15156998 | [1] | Kit | . |
| 38. | VOE14604655 | [1] | Adapter | . |
| 38. | VOE14604802 | [1] | Hub | S/N 11661- . |
| 39. | VOE14535329 | [1] | Retainer | S/N 10001-11660 . |
| 40. | SA8230-35520 | [1] | Shaft | . |
| 41. | VOE11701198 | [1] | O-ring | . |
| 42. | SA8230-35640 | [7] | Disc | S/N 10001-11660 . |
| VOE14604484 | [7] | Disc | S/N 11661- . | |
| 43. | SA8230-35630 | [6] | Ring | . |
| 44. | SA8230-22380 | [1] | Ring | . |
| 45. | SA8230-22170 | [1] | O-ring | . |
| 46. | SA8230-22180 | [1] | O-ring | . |
| 47. | SA8230-22390 | [1] | Ring | . |
| 48. | VOE14604654 | [1] | Piston | . |
| 49. | VOE11702537 | [21] | Spring | . |
| 50. | SA8230-35590 | [1] | Spacer | . |
| 51. | SA8230-35420 | [1] | Clip | . |
| 52. | SA8230-35570 | [1] | Adapter | S/N 10001-11660 . |
| VOE14604655 | [1] | Adapter | S/N 11661- . | |
| 53. | VOE11707954 | [1] | O-ring | . |
| 54. | SA8230-22050 | [2] | Screw | . |
| 55. | VOE14604803 | [1] | Clip | . |
Our advantage.
1.All products will be well packed before shipping.
2.Reply your inquiry in 24 working hours.
3.As an honest sellers,we aways use high quality material, advanced machines, skilled technicians to ensure quality
4.We have the best after-sales service.
FAQ
Q: When will ship my order?
A:Once we get confirmation of payment, we will try our best to ship order within 24 hours.
Q: Which shipping term you can supply?
A:By sea, air or by express ( DHL, Fedex, TNT, UPS, EMS)
Q: How long does it take to my address?
A:The Normal delivery time is 4-7 days, depending on which country you are in.
Q: How can I trace my order?
A:We will send you the tracking number by email.
Q: If I am not satisfied with the products, can I returns goods?
A:Yes, we offer exchange and repair service under warranty. Please contact us before you return.
